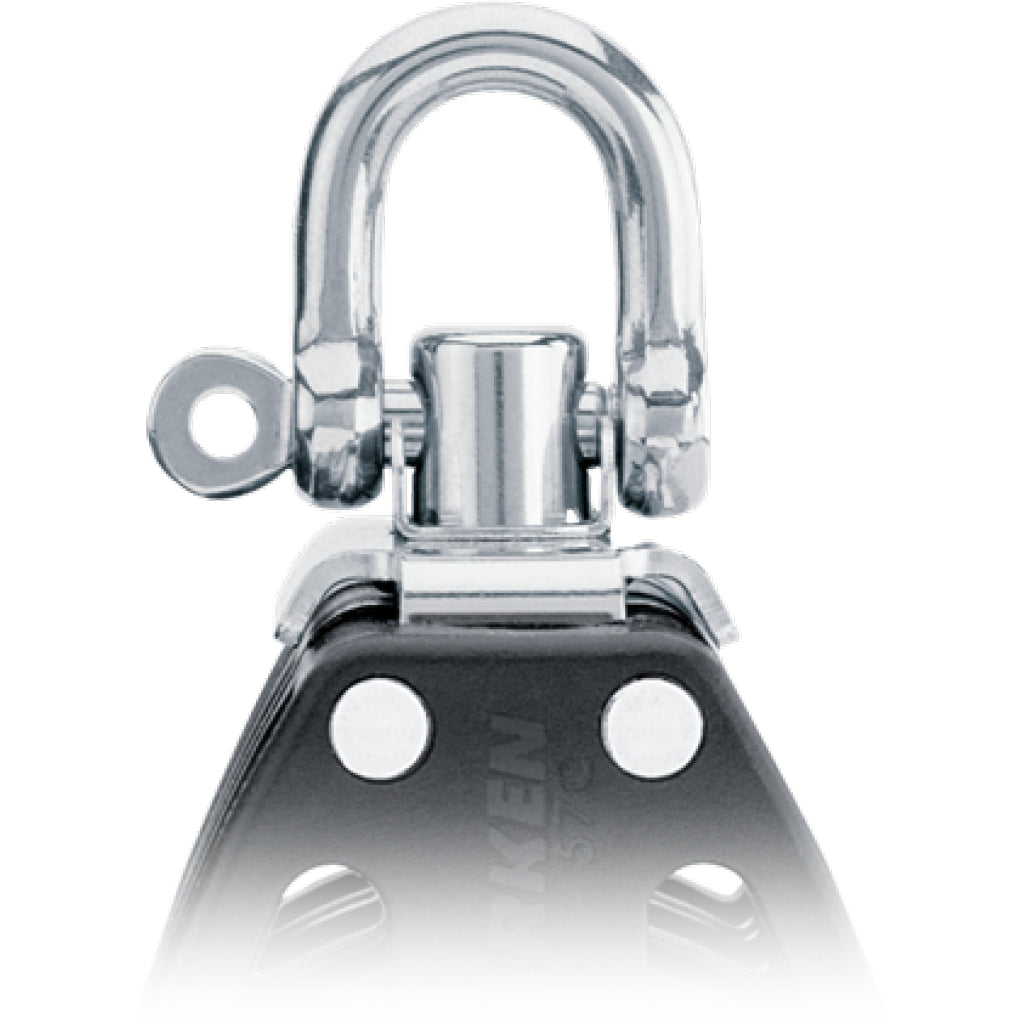

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.

Specifications

• Footnote: Maximum working loads and breaking loads for blocks based on cam strengths.
• Sheave Ø (mm): 40 mm
• Sheave Ø (in): 1 9/16 in
• Length (mm): 94 mm
• Length (in): 3 11/16 in
• Weight (g): 242 g
• Weight (oz): 8.5 oz
• Shackle pin Ø (mm): 6 mm
• Shackle pin Ø (in): 1/4 in
• Maximum line Ø (mm): 5 mm
• Maximum line Ø (in): 3/16 in
• Maximum working load (kg): 340 kg
• Maximum working load (lb): 750 lb
• Breaking load (kg): 680 kg
• Breaking load (lb): 1500 lb
