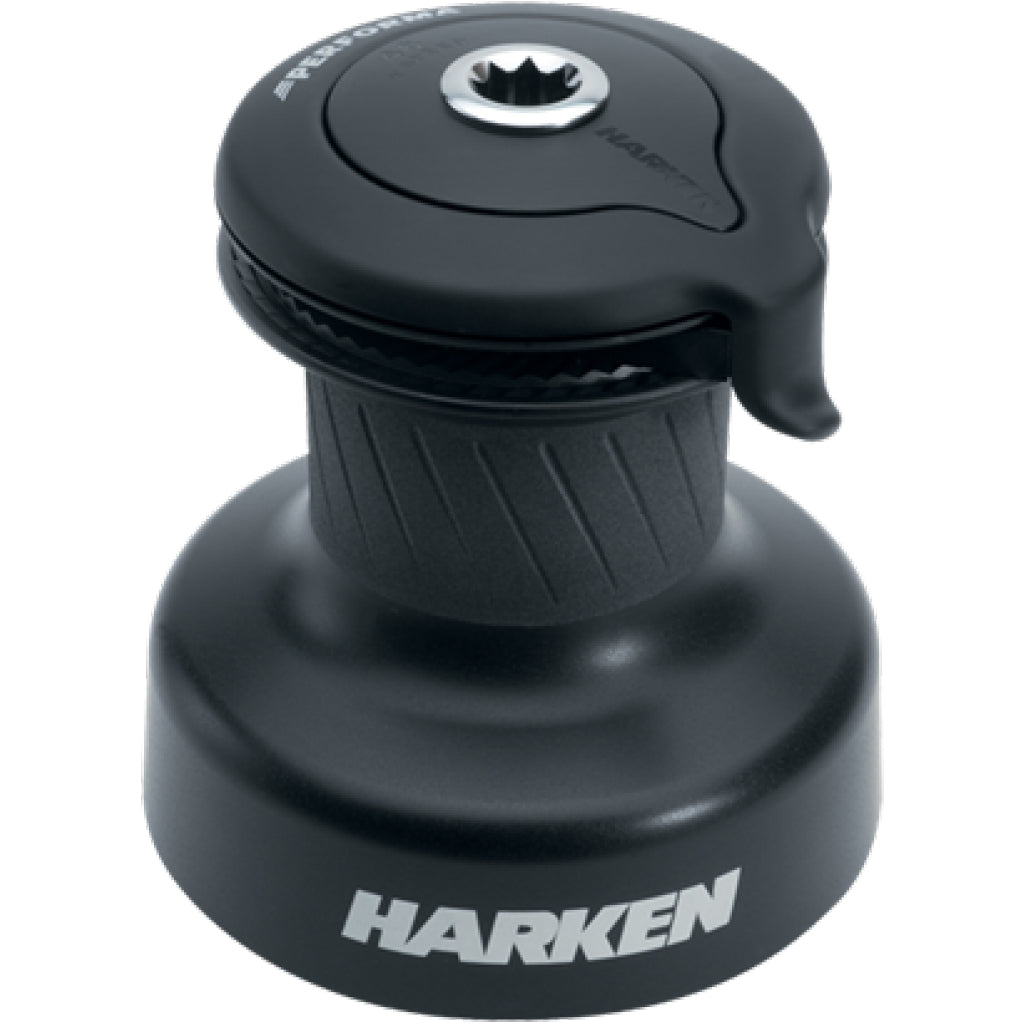

Harken 46 2-Speed Self-Tailing Performa Winch

$1,947.99
Item Number: 46.2STP

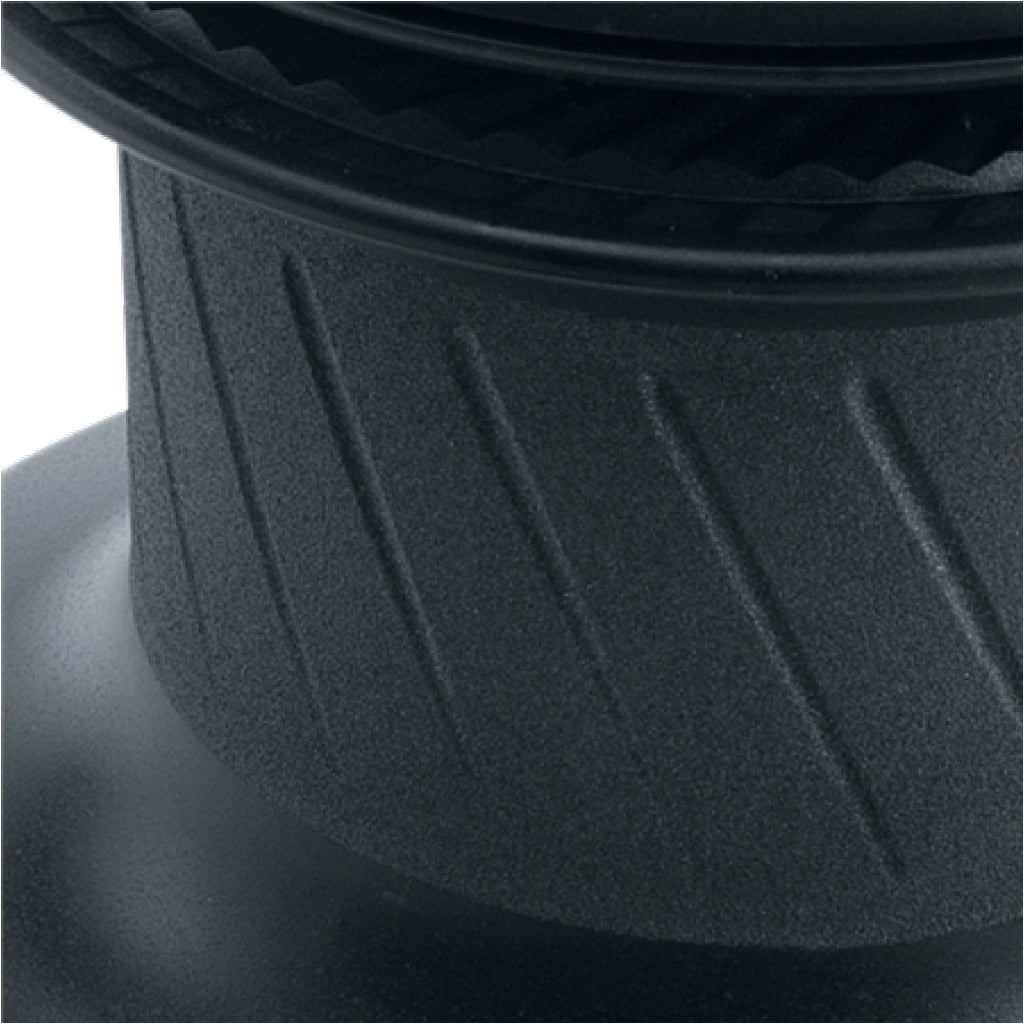

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line.

Self-tailing winches have narrow composite jaws to ensure superior holding power on small-diameter line.

The self-tailing mechanism on the winch means that one crew member can quickly and easily trim or raise sails.

Specifications

  • Configuration: Self-tailing
  • Speed: 2
  • Drum Ø (mm): 100 mm
  • Drum Ø (in): 3 15/16 in
  • Base Ø (mm): 184 mm
  • Base Ø (in): 7 1/4 in
  • Height (mm): 202 mm
  • Height (in): 7 15/16 in
  • Weight (kg): 5.2 kg
  • Weight (lb): 11.5 lb
  • Line entry height (mm): 90 mm
  • Line entry height (in): 3 9/16 in
  • Minimum line Ø (mm): 8 mm
  • Minimum line Ø (in): 5/16 in
  • Maximum line Ø (mm): 14 mm
  • Maximum line Ø (in): 9/16 in
  • Fastener circle (in): 5 7/8 in
  • Fastener circle (mm): 150 mm
  • Fasteners (mm): M8 HH, M8 SH mm
  • Fasteners (in): 5/16 HH, 5/16 SH in
  • Number of fasteners: 5
  • Gear ratio - 1: 2.30
  • Gear ratio - 2: 9.17
  • Power ratio - 1: 11.70
  • Power ratio - 2: 46.50
