Harken 46 Self-Tailing Quattro Performa Winch

SKU# 46STQP
$2,25499
Check Delivery Time

Harken 46 Self-Tailing Quattro Performa Winch may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

2 drum, 2 speed

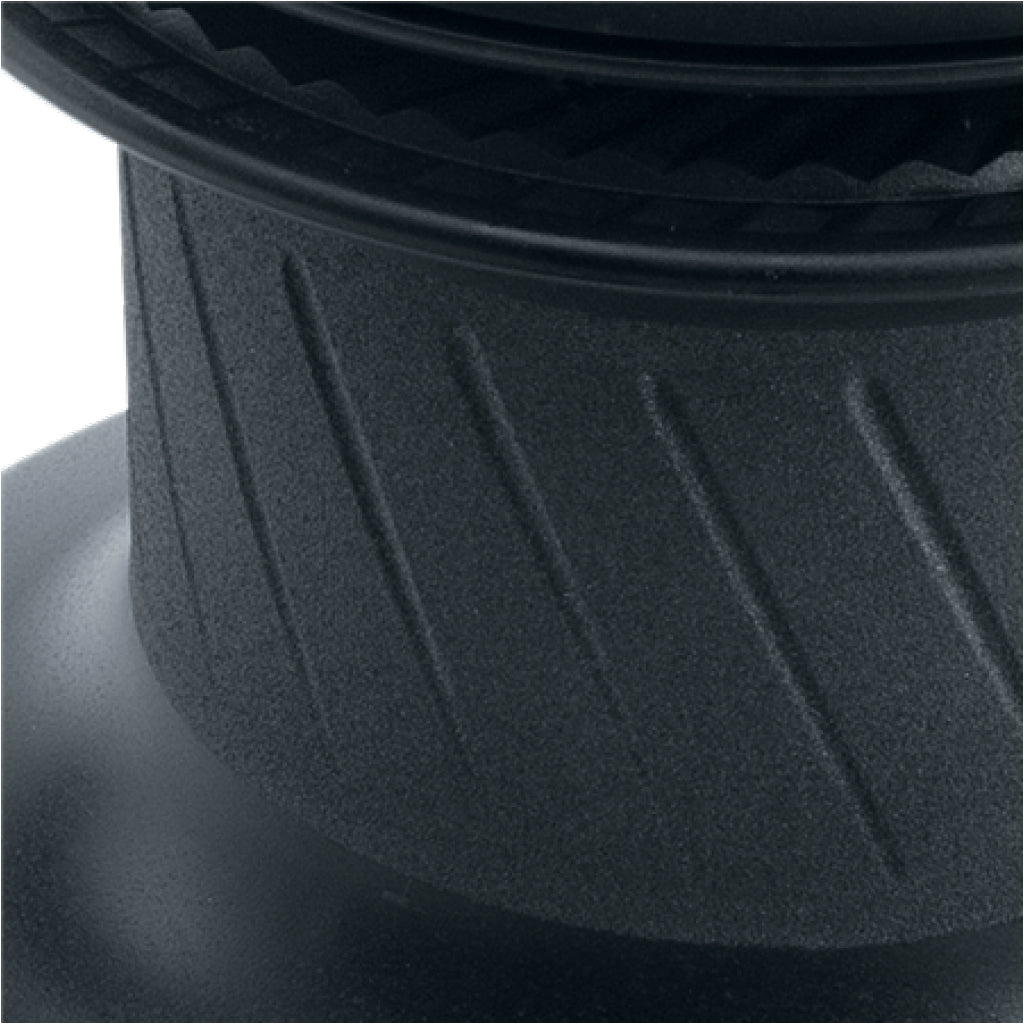

All Performa™ winches feature sandblasted drums optimized for halyard and sheeting applications using small-diameter, high-tech line.

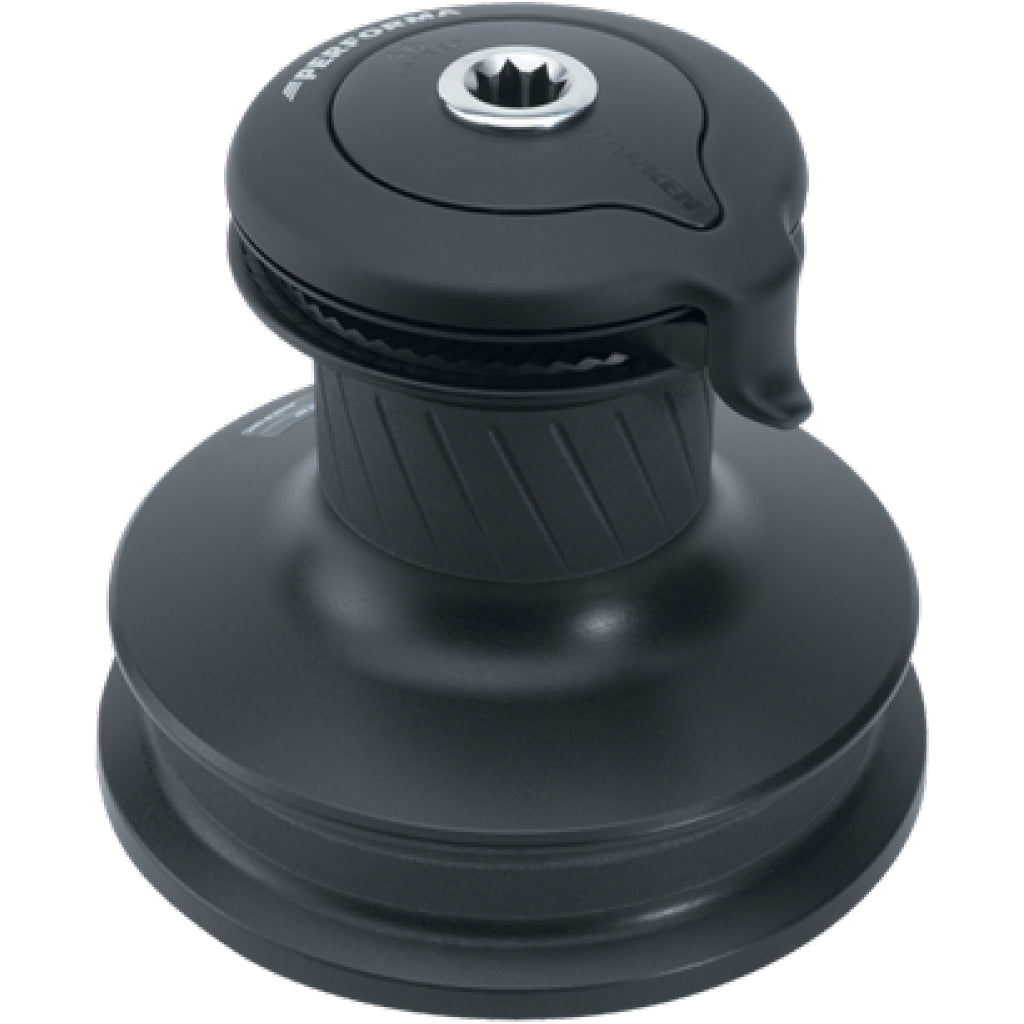

The Quattro model is an all-in-one aluminum winch used on boats that require extremely fast winches to handle large asymmetrical spinnakers, but also need power to trim the genoa upwind.

The 2-speed Quattro features two drum diameters and four line speeds.

Specifications

  • Configuration: Quattro
  • Speed: 2
  • Drum Ø (mm): 100 mm
  • Drum Ø (in): 3 15/16 in
  • Drum Ø lower (mm): 188 mm
  • Drum Ø lower (in): 7 13/32 in
  • Base Ø (mm): 218 mm
  • Base Ø (in): 8 1/2 in
  • Height (mm): 202 mm
  • Height (in): 7 15/16 in
  • Weight (kg): 6.2 kg
  • Weight (lb): 13.7 lb
  • Line entry height (mm): 90 mm
  • Line entry height (in): 3 9/16 in
  • Line entry height lower (mm): 24 mm
  • Line entry height lower (in): 15/16 in
  • Minimum line Ø (mm): 8 mm
  • Minimum line Ø (in): 5/16 in
  • Maximum line Ø (mm): 14 mm
  • Maximum line Ø (in): 9/16 in
  • Fastener circle (in): 5 7/8 in
  • Fastener circle (mm): 150 mm
  • Fasteners (mm): M8 HH, M8 SH mm
  • Fasteners (in): 5/16 HH, 5/16 SH in
  • Number of fasteners: 5
  • Gear ratio - 1: 2.30
  • Gear ratio - 2: 9.17
  • Power ratio - 1: 11.70
  • Power ratio - 2: 46.50
