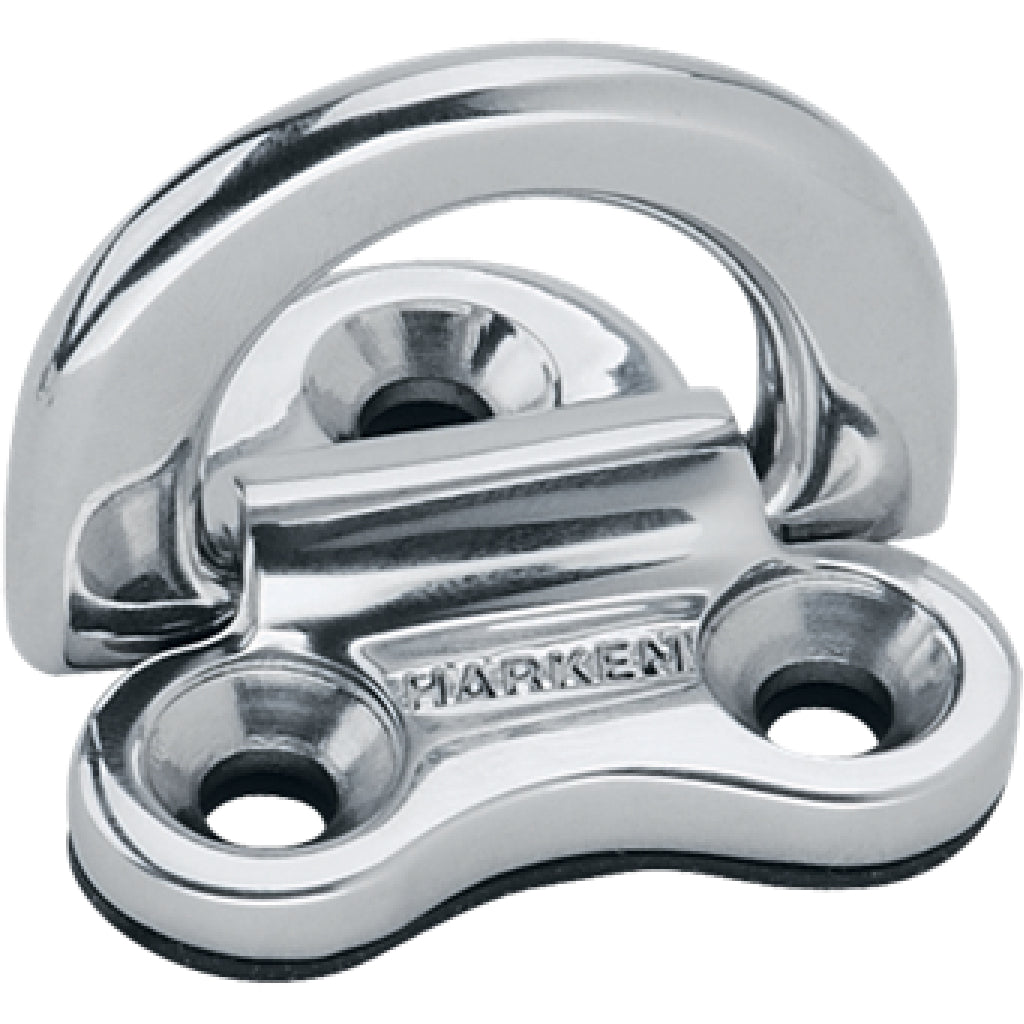

Harken 6mm Folding Padeye

Folding padeyes keep your deck and passageways clear.

They’re ready when you need to attach a snatch block or fender, but fold safely out of the way when you don’t.

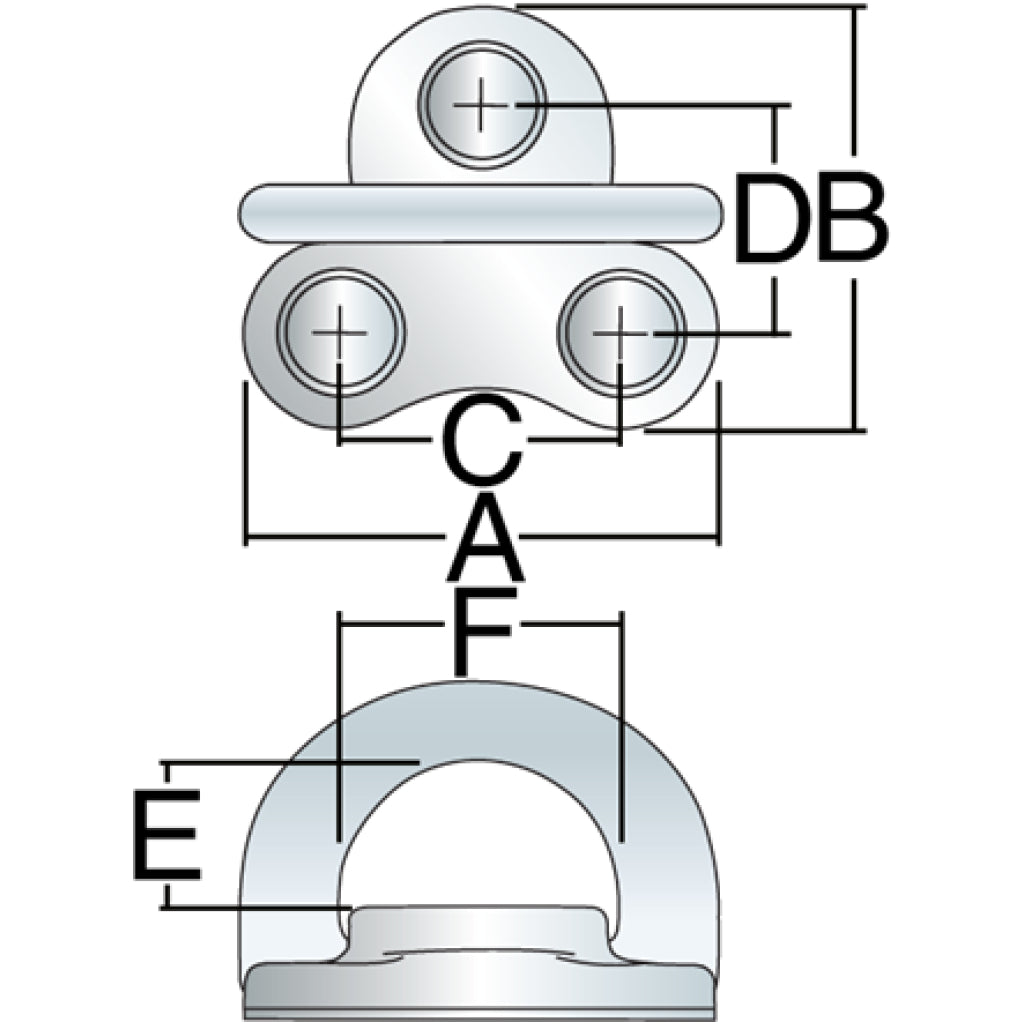

Specifications

• A (mm): 47 mm
• A (in): 1 7/8 in
• B (mm): 41.5 mm
• B (in): 1 5/8 in
• C (mm): 28 mm
• C (in): 1 1/8 in
• D (mm): 23 mm
• D (in): 15/16 in
• E (mm): 14.9 mm
• E (in): 19/32 in
• F (mm): 28 mm
• F (in): 1 1/8 in
• Weight (g): 78 g
• Weight (oz): 2.75 oz
• Maximum working load (kg): 1400 kg
• Maximum working load (lb): 3080 lb
• Breaking load (kg): 2800 kg
• Breaking load (lb): 6160 lb
• Fasteners (mm): 6 FH mm
• Fasteners (in): 1/4 FH in
