Harken 4mm Shallow Bow Shackle

SKU# 2131
$1099
Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

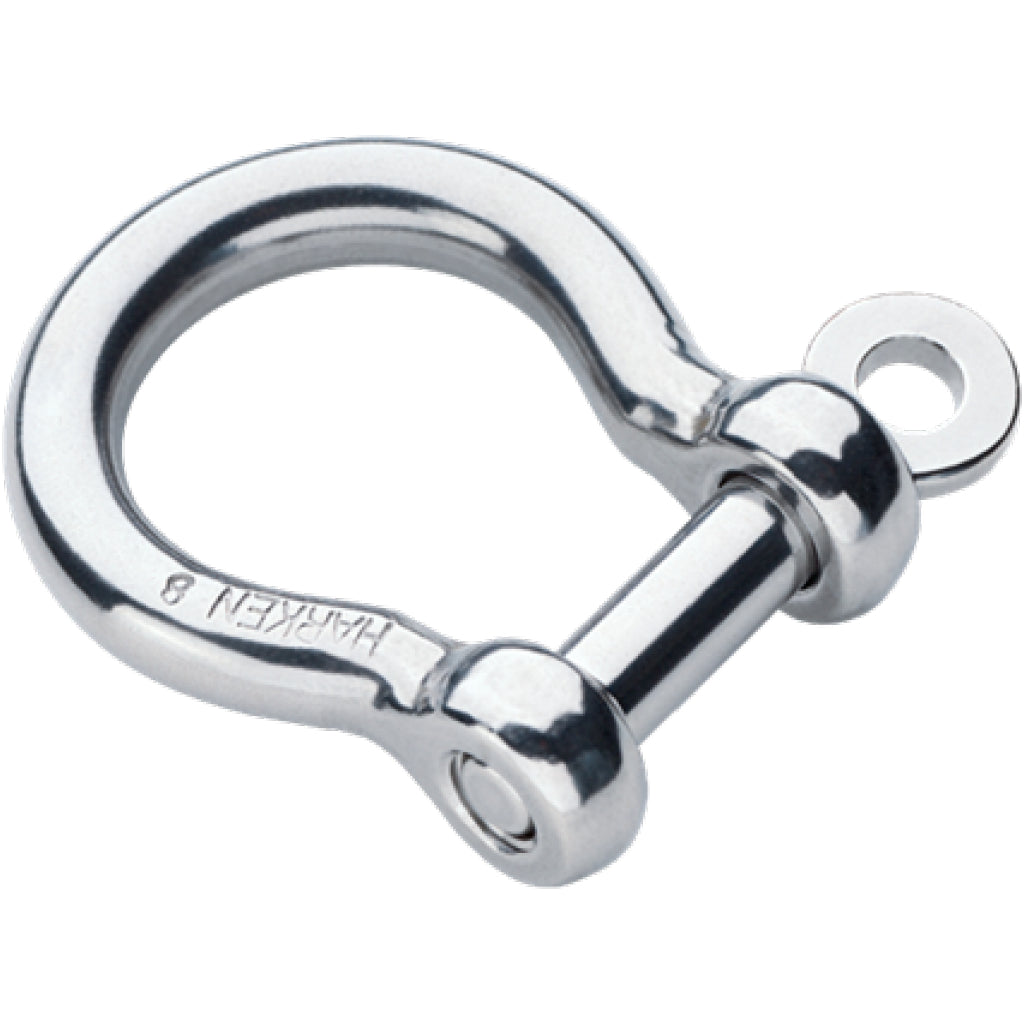

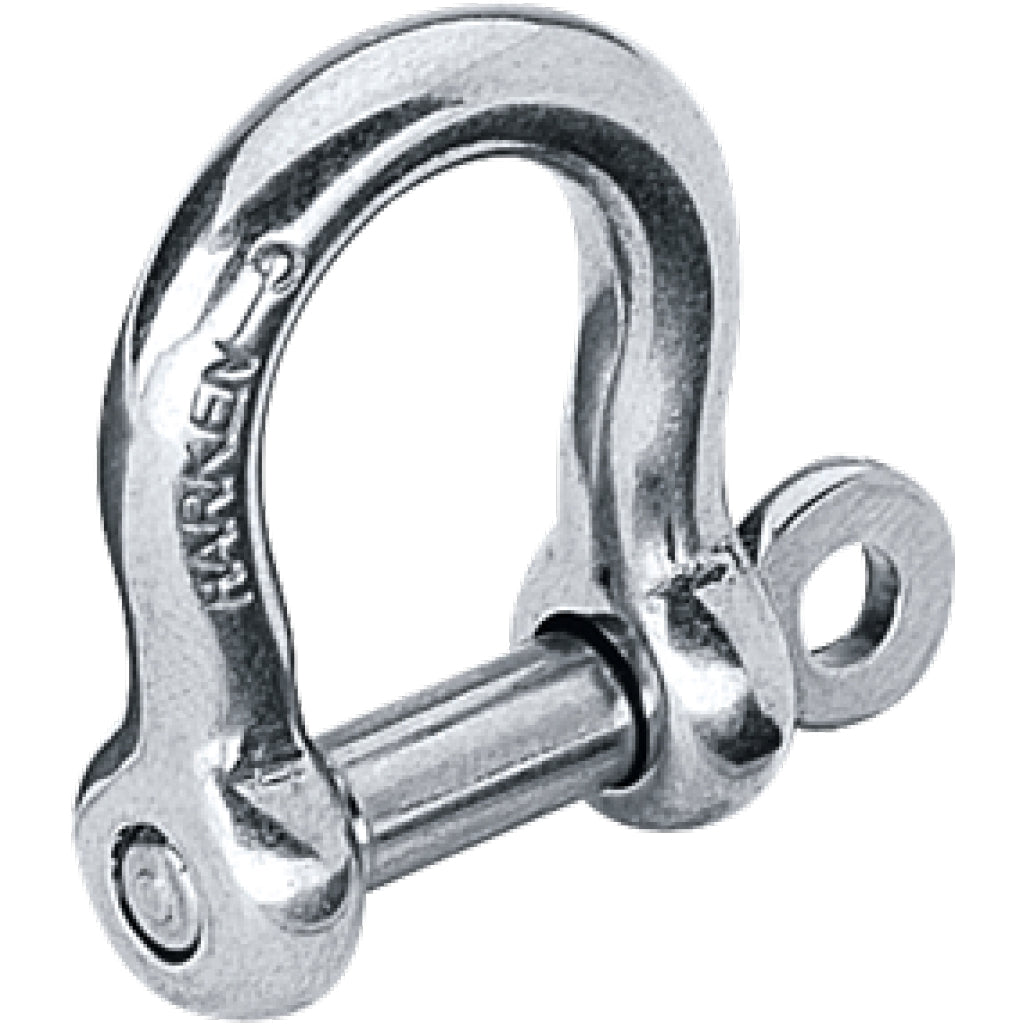

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.

Specifications

  • Shackle pin Ø (mm): 4 mm
  • Shackle pin Ø (in): 5/32 in
  • Weight (g): 8.5 g
  • Weight (oz): 0.3 oz

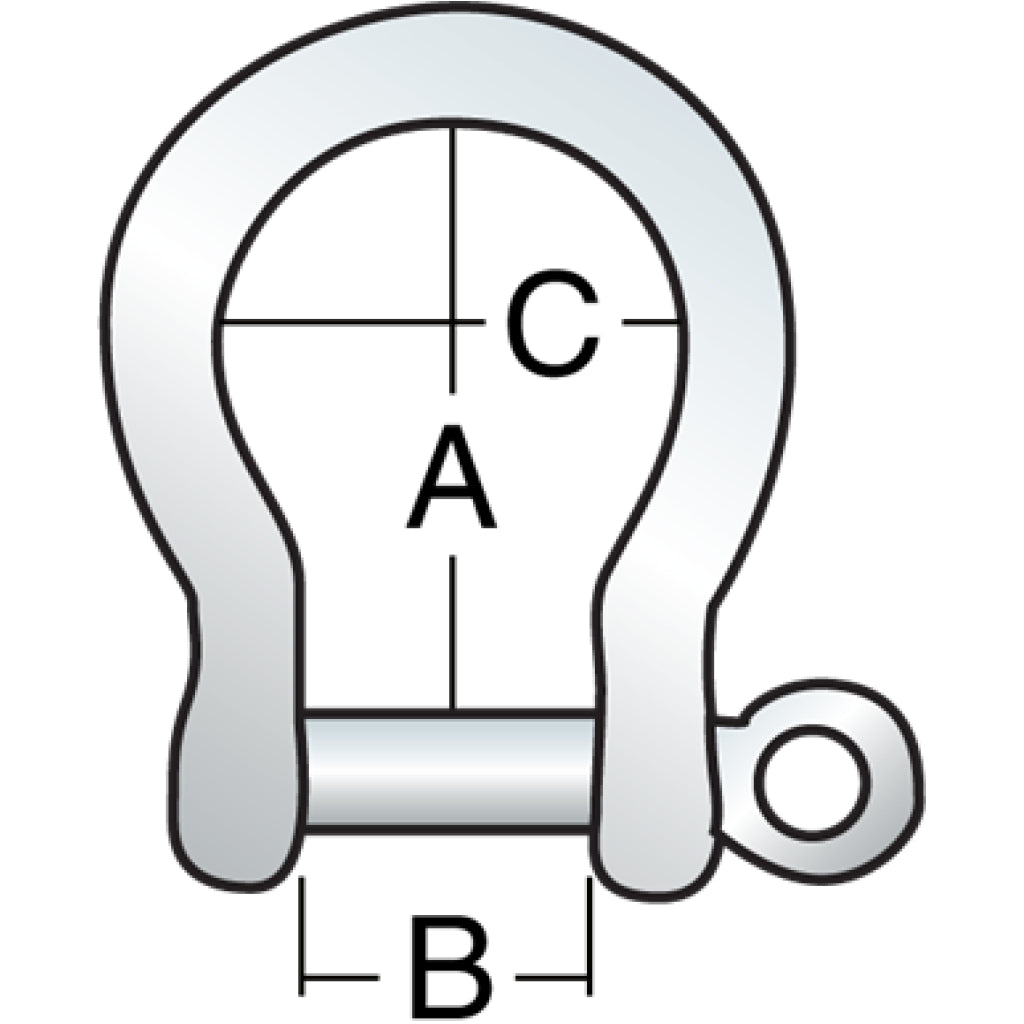

  • A (mm): 16 mm
  • A (in): 5/8 in
  • B (mm): 8 mm
  • B (in): 5/16 in
  • C (mm): 11 mm
  • C (in): 7/16 in
  • Maximum working load (kg): 367 kg
  • Maximum working load (lb): 810 lb
  • Breaking load (kg): 735 kg
  • Breaking load (lb): 1620 lb
