Harken 56mm Padeye (w/2 Fasteners)

$18.99
Item Number: 2759

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items.

The 2759 is 316 cast stainless steel.

Specifications

  • A (mm): 56 mm
  • A (in): 2 1/4 in
  • B (mm): 18 mm
  • B (in): 3/4 in
  • C (mm): 38 mm
  • C (in): 1 1/2 in
  • E (mm): 26 mm
  • E (in): 1 in
  • F (mm): 15 mm
  • F (in): 9/16 in
  • G (mm): 16 mm
  • G (in): 5/8 in
  • Weight (g): 38 g
  • Weight (oz): 1.3 oz

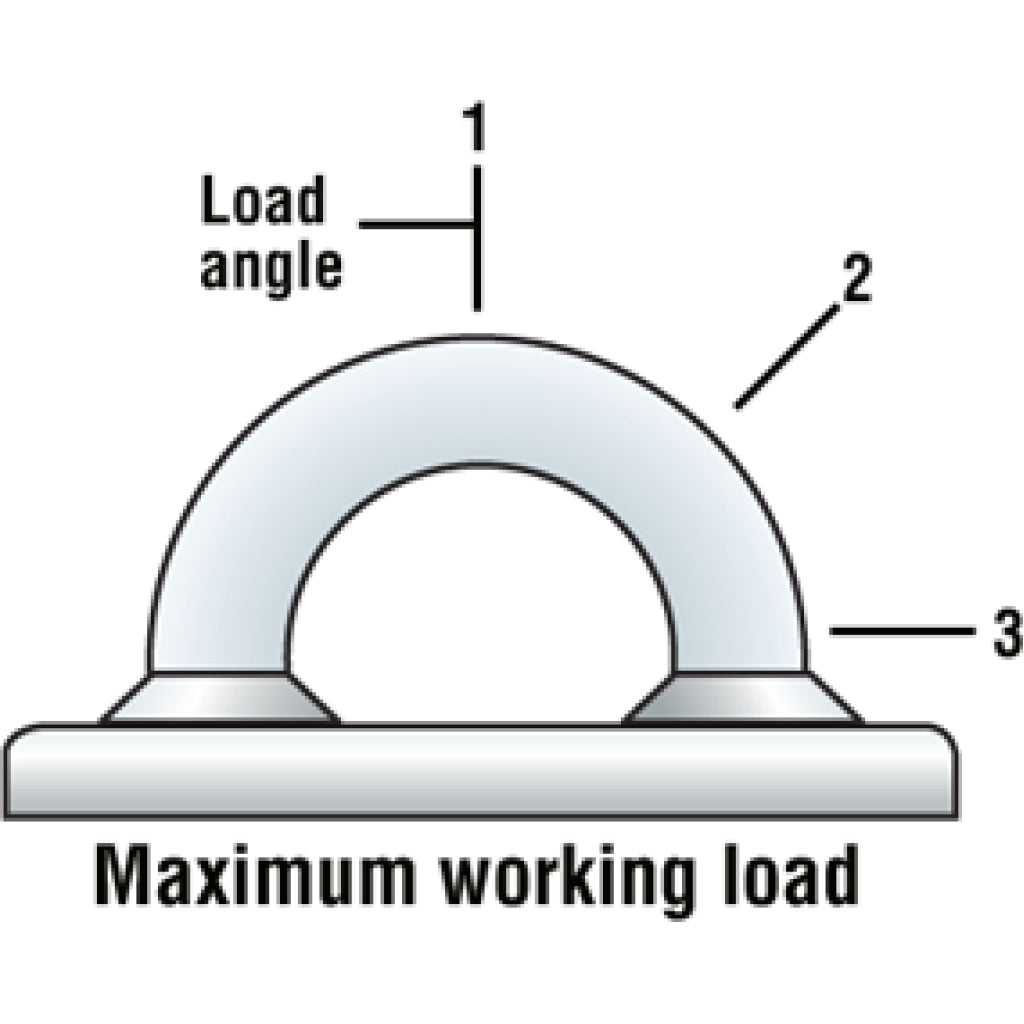

  • Maximum Working Load - angle 1 (kg): 1156 kg
  • Maximum Working Load - angle 1 (lb): 2550 lb
  • Maximum Working Load - angle 2 (kg): 1086 kg
  • Maximum Working Load - angle 2 (lb): 2392 lb
  • Maximum Working Load - angle 3 (kg): 1111 kg
  • Maximum Working Load - angle 3 (lb): 2450 lb
  • Breaking load - angle 1 (kg): 2313 kg
  • Breaking load - angle 1 (lb): 5100 lb
  • Breaking load - angle 2 (kg): 2172 kg
  • Breaking load - angle 2 (lb): 4784 lb
  • Breaking load - angle 3 (kg): 2222 kg
  • Breaking load - angle 3 (lb): 4900 lb
  • Fasteners (mm): 6 mm
  • Fasteners (in): 1/4 in
