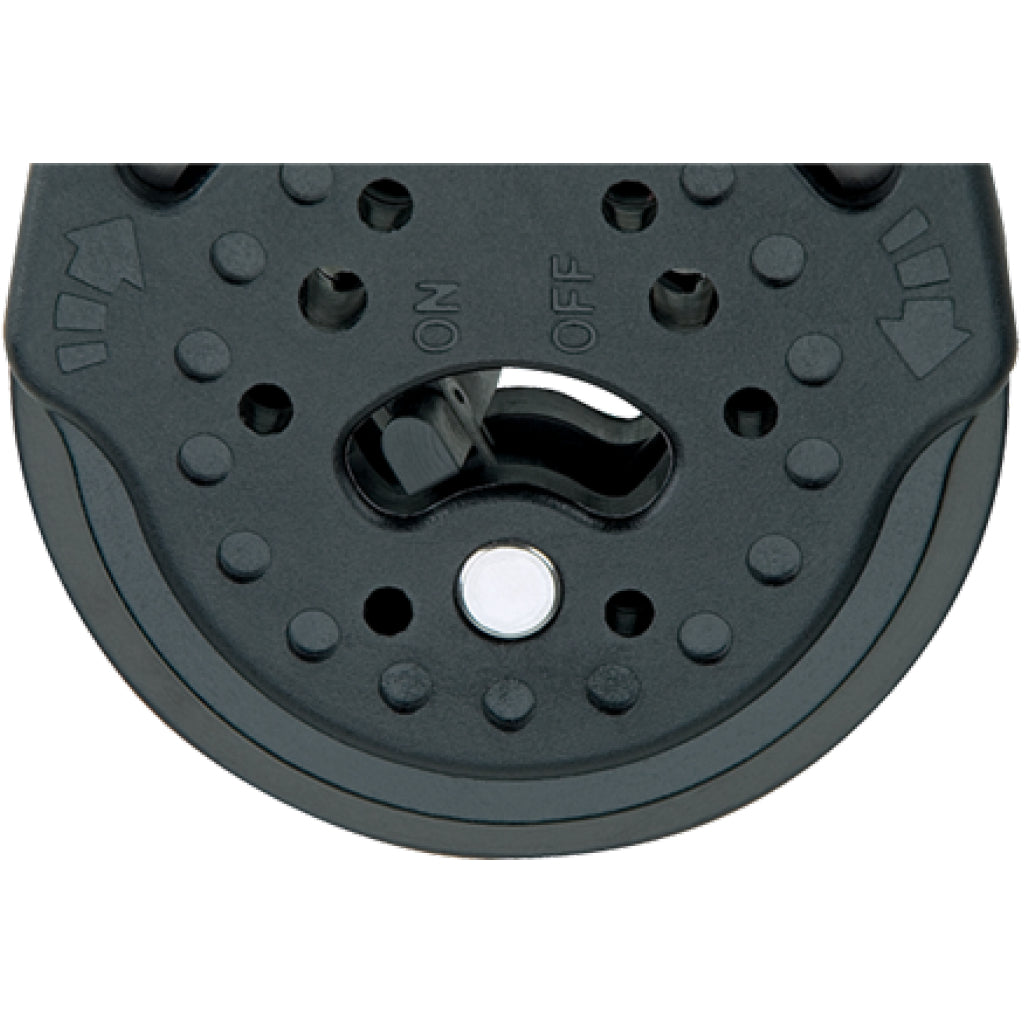

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.
Specifications
- Sheave Ø (mm): 57 mm
- Sheave Ø (in): 2 1/4 in
- Length (mm): 125 mm
- Length (in): 4 15/16 in
- Weight (g): 94 g
- Weight (oz): 3.3 oz
- Shackle pin Ø (mm): 5 mm
- Shackle pin Ø (in): 3/16 in
- Maximum line Ø (mm): 10 mm
- Maximum line Ø (in): 3/8 in
- Maximum working load (kg): 227 kg
- Maximum working load (lb): 500 lb
- Breaking load (kg): 907 kg
- Breaking load (lb): 2000 lb
- Holding power: 10:1
