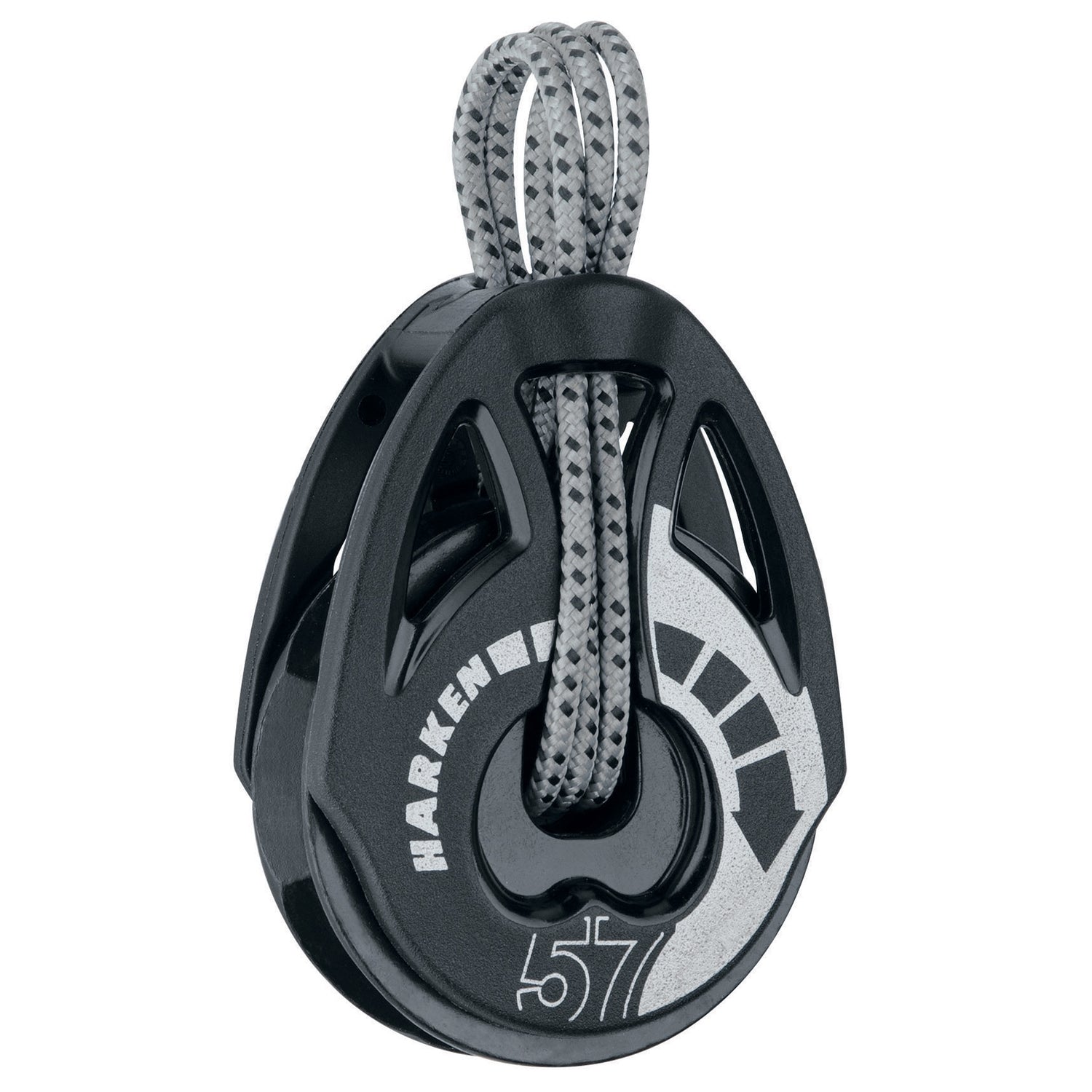

The Harken 57mm T2 Red Sheave Soft-Att. Ratchamatic Block is the latest addition, showcasing the distinct T2 line's design and soft-attachment method. Despite its few ounces in weight, this block boasts high strength due to its composite fiber-reinforced sideplates, hardcoat-anodized aluminum sheave, and lightweight soft-attach. The ratcheting mechanism is streamlined with minimal moving parts. T2 blocks are secured through their load-bearing center, reducing sideplate stress and serving as a system safety backup. This design facilitates ratchet height adjustments close to the deck for optimal lead fairness. The Harken Ratchamatic mechanism seamlessly transitions from free-running to ratchet mode, ensuring sheets run out smoothly and instantly release during maneuvers. Clear, high-contrast markers indicate correct reeving and trimming. Ideal for mainsheet, spinnaker systems on beachcats, dinghies, and sportboats. A Spectra® line with a polyester cover is provided.
medium/light air 10:1 holding power. | |
Sheave Ø (mm) | 57 mm |
Sheave Ø (in) | 2 1/4 in |
Length (mm) | 79 mm |
Length (in) | 3 1/16 in |
Weight (g) | 71 g |
Weight (oz) | 2.5 oz |
Maximum line Ø (mm) | 10 mm |
Maximum line Ø (in) | 3/8 in |
Maximum working load (kg) | 227 kg |
Maximum working load (lb) | 500 lb |
Breaking load (kg) | 907 kg |
Breaking load (lb) | 2000 lb |
Holding power | 10:1 |
