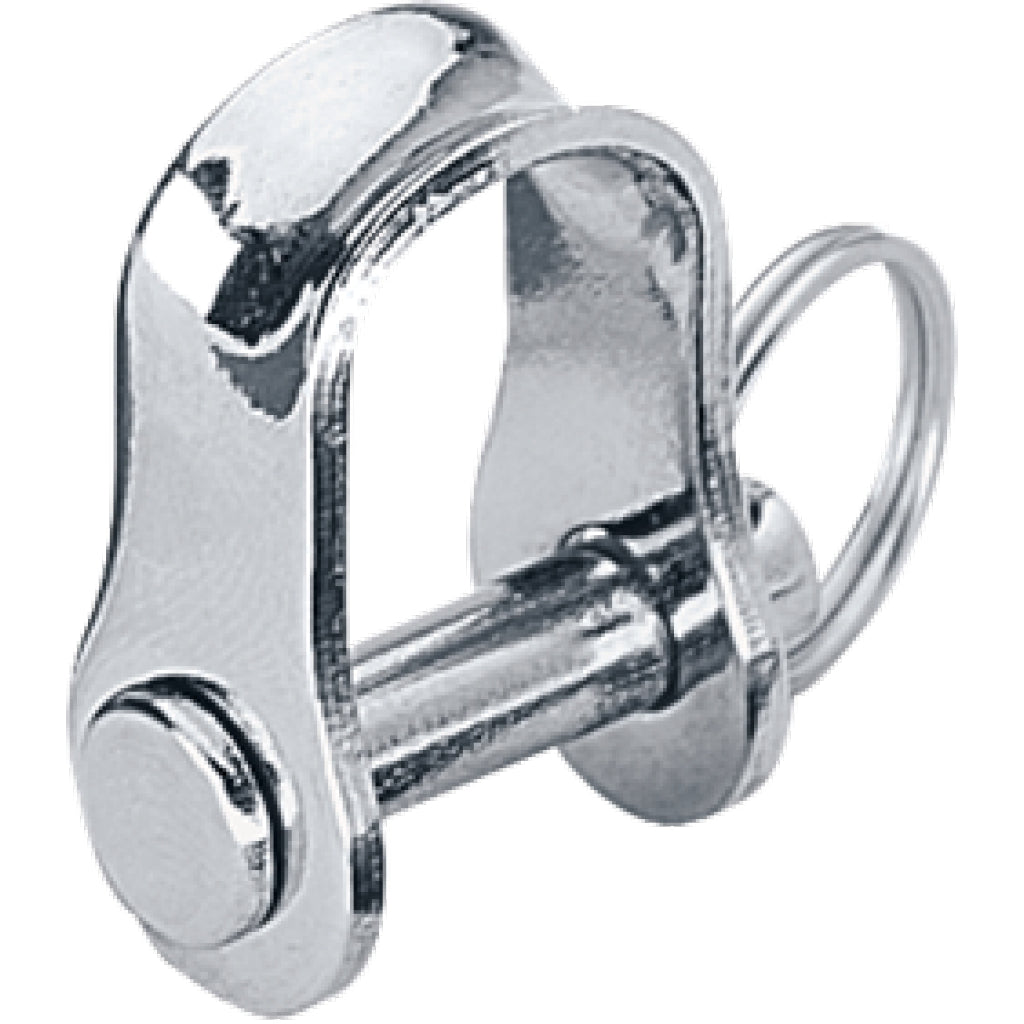

Item Number: 072

Stamped shackles are used on most Harken Small Boat Blocks and are appropriate for low loads. For higher loads, select forged and high-resistance shackles instead.

Specifications

  • Shackle pin Ø (mm): 5 mm
  • Shackle pin Ø (in): 3/16 in
  • Weight (g): 8 g
  • Weight (oz): 0.29 oz

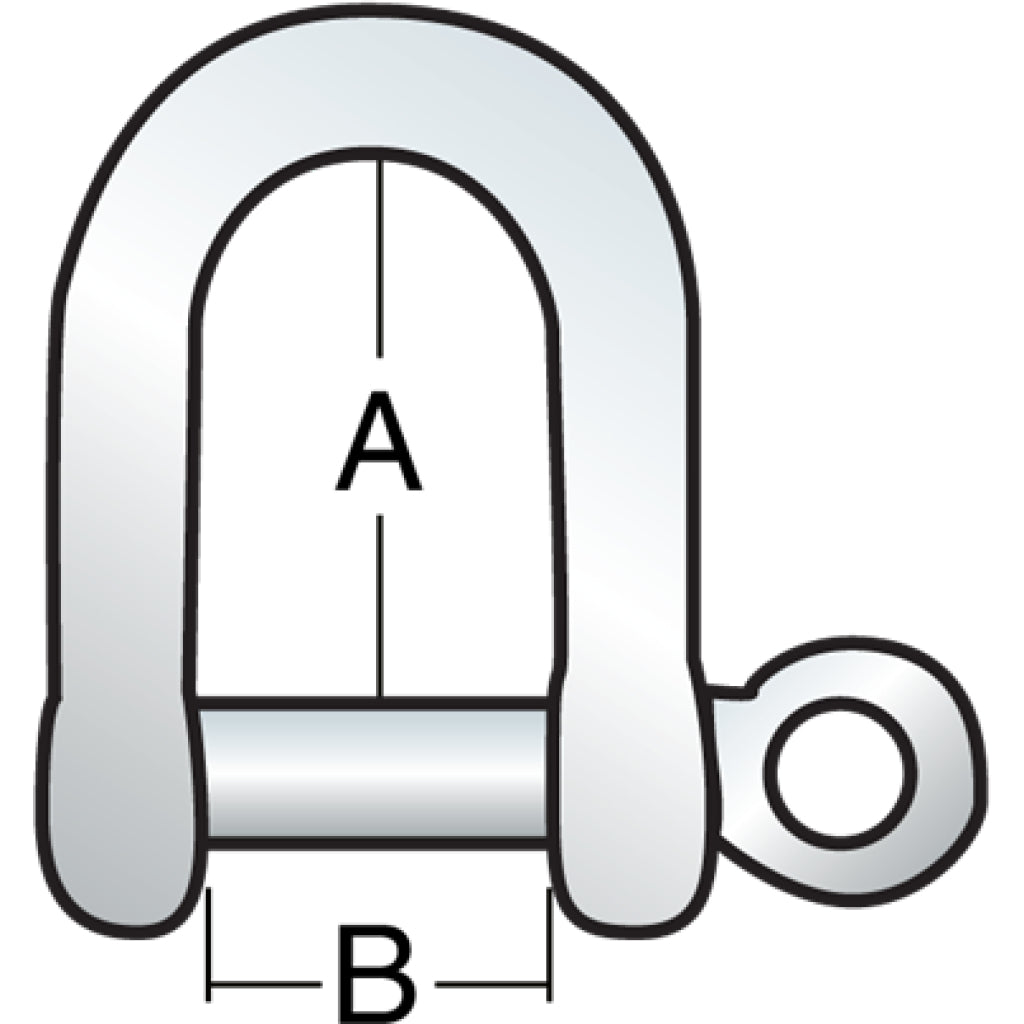

  • A (mm): 12 mm
  • A (in): 1/2 in
  • B (mm): 11 mm
  • B (in): 7/16 in
  • Maximum working load (kg): 567 kg
  • Maximum working load (lb): 1250 lb
  • Breaking load (kg): 1134 kg
  • Breaking load (lb): 2500 lb
