Item Number: 2110

Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.

Specifications

  • Shackle pin Ø (mm): 6 mm
  • Shackle pin Ø (in): 1/4 in
  • Weight (g): 29.5 g
  • Weight (oz): 1.04 oz

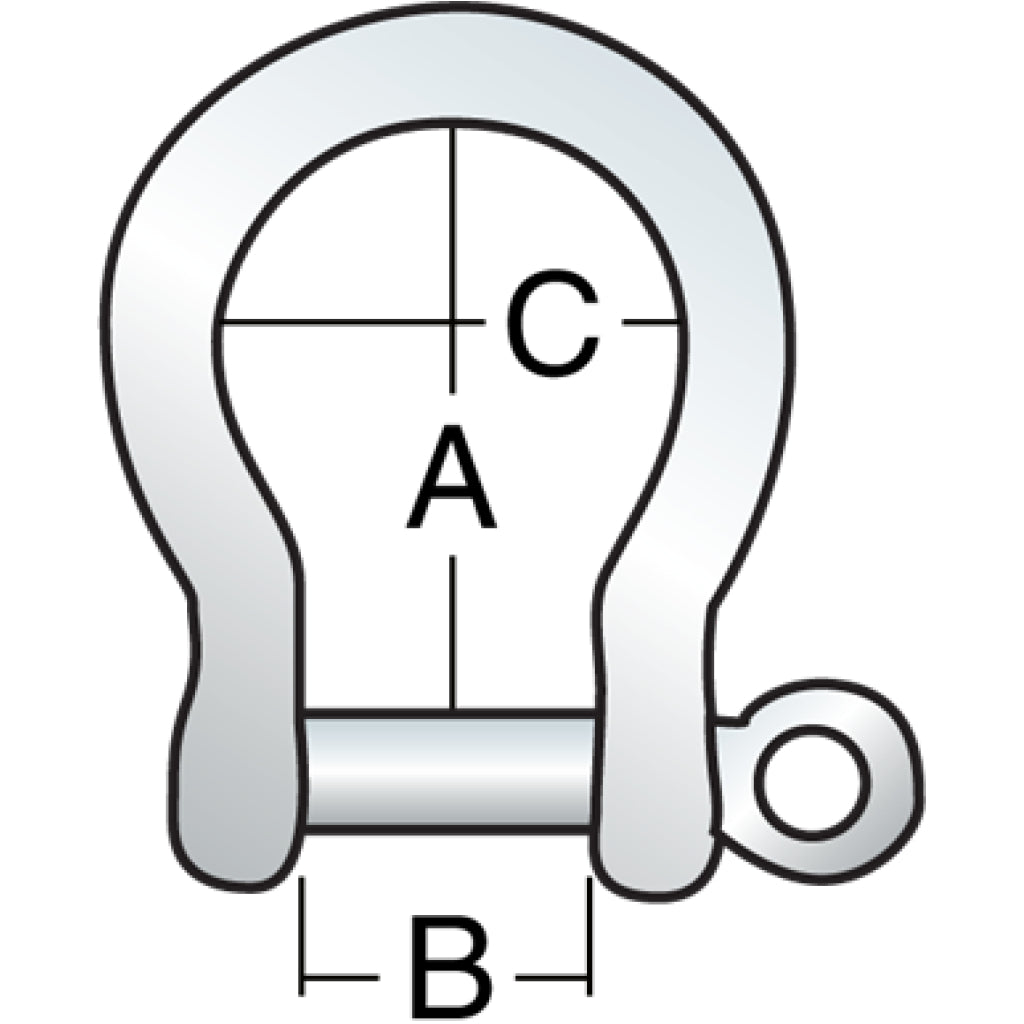

  • A (mm): 27 mm
  • A (in): 1 1/16 in
  • B (mm): 14 mm
  • B (in): 9/16 in
  • C (mm): 19 mm
  • C (in): 3/4 in
  • Maximum working load (kg): 750 kg
  • Maximum working load (lb): 1650 lb
  • Breaking load (kg): 1500 kg
  • Breaking load (lb): 3300 lb
