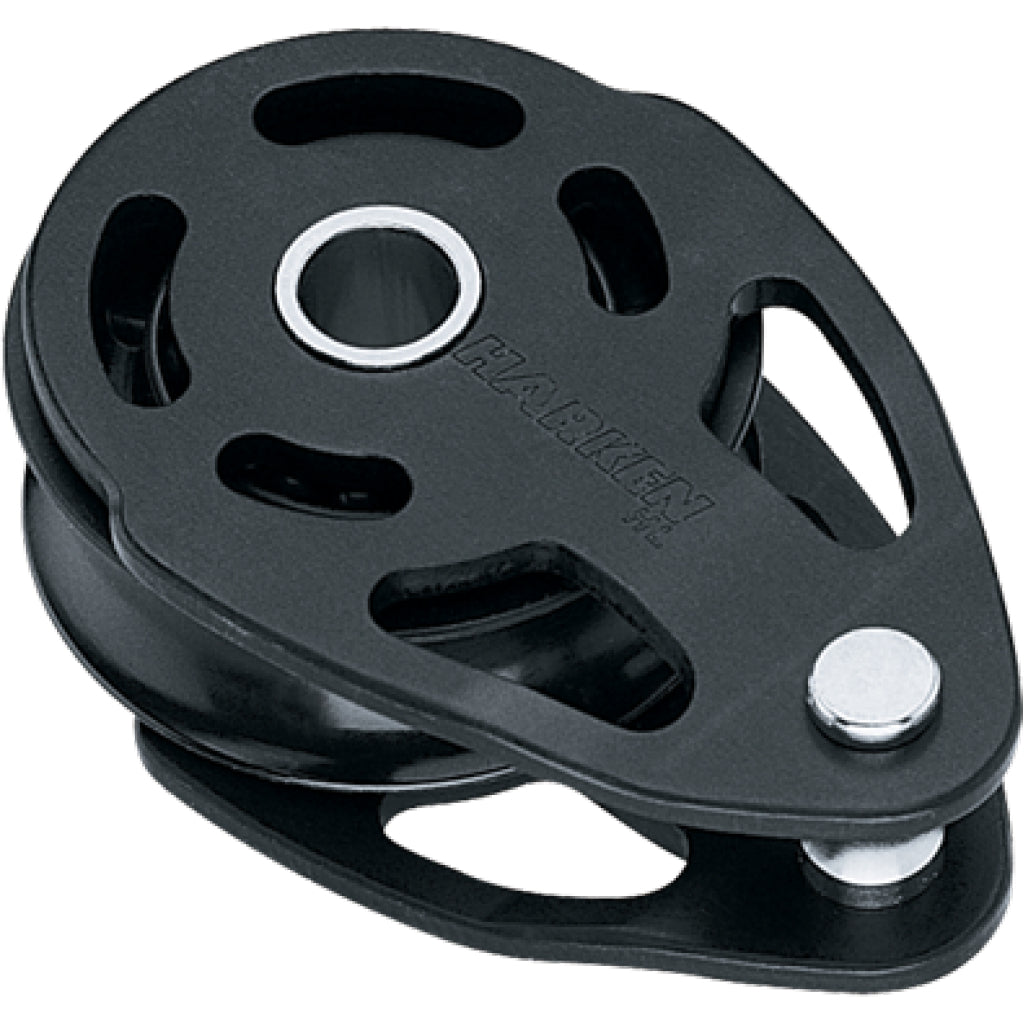

Harken 75mm Aluminum Padeye ESP Block

Cruising ESP blocks complement our existing blocks in looks and function, but are simpler in design and construction.

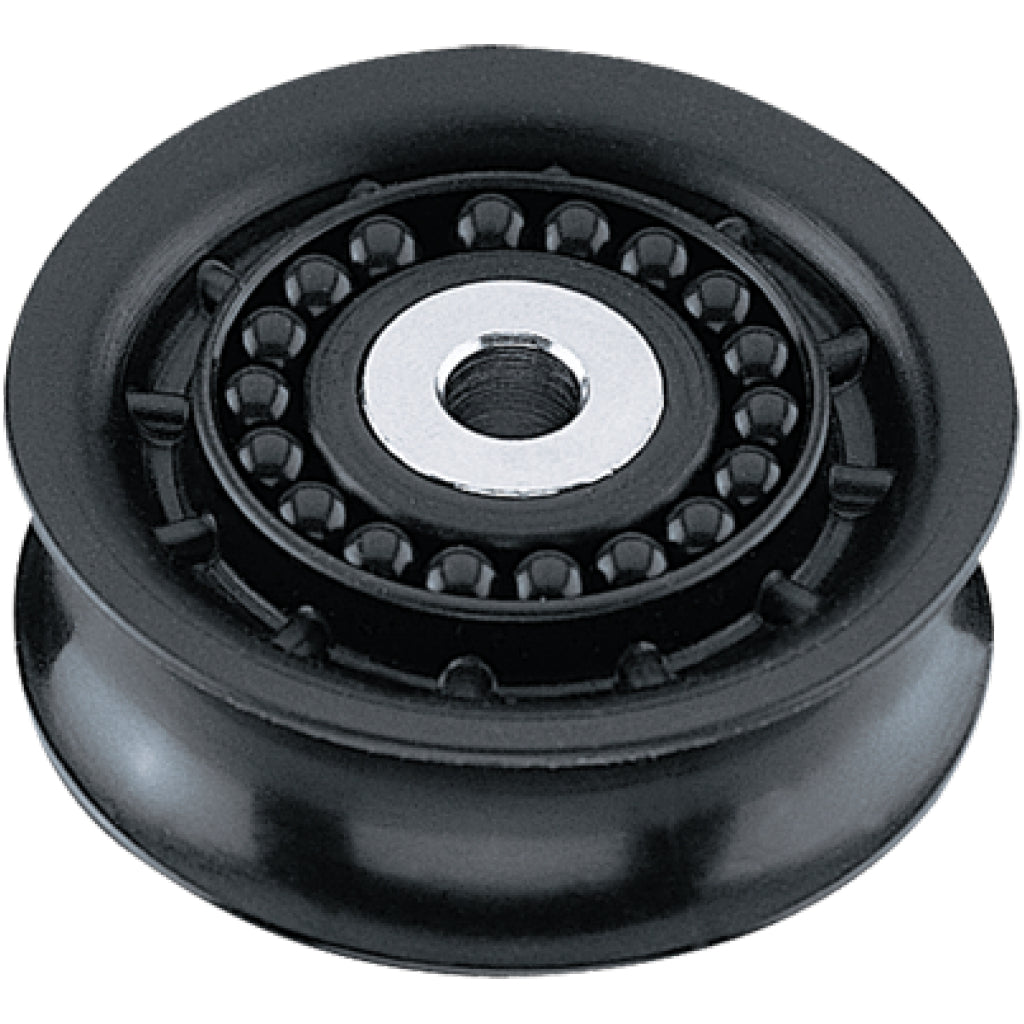

Sheaves feature sleeve bearings to handle high static loads and are ideal for halyards or limited purchase systems on cruising boats.

Specifications

• Sheave Ø (mm): 75 mm
• Sheave Ø (in): 3 in
• Length (mm): 119 mm
• Length (in): 4 11/16 in
• Weight (g): 238 g
• Weight (oz): 8.4 oz
• Clevis pin Ø (mm): 10 mm
• Clevis pin Ø (in): 3/8 in
• Maximum line Ø (mm): 19 mm
• Maximum line Ø (in): 3/4 in
• Maximum working load (kg): 1587 kg
• Maximum working load (lb): 3500 lb
• Breaking load (kg): 3175 kg
• Breaking load (lb): 7000 lb
