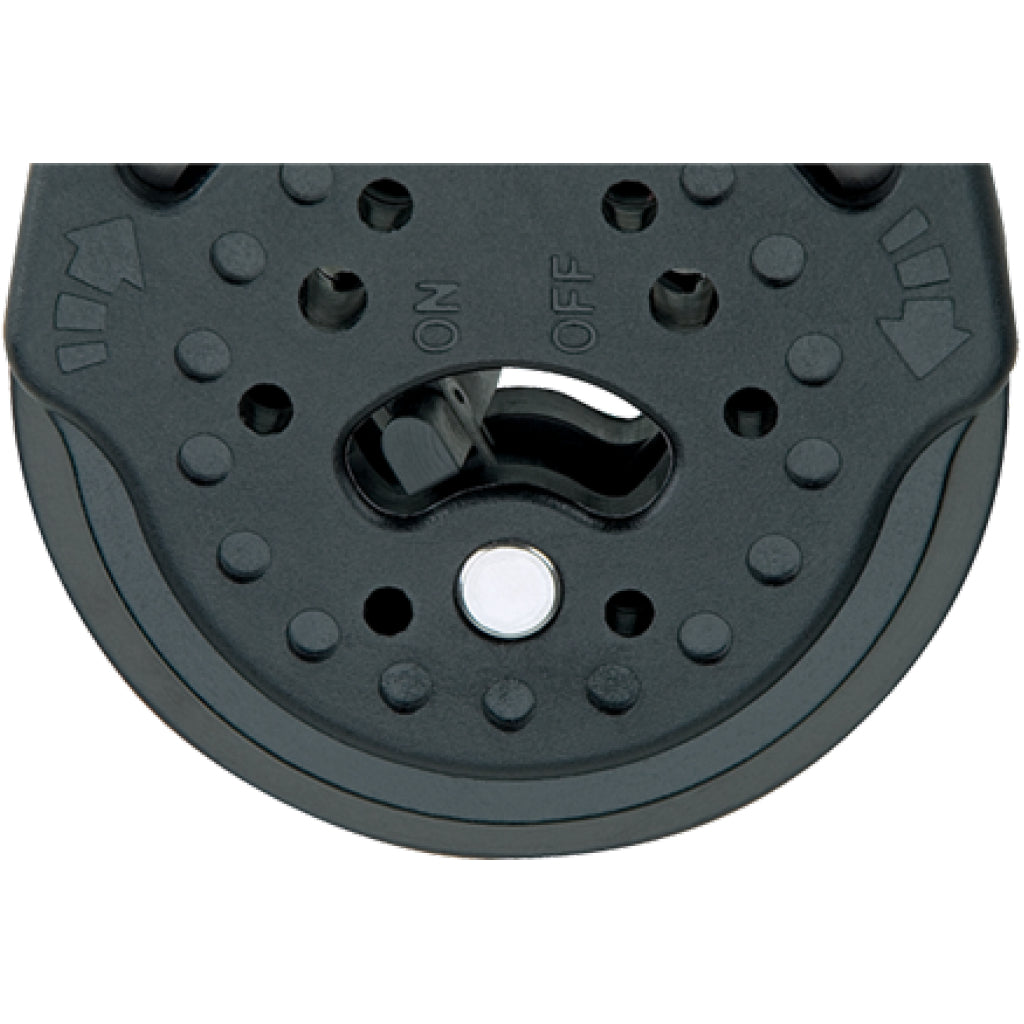

Harken 75mm Single Swivel Ratchet Block

Carbo Ratchets allow sailors to hand-hold loaded lines and offer balance between holding power and controlled easing.

Specifications

• Sheave Ø (mm): 75 mm
• Sheave Ø (in): 2 15/16 in
• Length (mm): 165 mm
• Length (in): 6 1/2 in
• Weight (g): 248 g
• Weight (oz): 8.75 oz
• Shackle pin Ø (mm): 6 mm
• Shackle pin Ø (in): 1/4 in
• Maximum line Ø (mm): 12 mm
• Maximum line Ø (in): 7/16 in
• Maximum working load (kg): 341 kg
• Maximum working load (lb): 750 lb
• Breaking load (kg): 1361 kg
• Breaking load (lb): 3000 lb
• Holding power: 15:1
