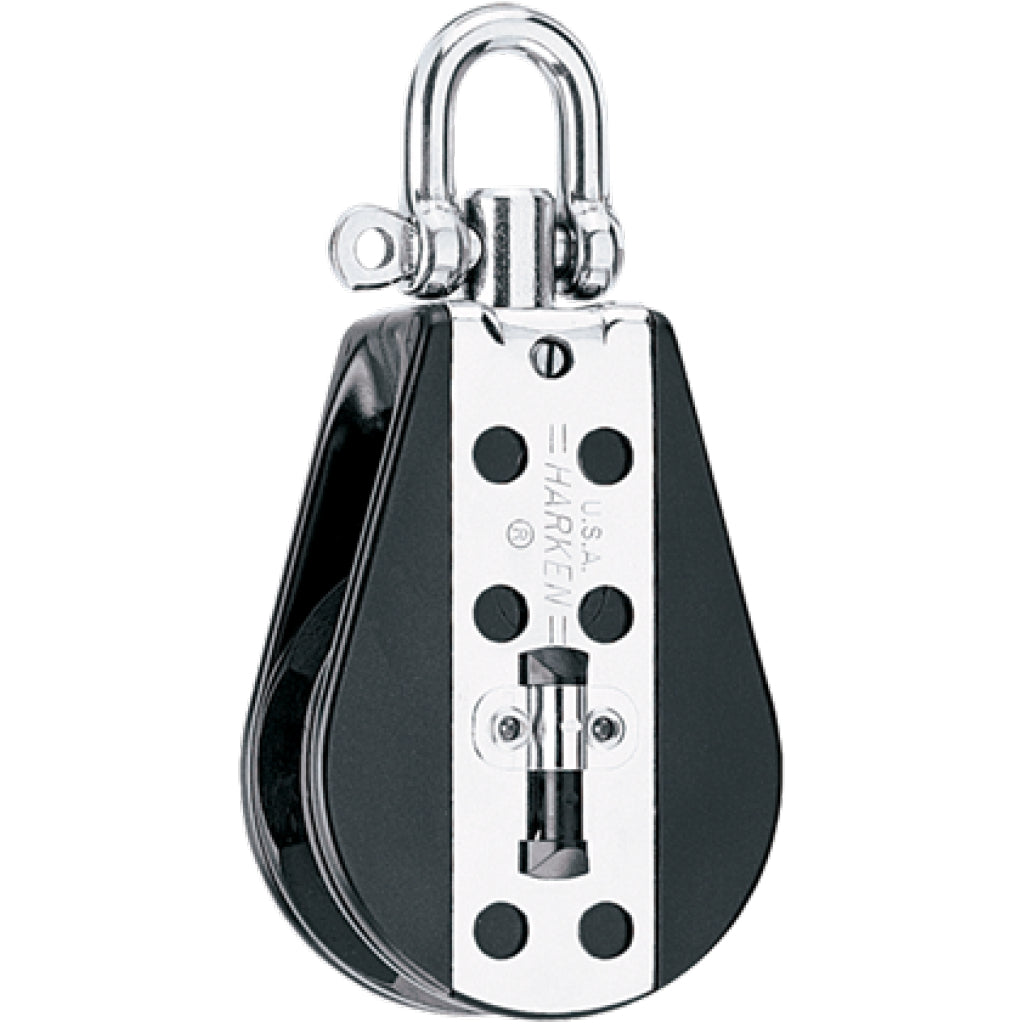

Harken 76 mm Midrange HexaratchetBlock

SKU# 1549
$24699
Check Delivery Time

Harken 76 mm Midrange HexaratchetBlock is backordered and will ship as soon as it is back in stock.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

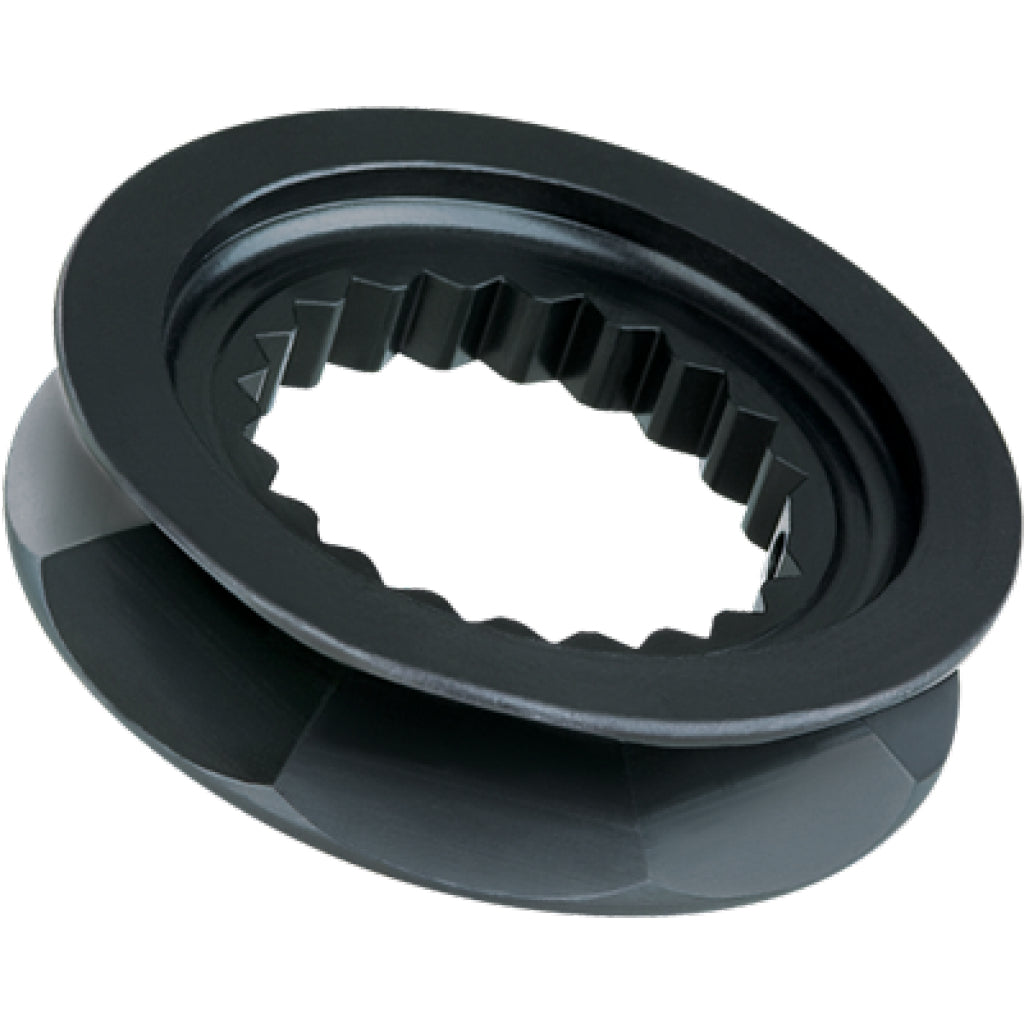

Midrange Hexaratchet blocks grip loaded sheets, yet allow sailors to ease and trim quickly and with complete control.

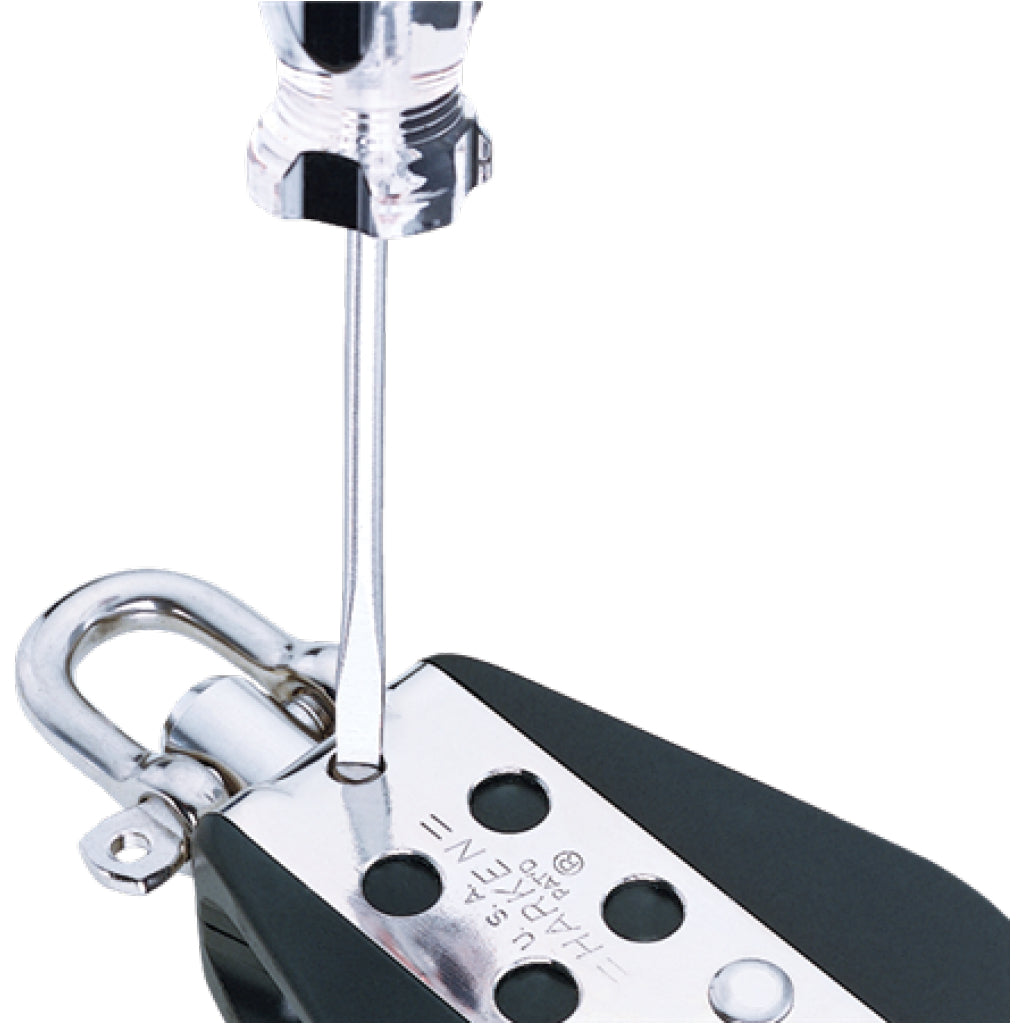

A switch on the side engages and disengages the ratchet mechanism.

Specifications

  • Sheave Ø (mm): 76 mm
  • Sheave Ø (in): 3 in
  • Length (mm): 156 mm
  • Length (in): 6 1/8 in
  • Weight (g): 397 g
  • Weight (oz): 14 oz
  • Shackle pin Ø (mm): 8 mm
  • Shackle pin Ø (in): 5/16 in
  • Maximum line Ø (mm): 14 mm
  • Maximum line Ø (in): 9/16 in
  • Maximum working load (kg): 816 kg
  • Maximum working load (lb): 1800 lb
  • Breaking load (kg): 2268 kg
  • Breaking load (lb): 5000 lb
  • Turns: clockwise
