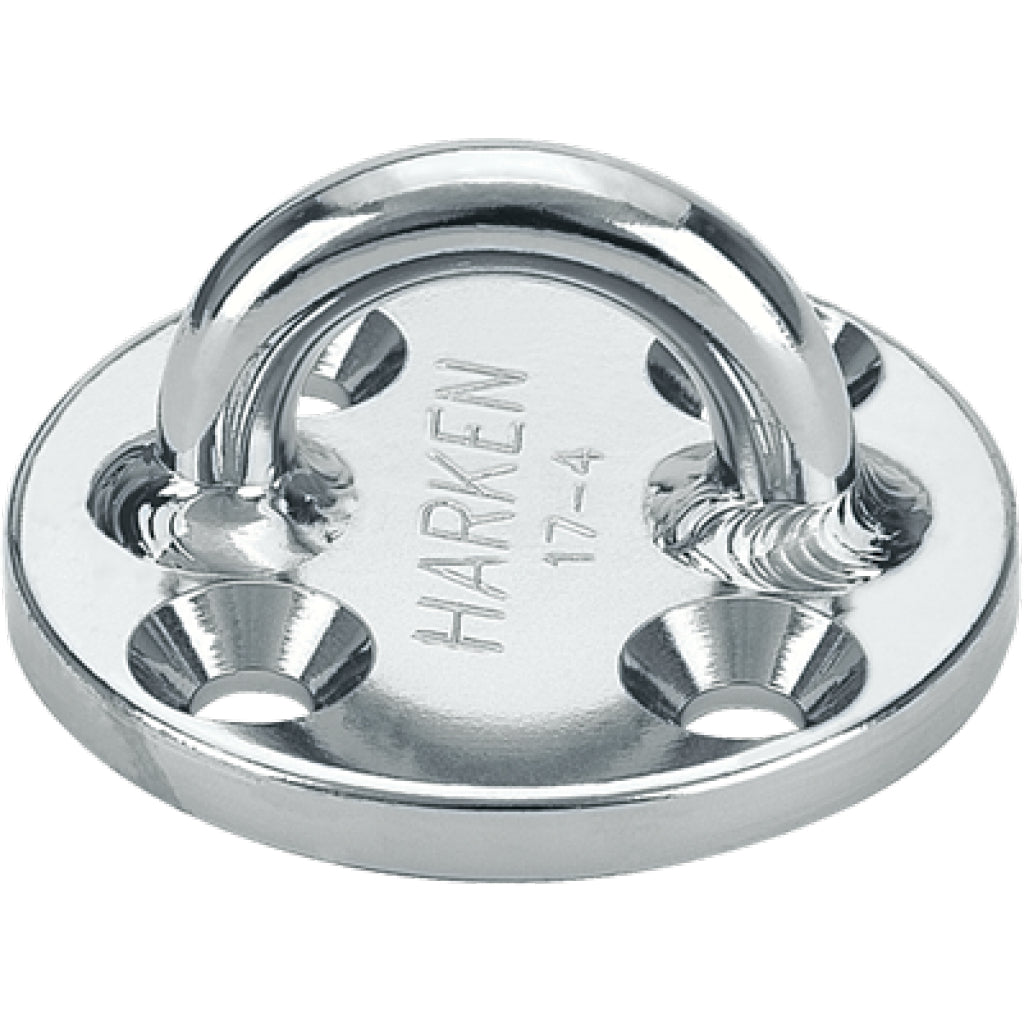

Harken 76mm High-load Round Stainless Padeye

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items.

The 627, 629, and 648 padeyes are 17-4 PH stainless.

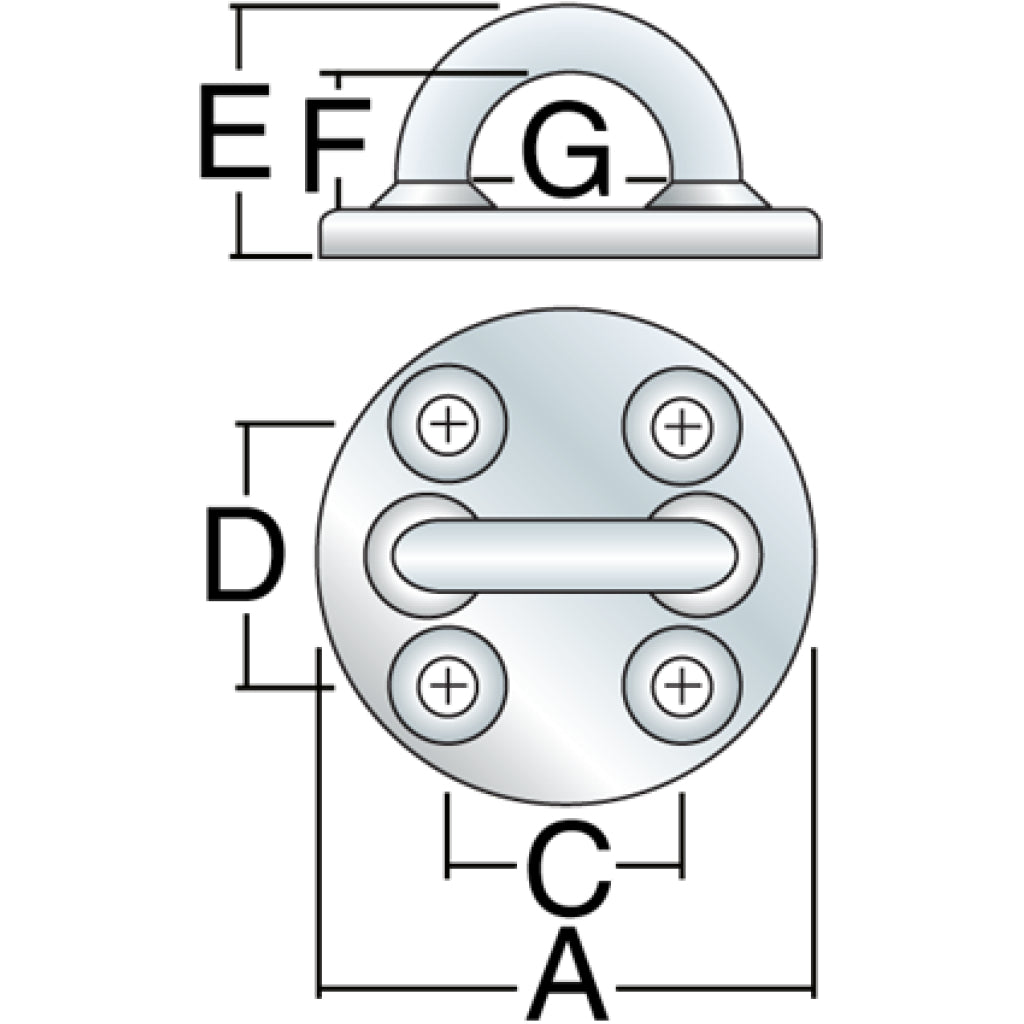

Specifications

• A (mm): 76 mm
• A (in): 3 in
• C (mm): 33 mm
• C (in): 1 5/16 in
• D (mm): 40 mm
• D (in): 1 9/16 in
• E (mm): 50 mm
• E (in): 1 15/16 in
• F (mm): 29 mm
• F (in): 1 1/8 in
• G (mm): 37 mm
• G (in): 1 7/16 in
• Weight (g): 312 g
• Weight (oz): 11 oz

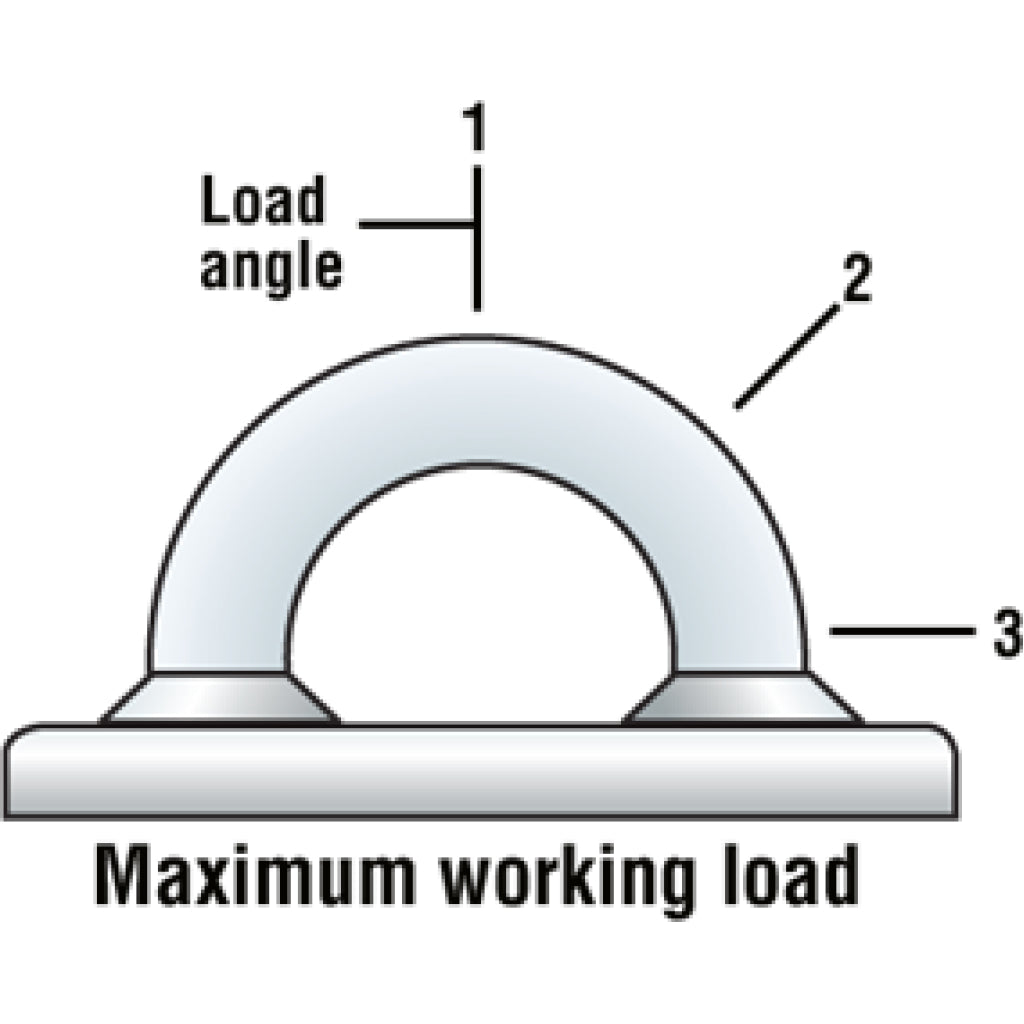

• Maximum Working Load - angle 1 (kg): 5358 kg
• Maximum Working Load - angle 1 (lb): 11800 lb
• Maximum Working Load - angle 2 (kg): 4705 kg
• Maximum Working Load - angle 2 (lb): 10375 lb
• Maximum Working Load - angle 3 (kg): 3855 kg
• Maximum Working Load - angle 3 (lb): 8500 lb
• Breaking load - angle 1 (kg): 10716 kg
• Breaking load - angle 1 (lb): 23600 lb
• Breaking load - angle 2 (kg): 9430 kg
• Breaking load - angle 2 (lb): 20750 lb
• Breaking load - angle 3 (kg): 7710 kg
• Breaking load - angle 3 (lb): 17000 lb
• Fasteners (mm): 10 FH mm
• Fasteners (in): 3/8 FH in
