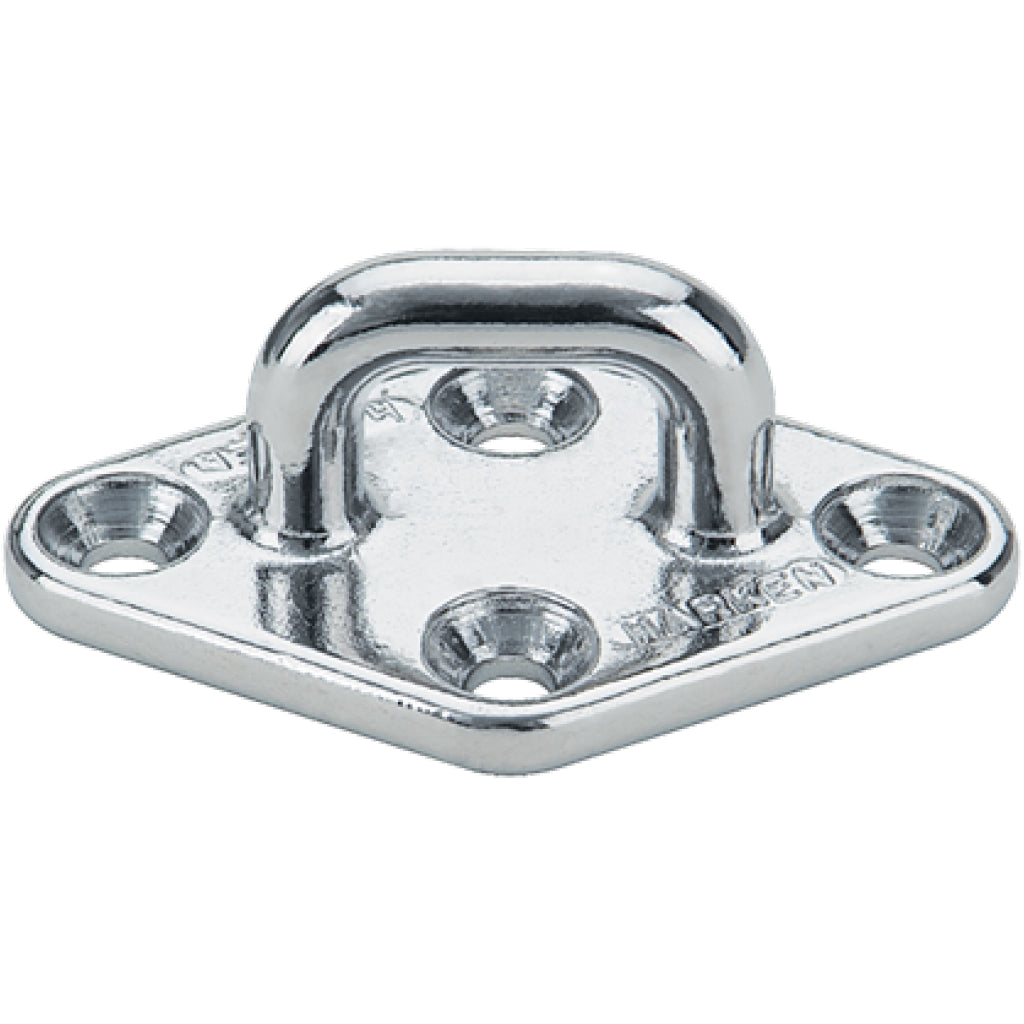

Item Number: 688

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items.

Harken® offers a range of stainless steel padeyes. The diamond-shaped padeyes, 688 and 689, are 316 stainless and often used at mastbases where the diamond shape allows them to be mounted very close together.

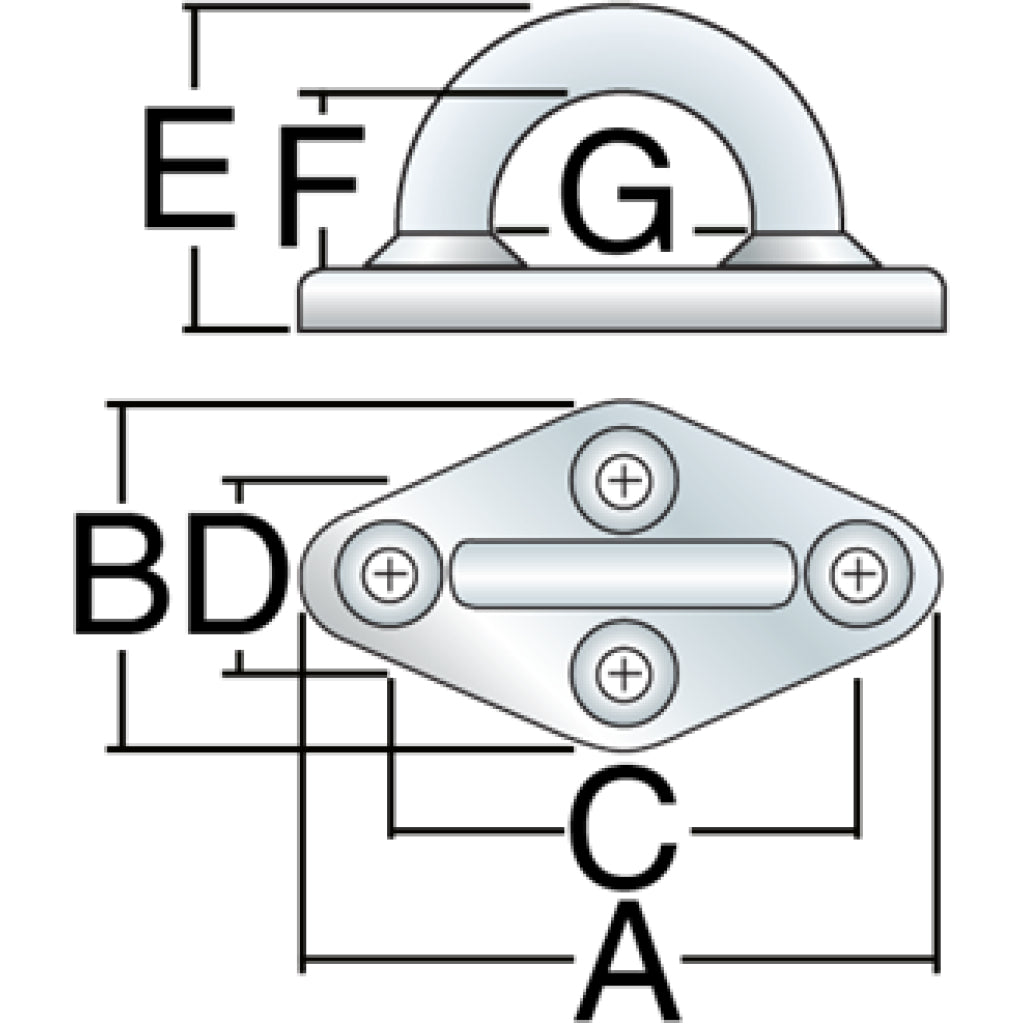

Specifications

  • A (mm): 79 mm
  • A (in): 3 1/8 in
  • B (mm): 51 mm
  • B (in): 2 in
  • C (mm): 60 mm
  • C (in): 2 3/8 in
  • D (mm): 32 mm
  • D (in): 1 1/4 in
  • E (mm): 30 mm
  • E (in): 1 3/16 in
  • F (mm): 14 mm
  • F (in): 9/16 in
  • G (mm): 22 mm
  • G (in): 7/8 in
  • Weight (g): 135 g
  • Weight (oz): 4.75 oz

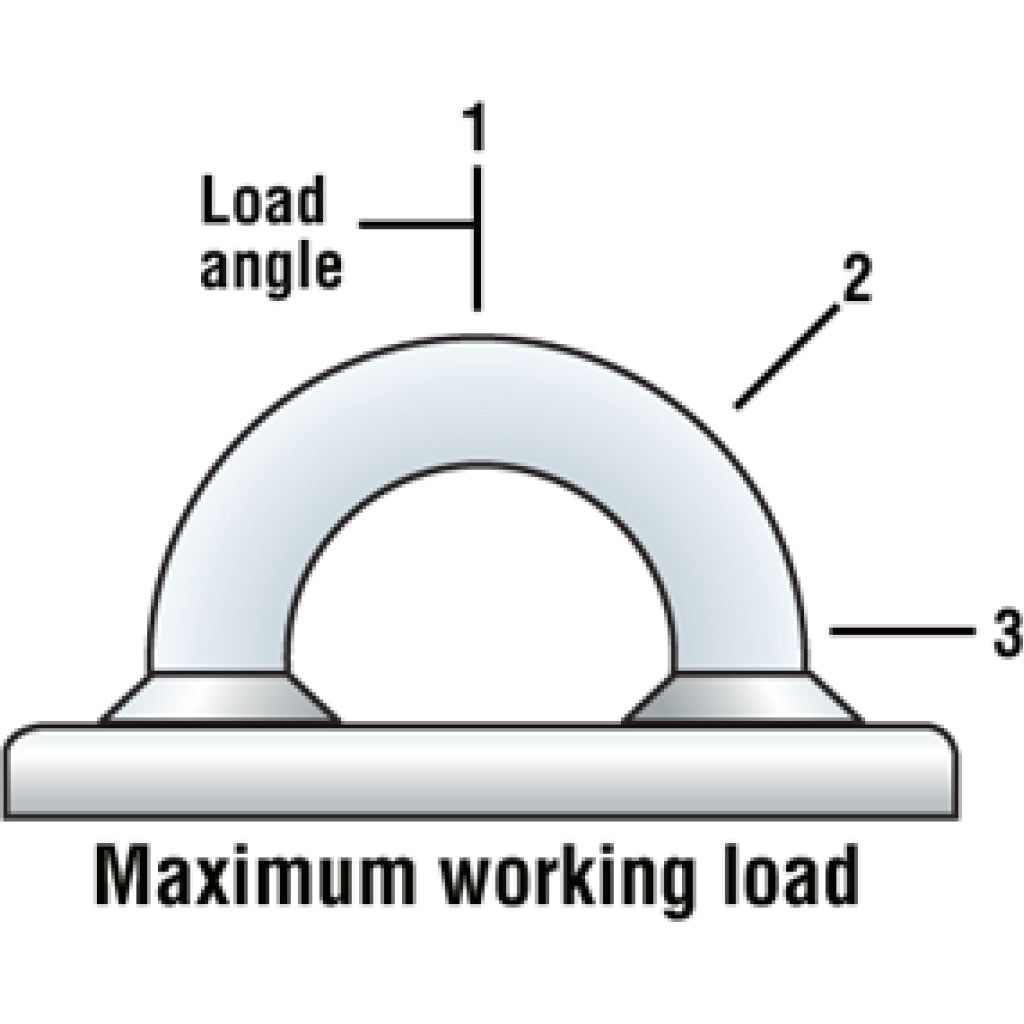

  • Maximum Working Load - angle 1 (kg): 1770 kg
  • Maximum Working Load - angle 1 (lb): 3800 lb
  • Maximum Working Load - angle 2 (kg): 2270 kg
  • Maximum Working Load - angle 2 (lb): 5000 lb
  • Maximum Working Load - angle 3 (kg): 1950 kg
  • Maximum Working Load - angle 3 (lb): 4300 lb
  • Breaking load - angle 1 (kg): 3540 kg
  • Breaking load - angle 1 (lb): 7800 lb
  • Breaking load - angle 2 (kg): 4535 kg
  • Breaking load - angle 2 (lb): 10000 lb
  • Breaking load - angle 3 (kg): 3900 kg
  • Breaking load - angle 3 (lb): 8600 lb
  • Fasteners (mm): 6 FH mm
  • Fasteners (in): 1/4 FH in
