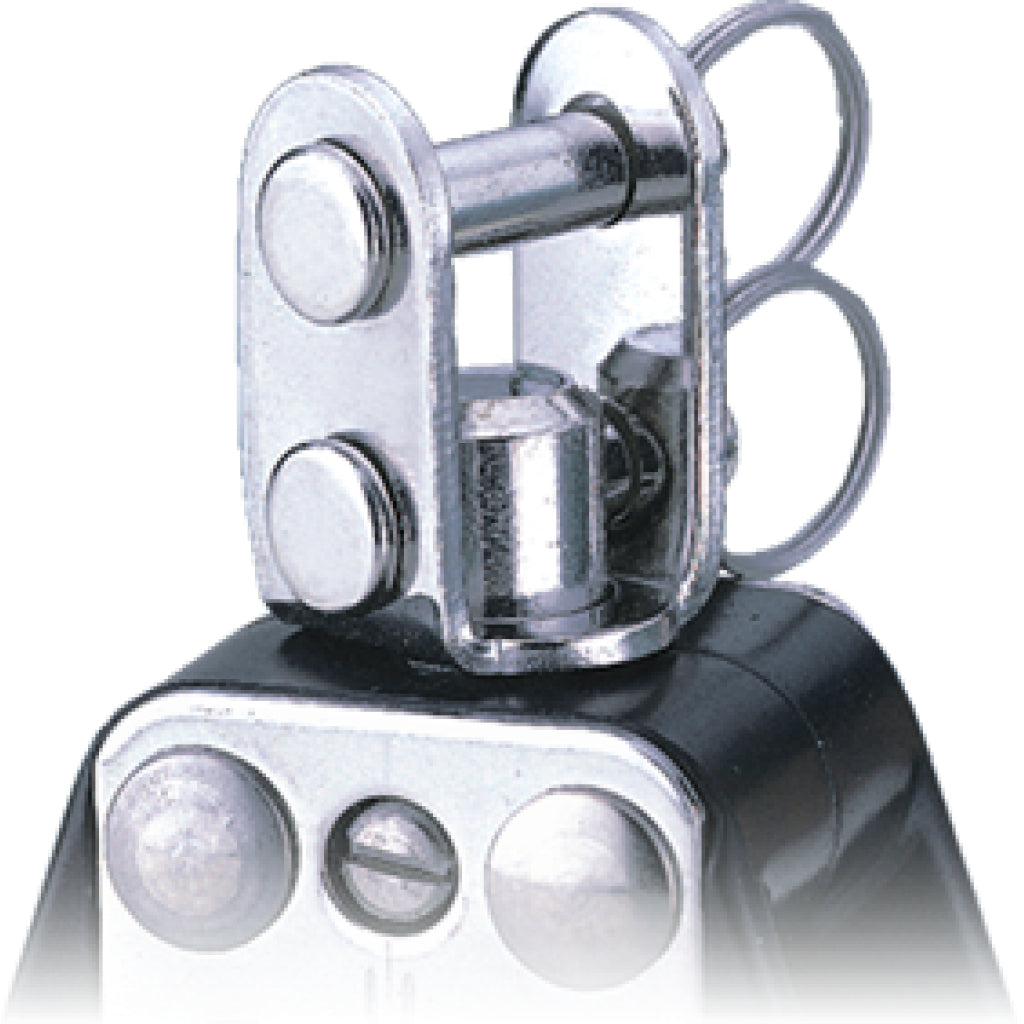

The 1598 U-adaptor allows blocks with up to 15 mm (19/32") posts to be attached to swivel bases or to other blocks with 15 mm (19/32") posts.
Specifications
- Shackle pin Ø (mm): 8 mm
- Shackle pin Ø (in): 5/16 in
- Weight (g): 44.4 g
- Weight (oz): 1.57 oz
- A (mm): 12 mm
- A (in): 1/2 in
- B (mm): 22 mm
- B (in): 7/8 in
- Maximum working load (kg): 816 kg
- Maximum working load (lb): 1800 lb
- Breaking load (kg): 1633 kg
- Breaking load (lb): 3600 lb
