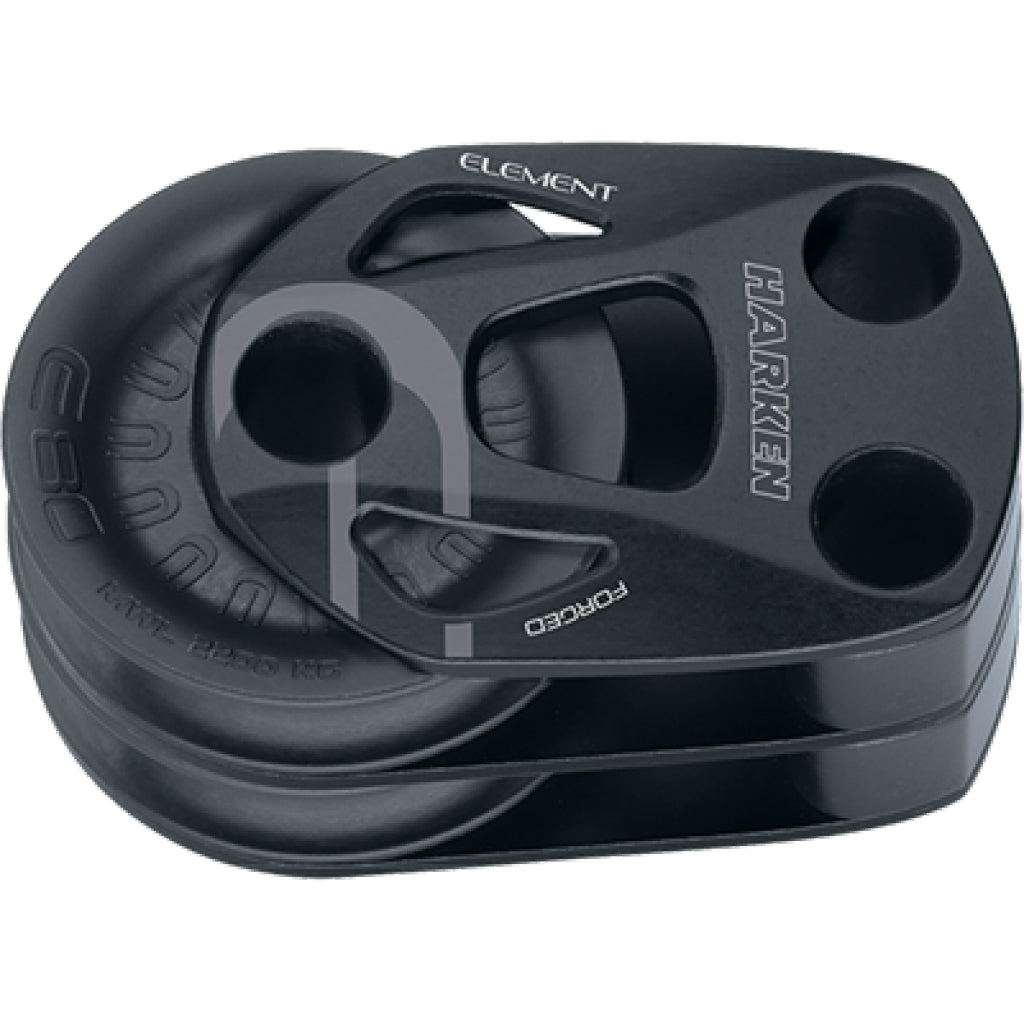

Harken 80mm Aluminum Element Double Footblock

$264.99
Item Number: 6298

Harken 80mm Aluminum Element Double Footblock is backordered. We will ship it separately in 10 to 15 days.

  • Element blocks introduce sideplates that combine forged aluminum and compound curves for strength.
  • They are simultaneously contemporary and very robust.
  • Element’s design pairs the minimum amount of metal required to protect the sheave with a proven journal bearing.
  • So size for size, Element is priced significantly lower, than our previously least expensive blocks.
  • Sideplates are hardcoat-anodized to resist corrosion. Bearing sheave of tough composite resists corrosion for a long service life.

Specifications

  • Sheave Ø (mm): 80 mm
  • Sheave Ø (in): 3 1/8 in
  • Length (mm): 114 mm
  • Length (in): 4 1/2 in
  • Height (mm): 65 mm
  • Height (in): 2 9/16 in
  • Weight (g): 580 g
  • Weight (oz): 20.3 oz
  • Maximum line Ø (mm): 16 mm
  • Maximum line Ø (in): 5/8 in
  • Maximum working load (kg): 1450 kg
  • Maximum working load (lb): 3197 lb
  • Breaking load (kg): 2900 kg
  • Breaking load (lb): 6394 lb
  • Fasteners (mm): 10 mm
