Forged stainless steel shackles are polished to a high luster and are stamped with the screw pin diameter.

Bow shackles are best for multidirectional loads. Their large interior opening allows plenty of articulation especially when attached to a round bail.

Specifications

• Shackle pin Ø (mm): 8 mm
• Shackle pin Ø (in): 5/16 in
• Weight (g): 70.5 g
• Weight (oz): 2.48 oz

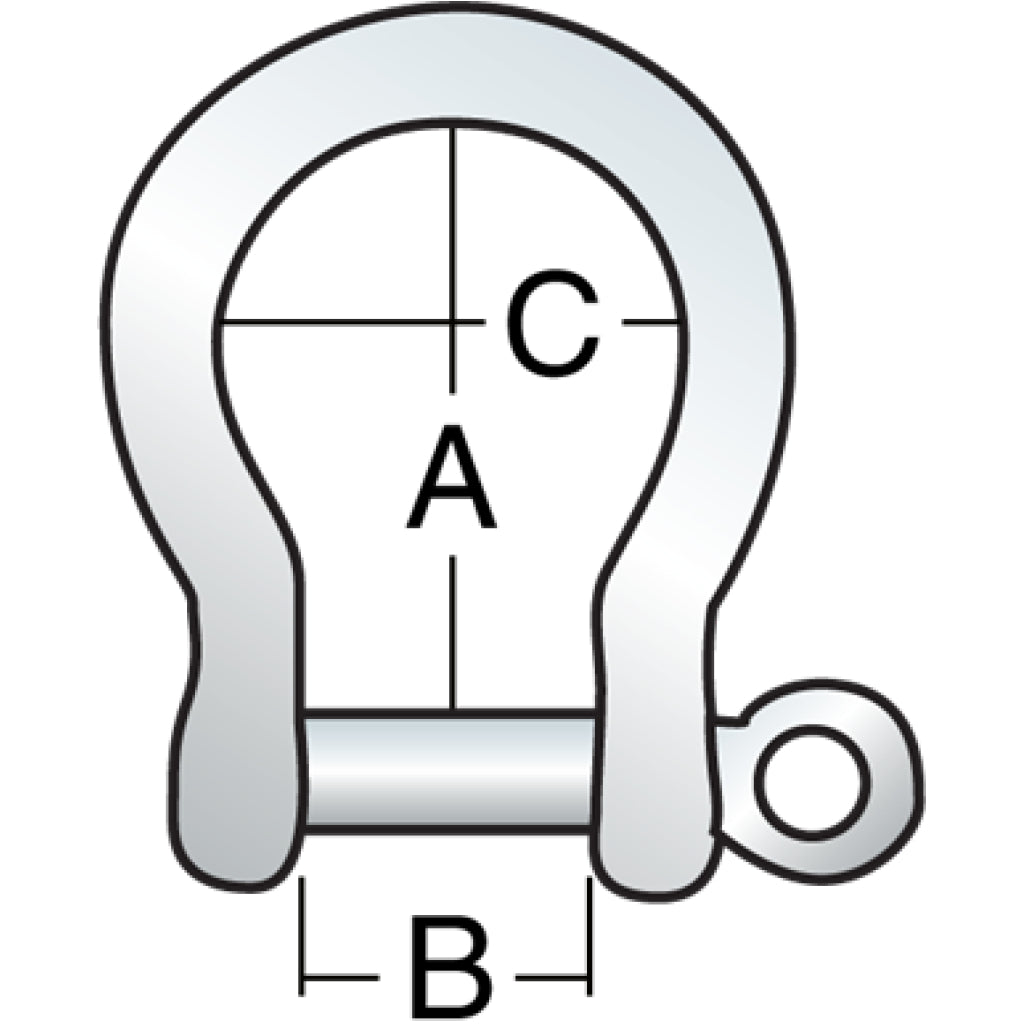

• A (mm): 38 mm
• A (in): 1 1/2 in
• B (mm): 17 mm
• B (in): 11/16 in
• C (mm): 29 mm
• C (in): 1 1/8 in
• Maximum working load (kg): 1380 kg
• Maximum working load (lb): 3040 lb
• Breaking load (kg): 2760 kg
• Breaking load (lb): 6080 lb
