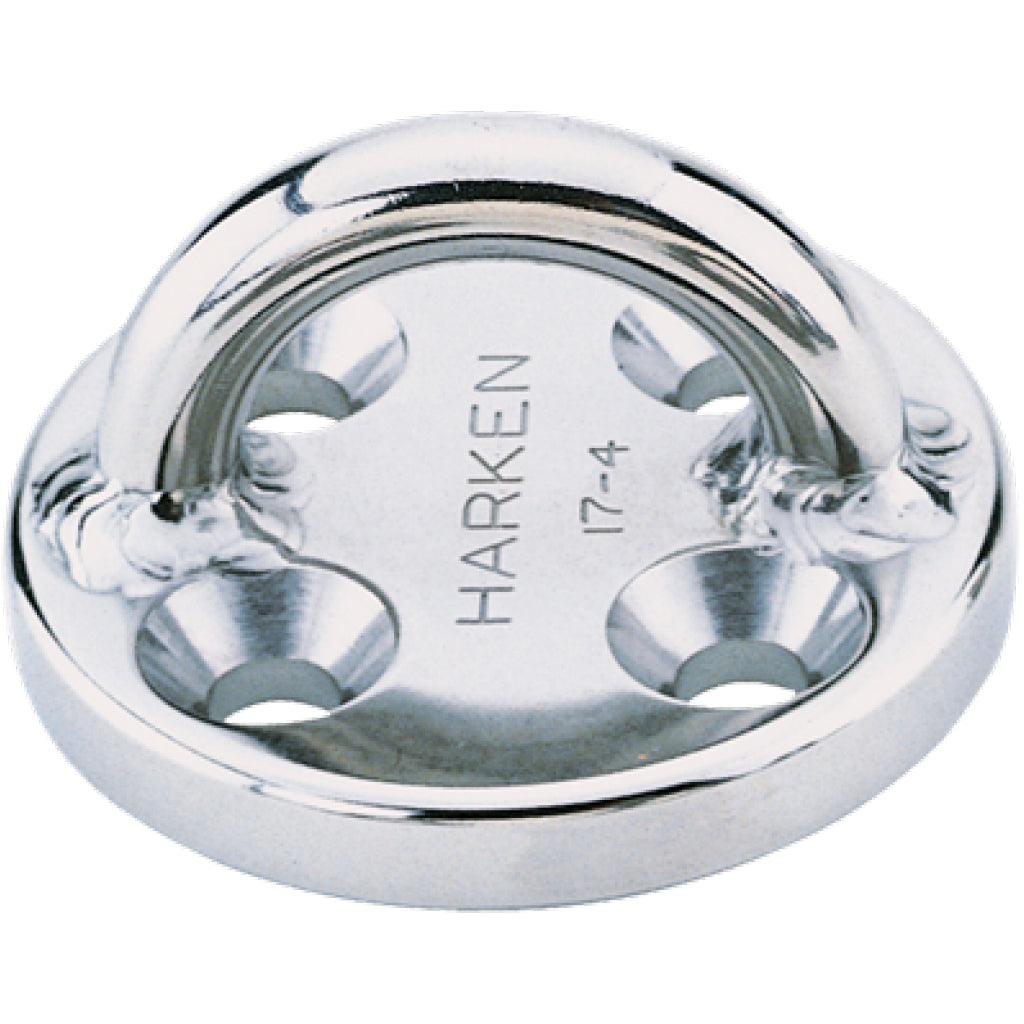

Harken 95mm Round Stainless Padeye

Padeyes are great for mounting blocks and are also used as attachment points for staysails, reefing blocks, and hundreds of other items.

The 627, 629, and 648 padeyes are 17-4 PH stainless.

Specifications

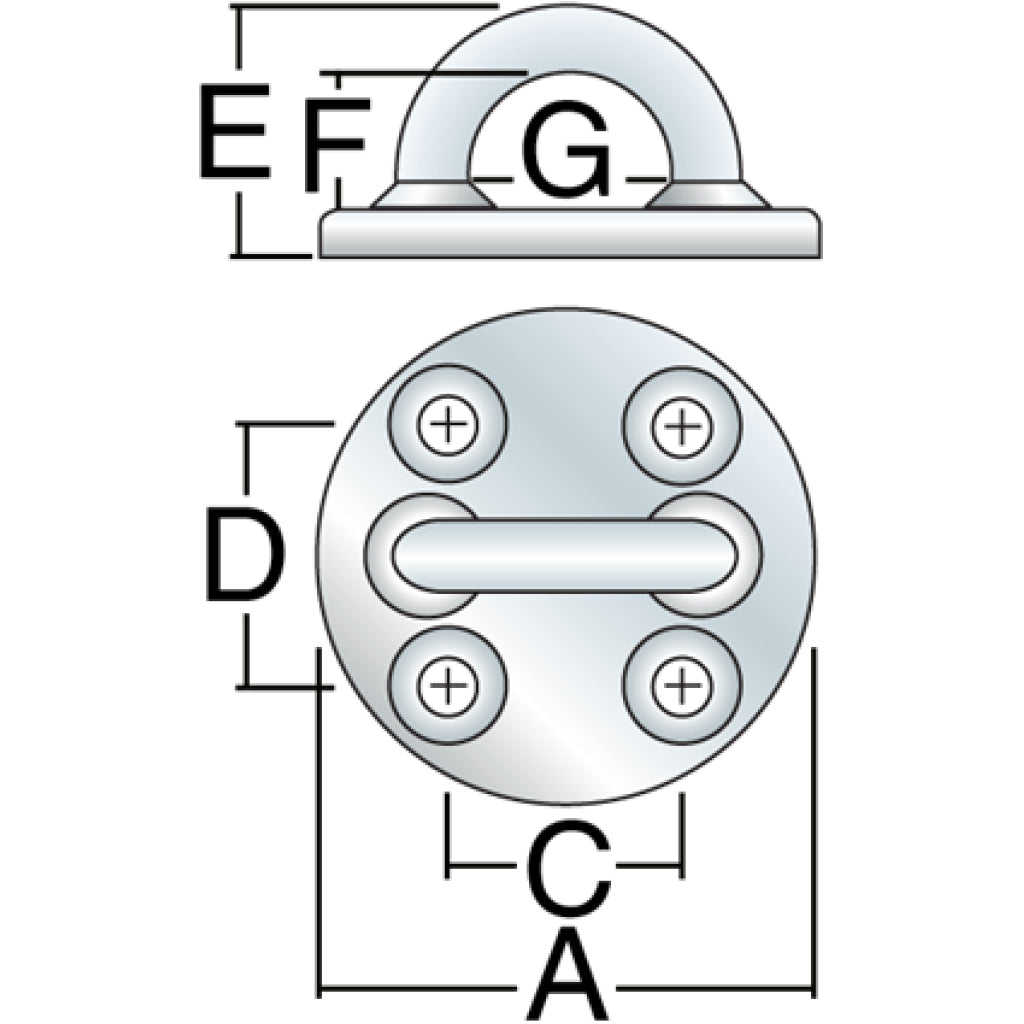

• A (mm): 95 mm
• A (in): 3 3/4 in
• C (mm): 44 mm
• C (in): 1 3/4 in
• D (mm): 48 mm
• D (in): 1 7/8 in
• E (mm): 51 mm
• E (in): 2 in
• F (mm): 27 mm
• F (in): 1 1/16 in
• G (mm): 44 mm
• G (in): 1 3/4 in
• Weight (g): 652 g
• Weight (oz): 23 oz

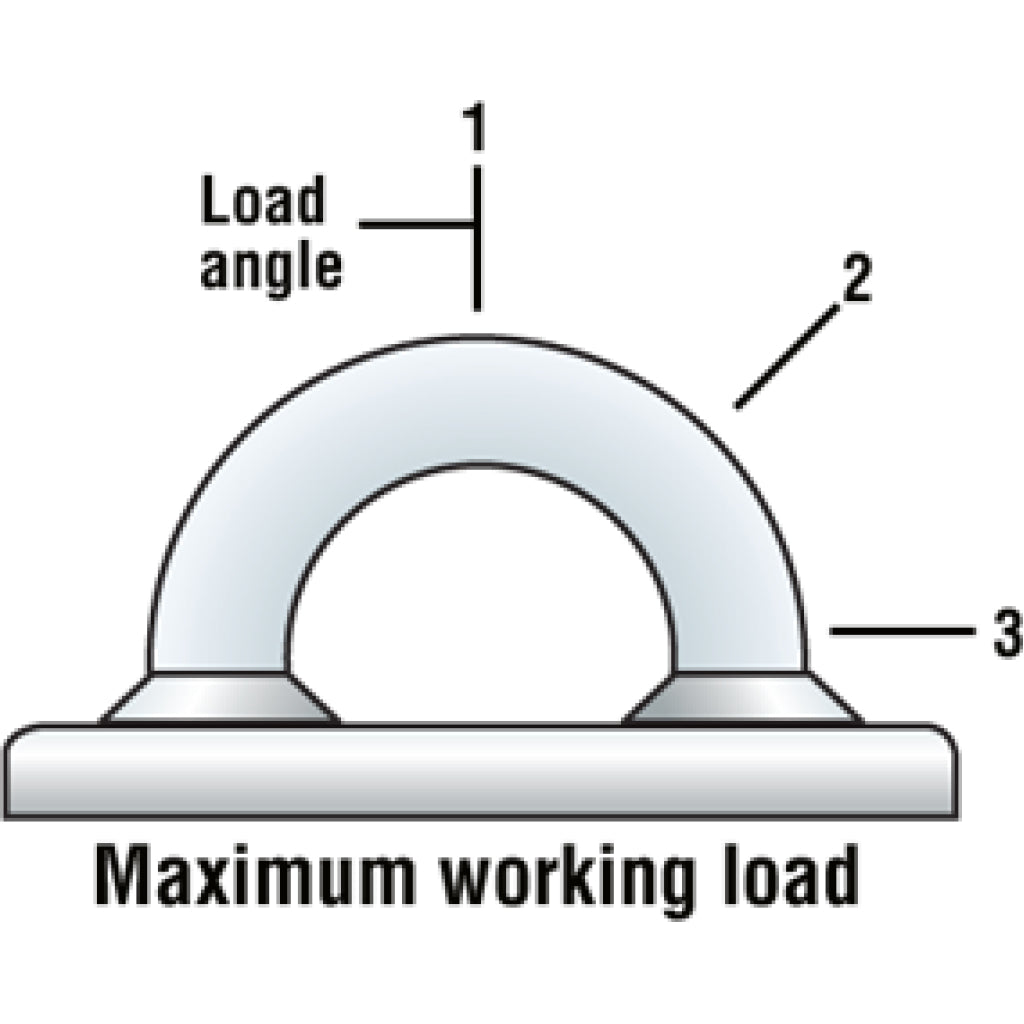

• Maximum Working Load - angle 1 (kg): 9070 kg
• Maximum Working Load - angle 1 (lb): 20000 lb
• Maximum Working Load - angle 2 (kg): 5440 kg
• Maximum Working Load - angle 2 (lb): 12000 lb
• Maximum Working Load - angle 3 (kg): 6350 kg
• Maximum Working Load - angle 3 (lb): 14000 lb
• Breaking load - angle 1 (kg): 18140 kg
• Breaking load - angle 1 (lb): 40000 lb
• Breaking load - angle 2 (kg): 10890 kg
• Breaking load - angle 2 (lb): 24000 lb
• Breaking load - angle 3 (kg): 12700 kg
• Breaking load - angle 3 (lb): 28000 lb
• Fasteners (mm): 12 FH mm
• Fasteners (in): 1/2 FH in
