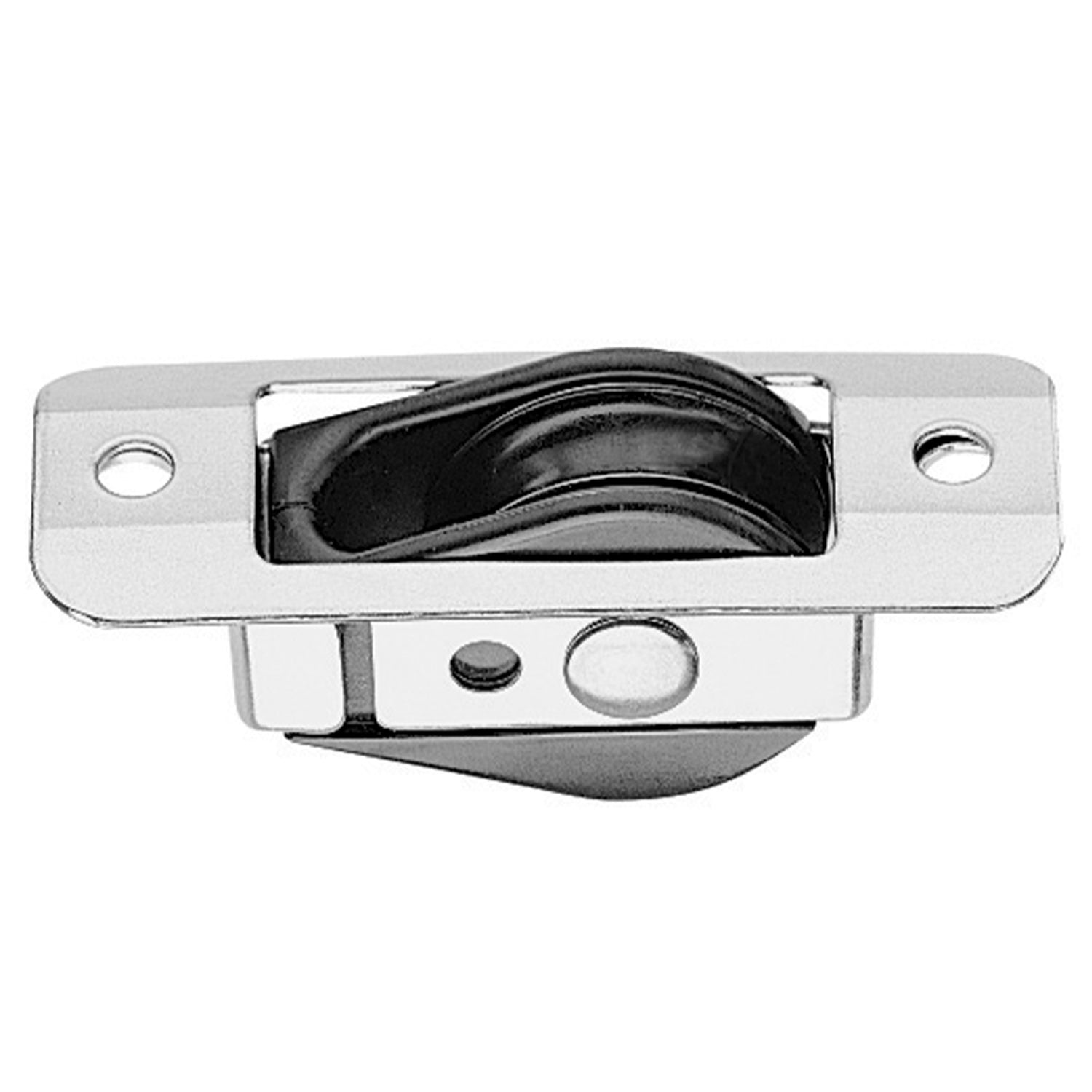

Optimize trim and release with the Harken Bullet Thru-Deck (with stainless steel Pl). This Harken Bullet Block is compact, lightweight, and versatile, suitable for both high and low load control line applications.

• Length (in): 3 in
• Sheave Ø (mm): 29 mm
• Sheave Ø (in): 1 1/8 in
• Length (mm): 76 mm
• Weight (g): 35 g
• Weight (oz): 1.25 oz
• Maximum line Ø (mm): 8 mm
• Maximum line Ø (in): 5/16 in
• Fasteners (mm): 5 RH mm
• Fasteners (in): #10 RH in
• Mounting hole spacing (mm): 57 mm
• Mounting hole spacing (in): 2 1/4 in
• Cutout (mm): 19 x 44 mm
• Cutout (in): 3/4 x 1 3/4 in
• Maximum working load (kg): 136 kg
• Maximum working load (lb): 300 lb
• Breaking load (kg): 907 kg
• Breaking load (lb): 2000 lb
