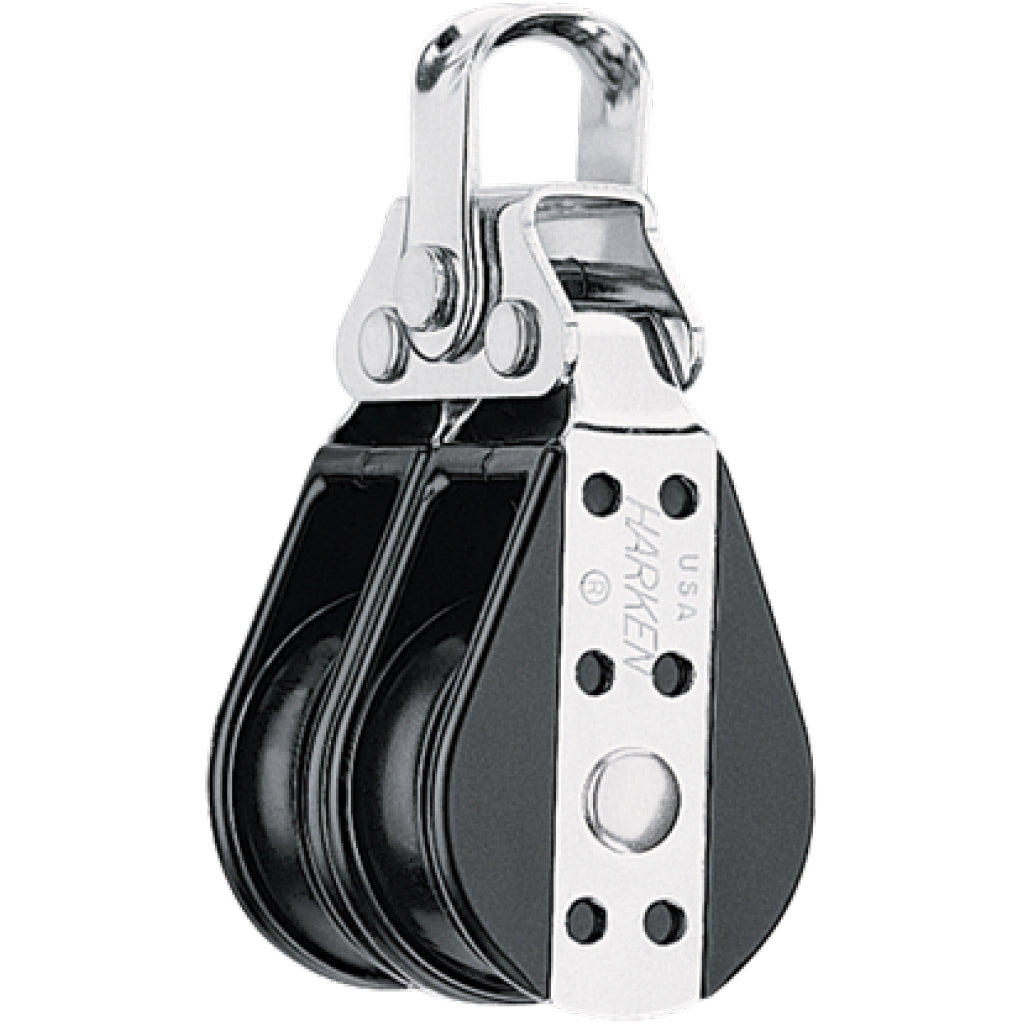

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads.
A range of styles lets these blocks adapt to almost all control line applications.
Specifications
- Sheave Ø (mm): 38 mm
- Sheave Ø (in): 1 1/2 in
- Length (mm): 89 mm
- Length (in): 3 1/2 in
- Weight (g): 120 g
- Weight (oz): 4.25 oz
- Shackle pin Ø (mm): 6 mm
- Shackle pin Ø (in): 1/4 in
- Maximum line Ø (mm): 10 mm
- Maximum line Ø (in): 3/8 in
- Maximum working load (kg): 272 kg
- Maximum working load (lb): 600 lb
- Breaking load (kg): 907 kg
- Breaking load (lb): 2000 lb
Item# 127..
