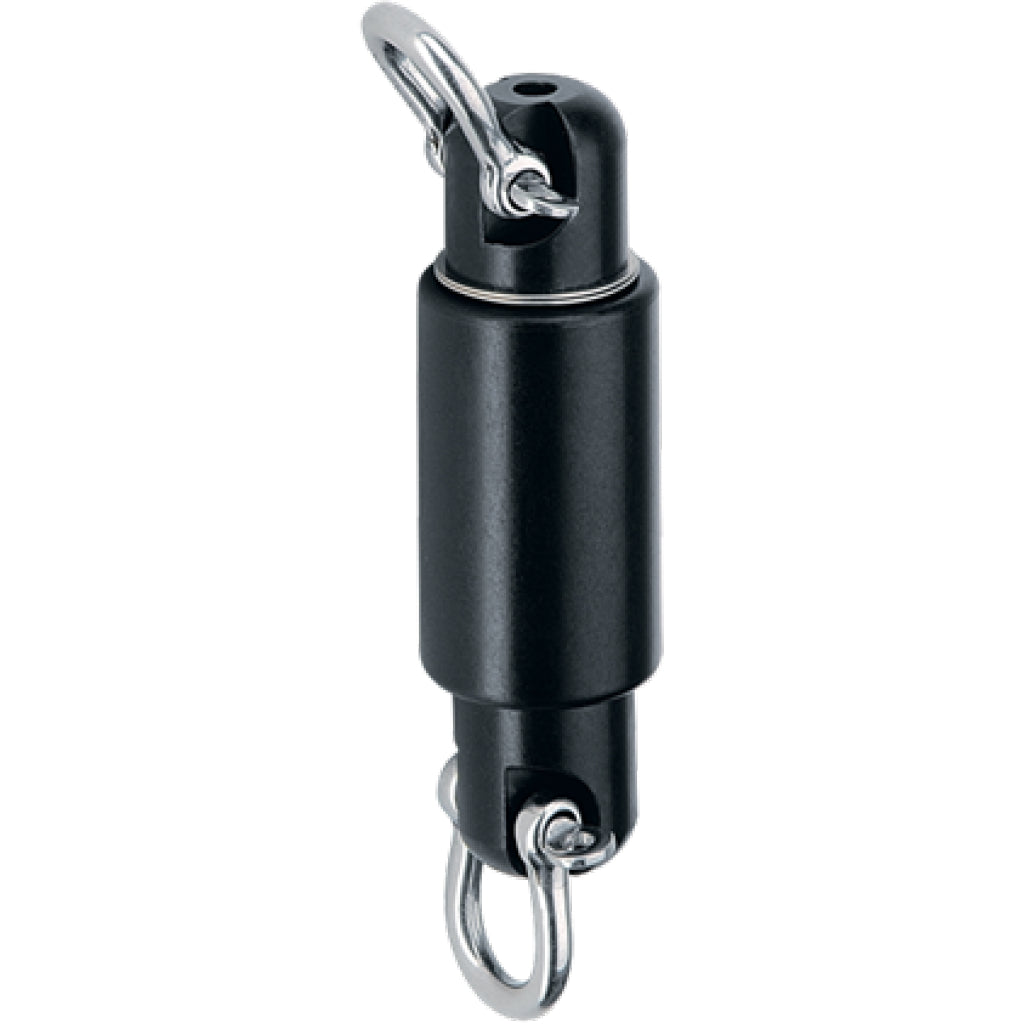

This optional hoistable ball bearing halyard swivel can be installed on your headstay so you can raise or lower the sail without removing the headstay.
Swivels are independent of the headstay, allowing you to tension the luff separately from the mast rake.
- Shackle-to-shackle length (mm): 144 mm
- Shackle-to-shackle length (in): 5 11/16 in
- Maximum luff wire Ø (mm): 5 mm
- Maximum luff wire Ø (in): 3/16 in
- Clevis pin Ø (mm): 5 mm
- Clevis pin Ø (in): 3/16 in
- Weight (g): 252 g
- Weight (oz): 8.9 oz
- Maximum working load (kg): 540 kg
- Maximum working load (lb): 1190 lb
- Use with furling unit: 208, 493L, 1134
