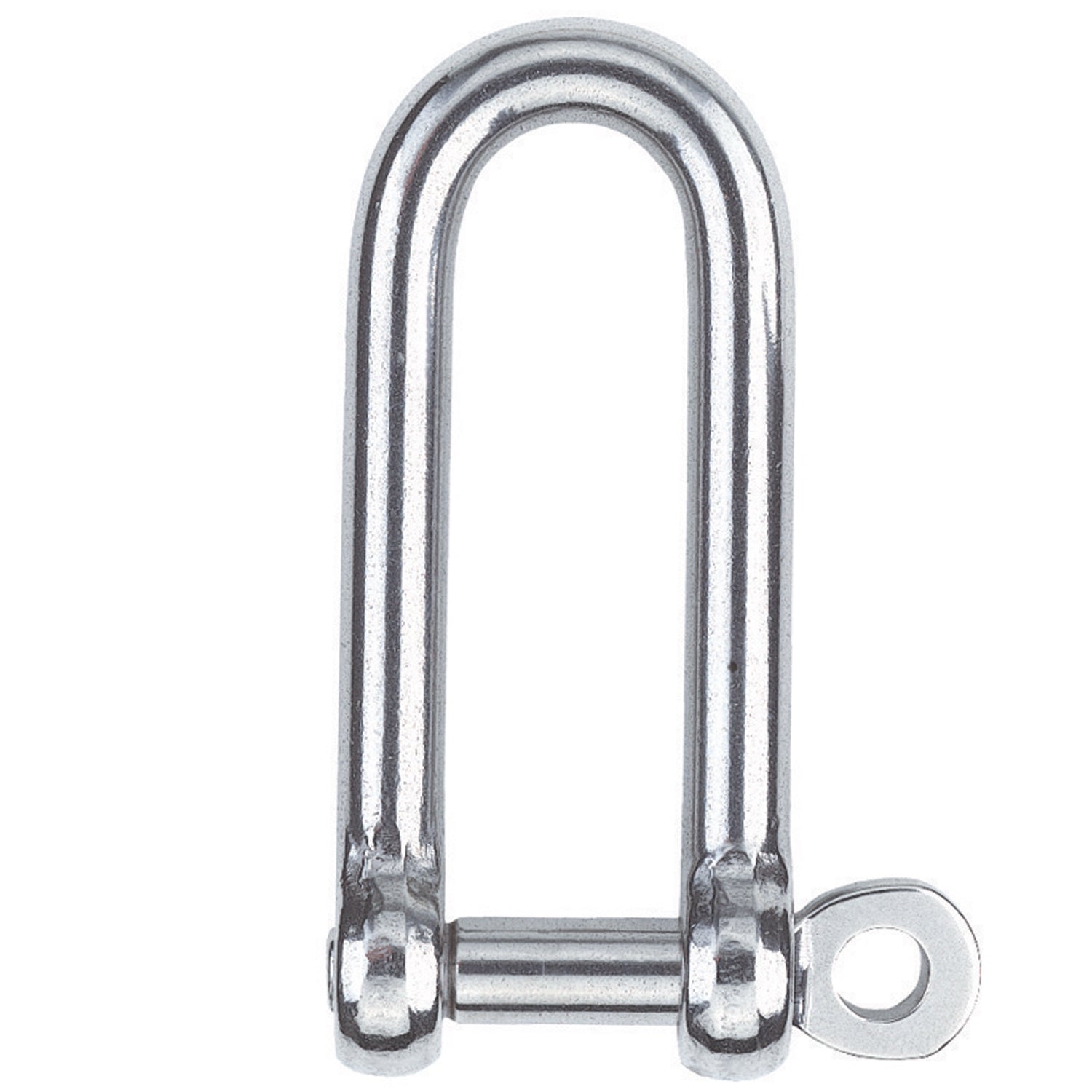

The Harken 5mm Long Shackle, crafted from polished, high-luster forged stainless steel, features a clearly stamped screw pin diameter. Its design mirrors the "D" shackle, offering a proportionally extended length for its width, ideal for versatile marine applications.
| Weight (g) | 22 g |
| Weight (oz) | 0.78 oz |
| Maximum working load (kg) | 540 kg |
| Maximum working load (lb) | 1190 lb |
| Breaking load (lb) | 2380 lb |
| Breaking load (kg) | 1080 kg |

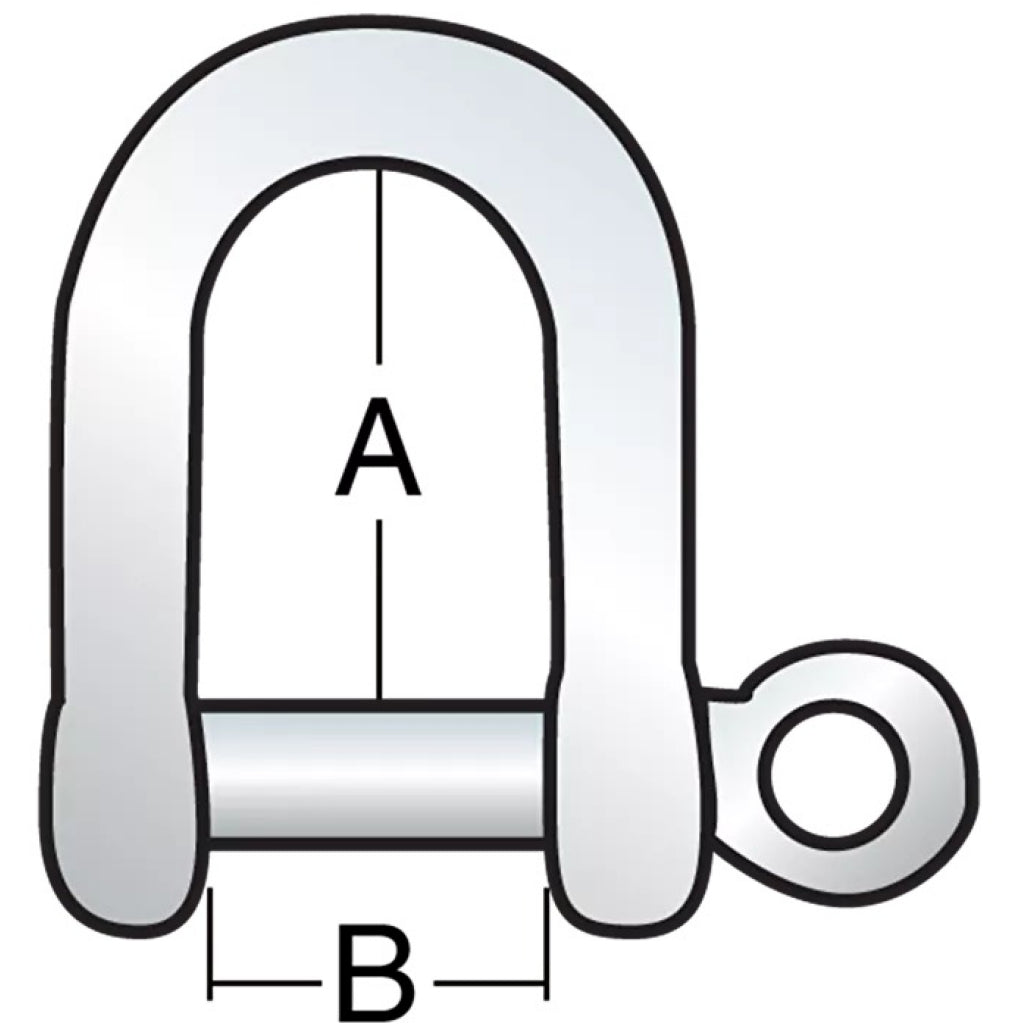

| A (mm) | 38 mm |
| A (in) | 1 1/2 in |
| B (mm) | 10 mm |
| B (in) | 3/8 in |
| Shackle pin Ø (mm) | 5 mm |
| Shackle pin Ø (in) | 3/16 in |
