Harken Stainless Bow Shackle - 5mm

SKU# 2103
$1399
Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

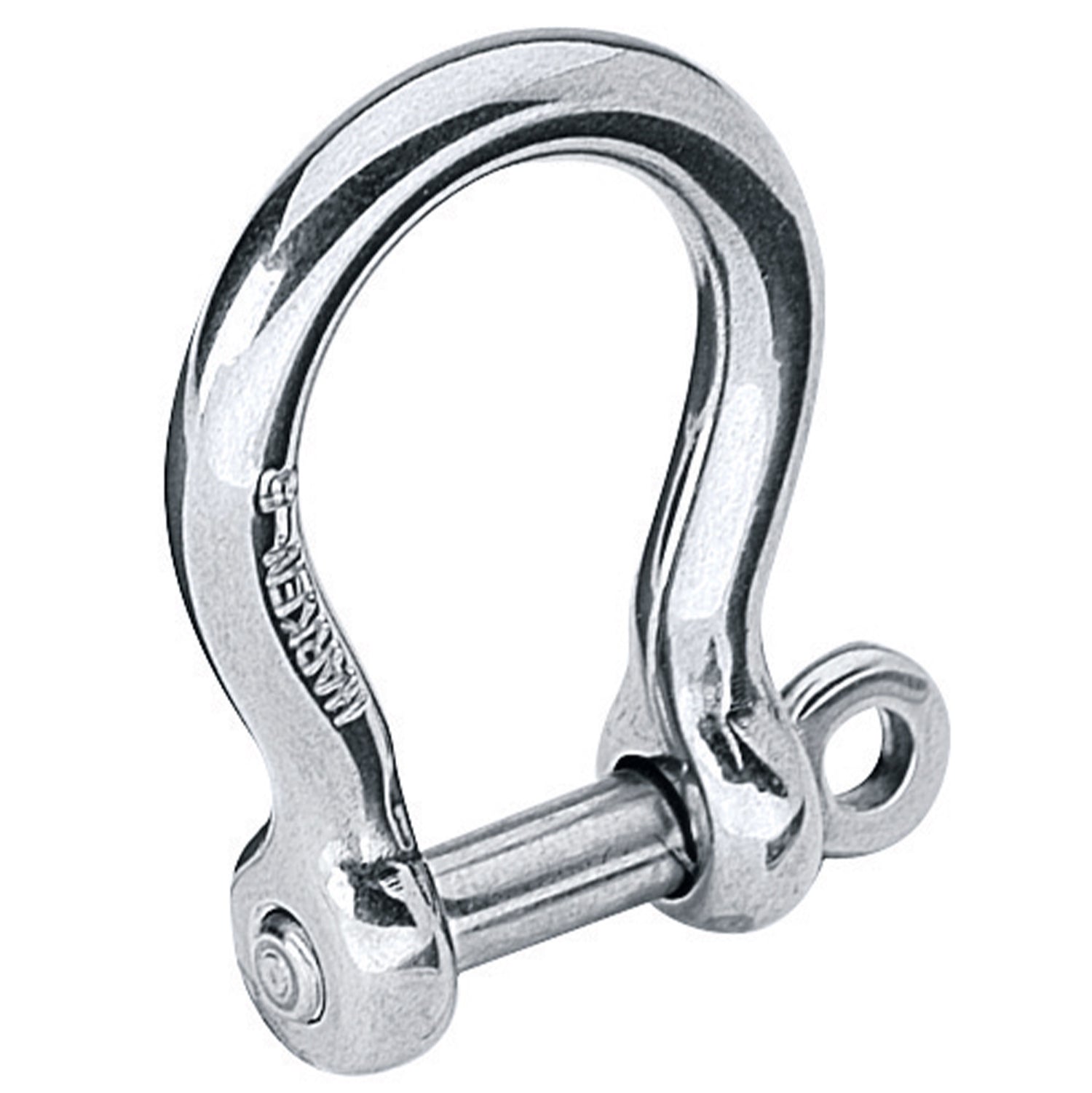

The Harken Stainless Bow Shackle - 5mm is crafted from polished, forged stainless steel and is marked with the screw pin diameter. Bow shackles excel in handling multidirectional loads, offering ample articulation, especially when connected to a round bail.

Weight (g) 18 g
Weight (oz) 0.64 oz
Maximum working load (kg) 540 kg
Maximum working load (lb) 1190 lb
Breaking load (lb) 2380 lb
Breaking load (kg) 1080 kg

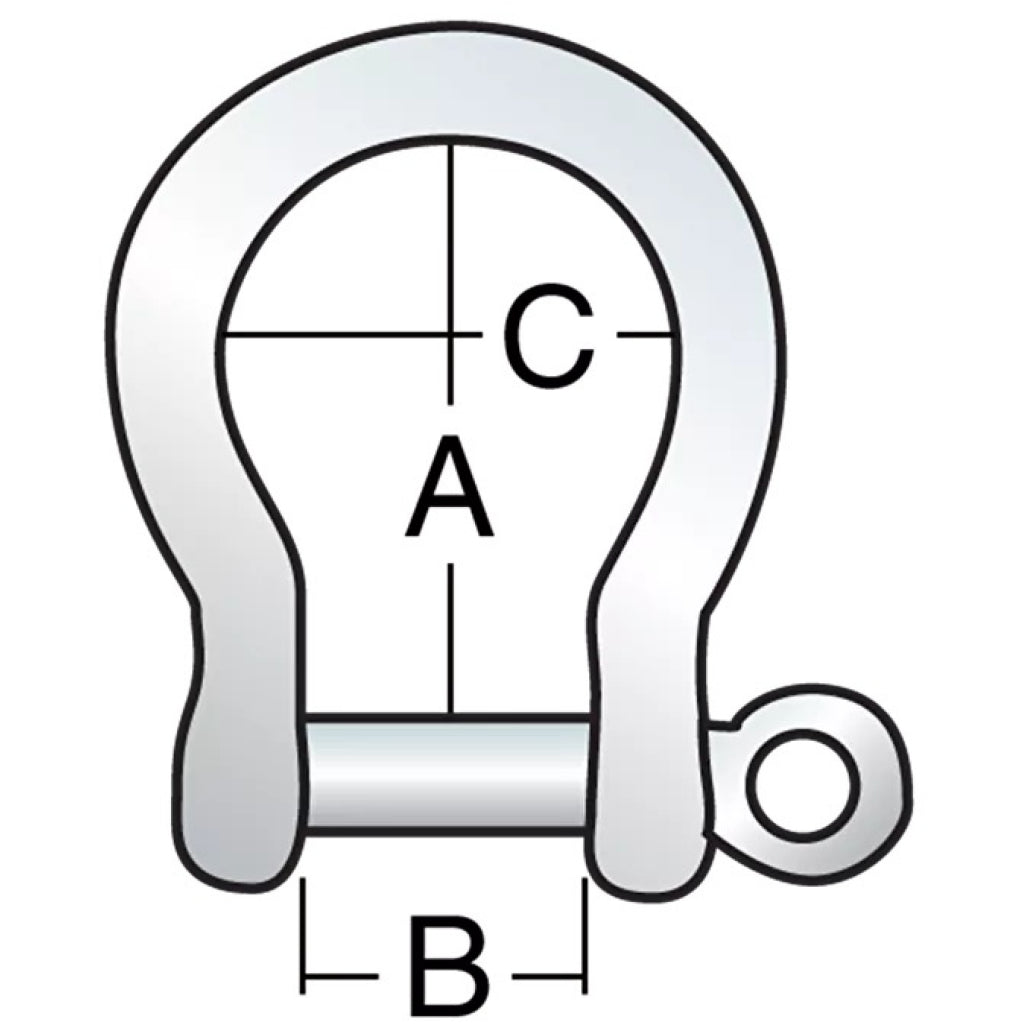

A (mm) 25 mm
A (in) 1 in
B (mm) 10 mm
B (in) 3/8 in
Shackle pin Ø (mm) 5 mm
Shackle pin Ø (in) 3/16 in
C (mm) 17 mm
C (in) 11/16 in
