Harken 205 Standard Low Profile Swivel

Item# 205.
$17499

Harken 205 Standard Low Profile Swivel usually available 5-7 business days upon ordering.

Description

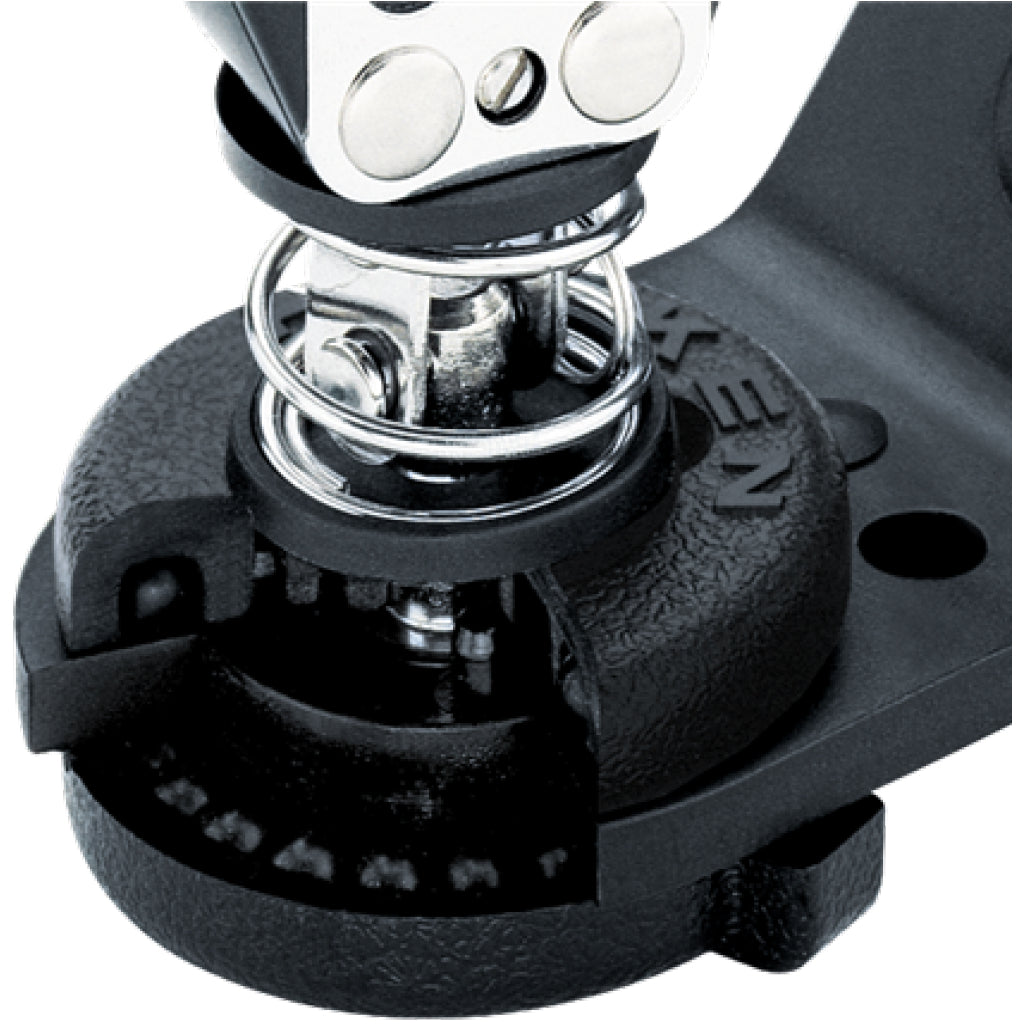

Ball bearing swivel bases feature dual rows of Delrin® ball bearings that swivel freely even under high loads.

Bases include stand-up springs and a U-adaptor to accept a variety of appropriate blocks. The low profile 205 is used when installation is at deck level and when smaller blocks are used.

Specifications

  • Height (in): 4 1/2 in
  • Height (mm): 114 mm
  • Weight (g): 340 g
  • Weight (oz): 12 oz
  • Minimum line Ø (mm): 3 mm
  • Minimum line Ø (in): 1/8 in
  • Maximum line Ø (mm): 12 mm
  • Maximum line Ø (in): 1/2 in
  • Fastener spacing (mm): 19 mm
  • Fastener spacing (in): 3/4 in
  • Fasteners (mm): 5 FH mm
  • Fasteners (in): #10 FH in
  • Use with: 57 mm/Big Bullet/Dinghy/2.25"/small ratchets

Item# 205.
