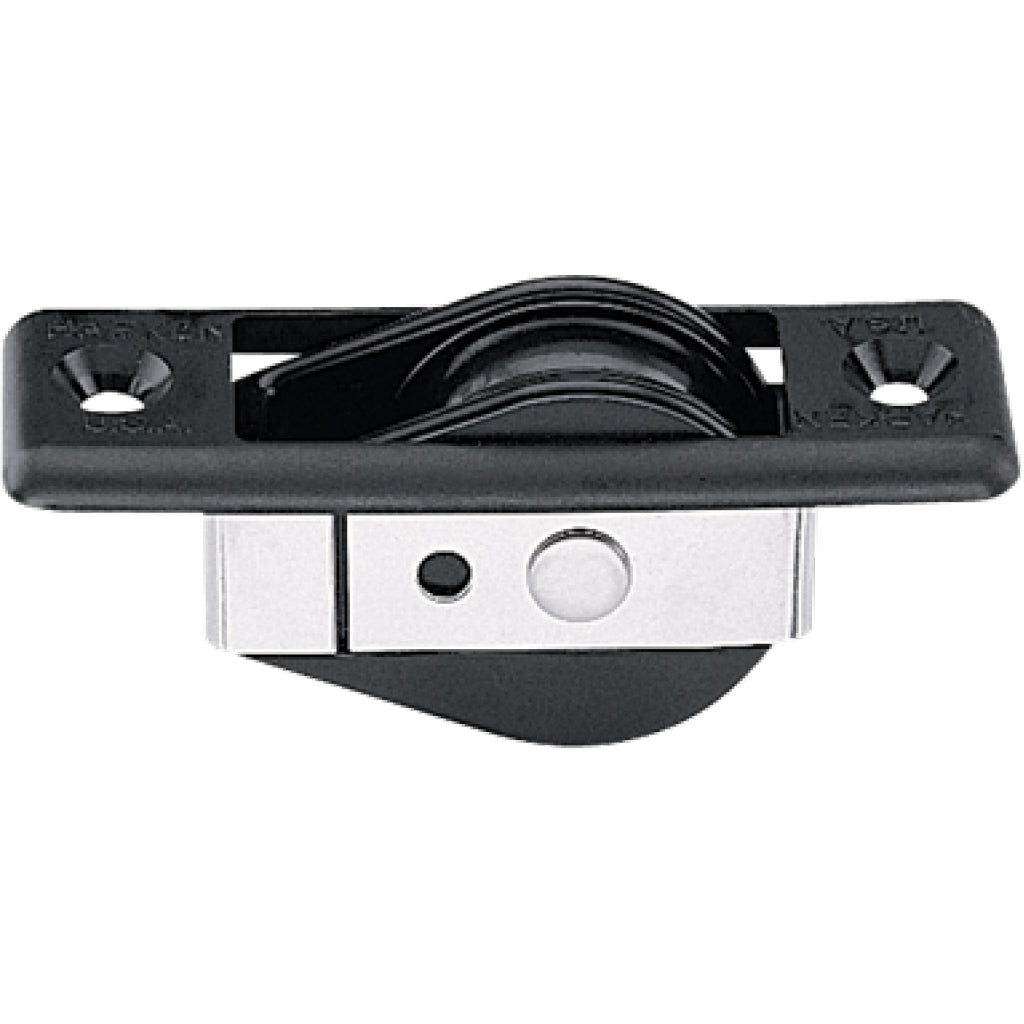

Low-friction Bullet blocks lead control lines aft. They are compact and lightweight, with fast trim and release under high or low loads.

A range of styles lets these blocks adapt to almost all control line applications.

Wire Bullet blocks use roller bearings to carry higher loads and feature hardcoat-anodized PTFE impregnated aluminum sheaves for strength and corrosion resistance.

Specifications

• Sheave Ø (mm): 29 mm
• Sheave Ø (in): 1 1/8 in
• Length (mm): 76 mm
• Length (in): 3 in
• Weight (g): 35 g
• Weight (oz): 1.25 oz
• Maximum line Ø (mm): 8 mm
• Maximum line Ø (in): 5/16 in
• Fasteners (mm): 5 FH mm
• Fasteners (in): #10 FH in
• Mounting hole spacing (mm): 57 mm
• Mounting hole spacing (in): 2 1/4 in
• Cutout (mm): 19 x 44 mm
• Cutout (in): 3/4 x 1 3/4 in
• Maximum working load (kg): 227 kg
• Maximum working load (lb): 500 lb
• Breaking load (kg): 907 kg
• Breaking load (lb): 2000 lb

Item# 106..
