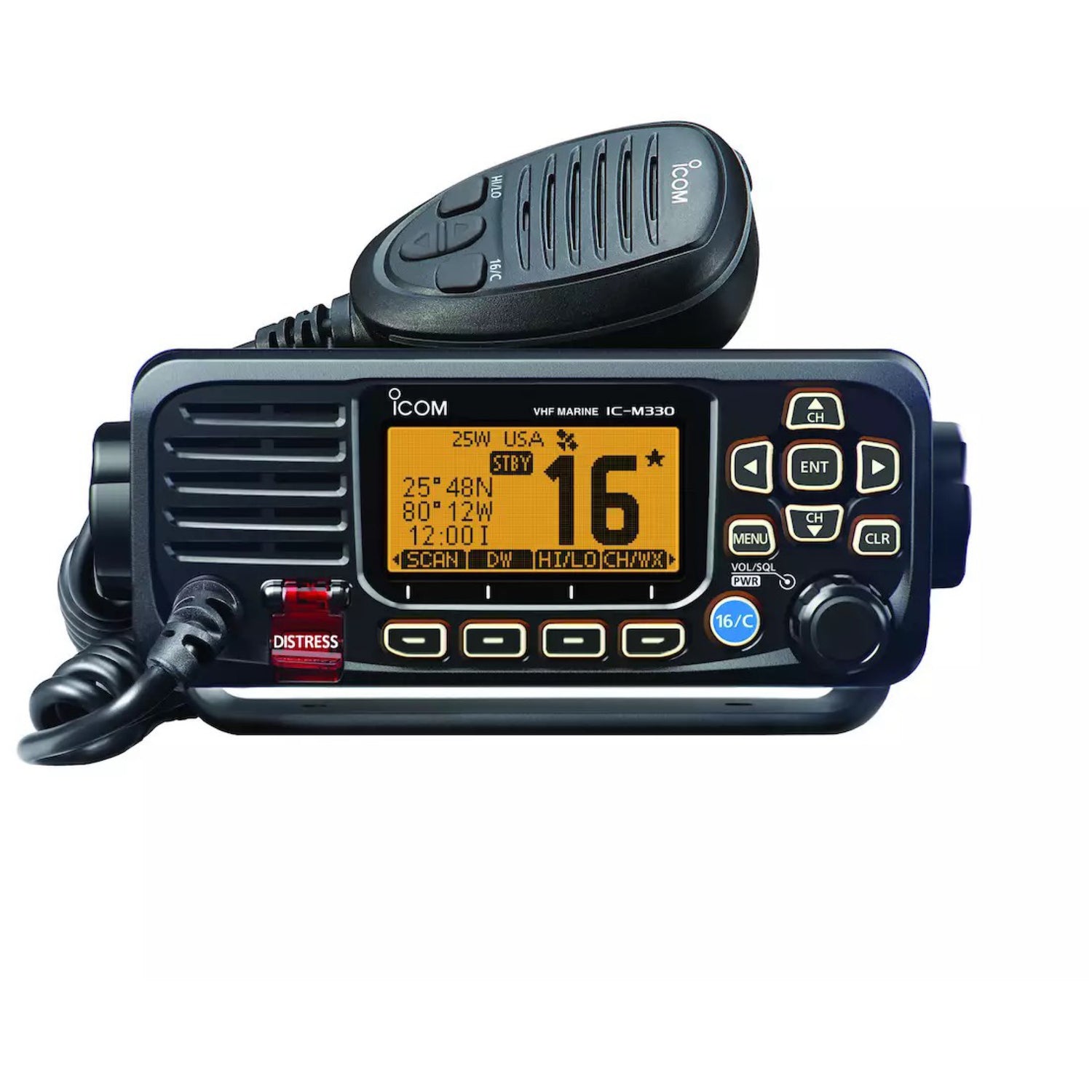

Icom IC-M330 VHF Marine Radio with GPS - Black


Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

Icom M330 Compact VHF Radio, Black: DSC w/GPS, IPX7 rated, NMEA interface, AIS compatible, and weather alerts for marine use.

  • IPX7 submersible (1 m depth of water for 30 minutes)
  • AquaQuake prevents audio degradation from a water-logged speaker
  • Common NMEA interface for external GPS/NAV connection
  • MA-500TR Class B AIS transponder compatible
  • Tag scan and favorite channel functions
  • Dual/tri-watch function for monitoring CH16 and/or call channel
  • Priority scan function
  • Display and keypad backlighting
  • External speaker connection
  • Weather channel with weather alert
  • Supplied hand microphone, HM-235B/W, with channel up/down keys and a CH16/Call channel key
  • 3-digit or 4-digit channel display selectable


Frequency Range Tx 156.025–161.600 MHz, Rx 156.050–163.275 MHz, CH70 156.525 MHz
Usable Channels USA, CAN, INT, WX channels
Type Of Emission 16K0G3E (FM), 16K0G2B (DSC)
Power Supply Requirement 13.8V DC nominal (11.7-15.9 V DC)
Current Drain Tx 25 W output 5A
(at 13.8 V DC) Rx AF max. 1A
Operating Temperature Range -20°C to 60°C -4°F to 140°F
Antenna Impedance 50 O (SO-239)
Dimensions (W×H×D) (projections not included) 156.5 × 66.5 × 110.1 mm (6.2 × 2.6 × 4.3 in)
Weight (approx.) 730 g (1.6 lb)
NMEA formats Out DSC, DSE, RMC, GSA, GSV
Ingress Protection Standard
IPX7 (Waterproof protection)
Transmitter Output Power (at 13.8 V DC) 25 W, 1 W
Max. Frequency Deviation ±5 kHz
Frequency Tolerance ±5 ppm
Spurious Emissions Less than -70 dBc (High), Less than -56 dBc (Low)
