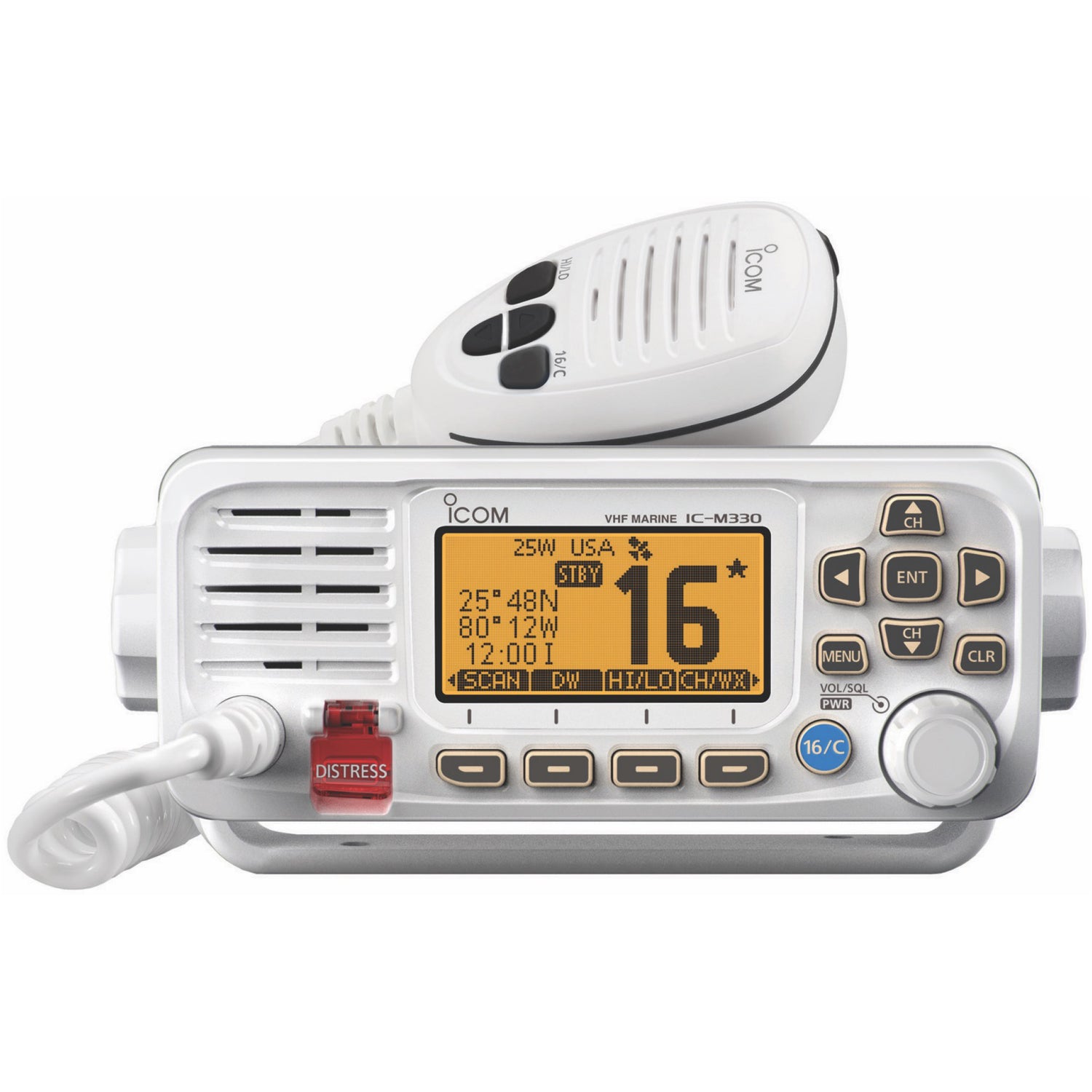

Icom IC-M330 VHF Marine Radio with GPS - White

SKU# IC-M330GW
$32110 $33799
Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

The compact and feature-rich Icom White Compact VHF w/GPS, a standout in the Icom VHF marine radio range. This model, part of the M330 series, offers high performance in a small package, perfect for limited spaces on boats. It includes the unique AquaQuake draining feature, ensuring clarity and longevity. With a 25W output power and an IPX7 waterproof rating, it's built for marine environments.

The unit's GPS functionality is enhanced by an external GPS puck antenna, supporting GPS, GLONASS, and SBAS. This feature is crucial for accurate DSC (Digital Selective Calling) calls, providing vital location, bearing, and speed data. The ultra-compact design (156.5 × 66.5 × 110.1 mm) allows flexible installation options. Its new speaker system delivers dynamic, clear audio across a broad range, and the built-in Class D DSC ensures continuous monitoring of CH 70. The radio's intuitive user interface, combining a directional keypad and soft keys, makes operation smooth and efficient, ideal for the busy mariner.

  • IPX7 submersible (1 m depth of water for 30 minutes)
  • AquaQuake prevents audio degradation from a water-logged speaker
  • Common NMEA interface for external GPS/NAV connection
  • MA-500TR Class B AIS transponder compatible
  • Tag scan and favorite channel functions
  • Dual/tri-watch function for monitoring CH16 and/or call channel
  • Priority scan function
  • Display and keypad backlighting
  • External speaker connection
  • Weather channel with weather alert
  • Supplied hand microphone, HM-235B/W, with channel up/down keys and a CH16/Call channel key
  • 3-digit or 4-digit channel display selectable

Specifications

Frequency Range Tx 156.025–161.600 MHz
Frequency Range Rx 156.050–163.275 MHz
Frequency Range Ch 70 156.525 MHz
Usable channels USA, CAN, INT, WX channels
Type of emission 16K0G3E, 16KOG2B
Power supply requirement 13.8V DC nominal (11.7–15.9V DC)
Current drain (at 13.8V DC) Tx 25W output 5.0A
Current drain (at 13.8V DC) Rx AF max. 1.5A
Operating temperature range -20°C to 60°C -4°F to 140°F
Antenna Impedance 50 (SO-239)
Dimensions (W×H×D) 156.5 × 66.5 × 110.1 mm 6.2 × 2.6 × 4.3 in
Weight (approx.) 730g 1.6lb
NMEA formats in RMC, GGA, GNS, GLL, VTG
NMEA formats out DSC, DSE, RMC, GSA, GSV
