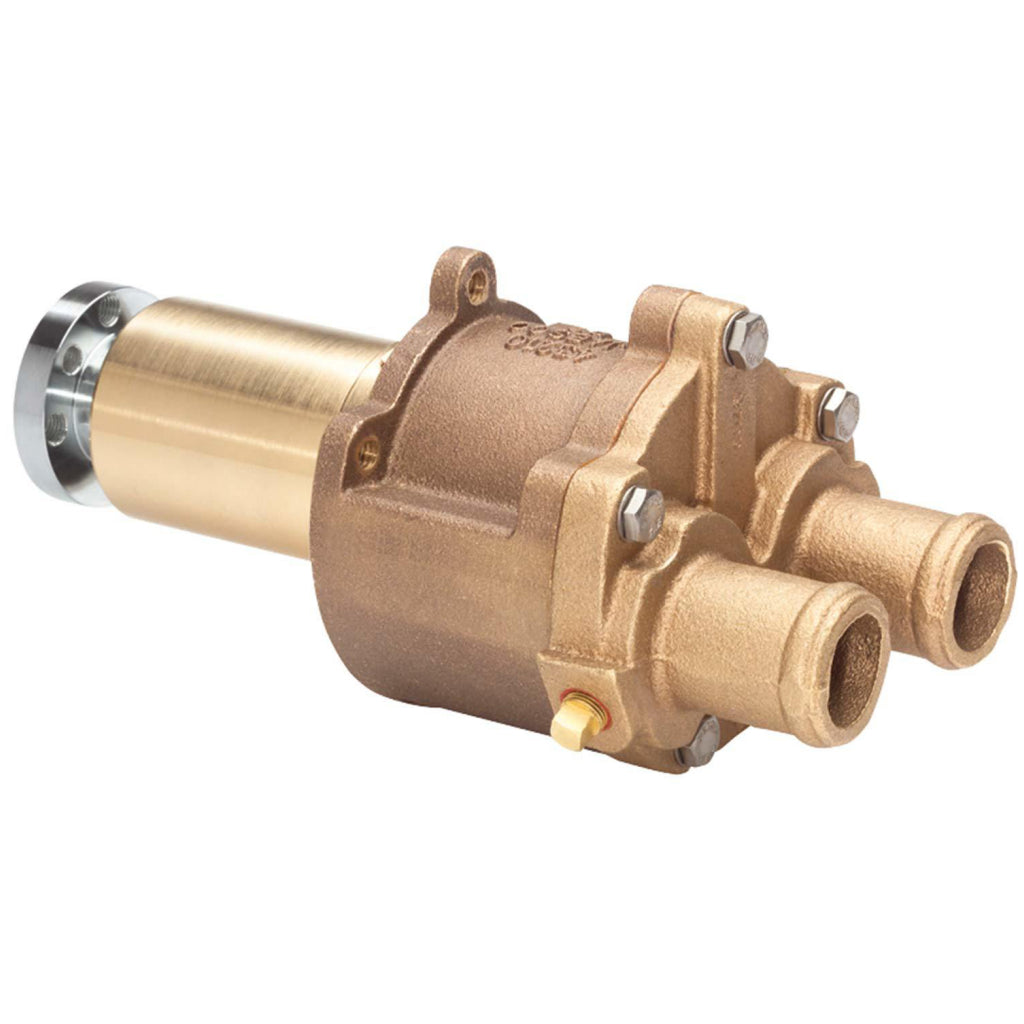

Jabsco Water Circulation Pump

This bracket or clamp mounted Jabsco engine driven water pump has been used primarily on MerCruiser engines, but may be found on others.

A front mounted cover plate integrates inlet and outlet ports and provides access for routine impeller changes and maintenance.

The bronze body and 316 stainless steel shaft provide excellent corrosion resistance for a long service life.

Features:

• Engine driven water pump
• Self-priming at slow RPMs
• Corrosion resistant bronze pump body
• 316 Stainless steel shaft for superior corrosion resistance
• Can be installed using a clamp style mounting bracket or bolt style mounting bracket

Specifications:

• CapacityVariable with RPM
• 33 Gallons per Minute at 2500 RPM
• Diameter1 1/4" Barb
• Dimensions4 1/2" Width x 4 1/8" Height x 9 5/32" Length
• FeaturesEngine Cooling Pump
• MaterialBronze Body
