C.Sherman Johnson Co.

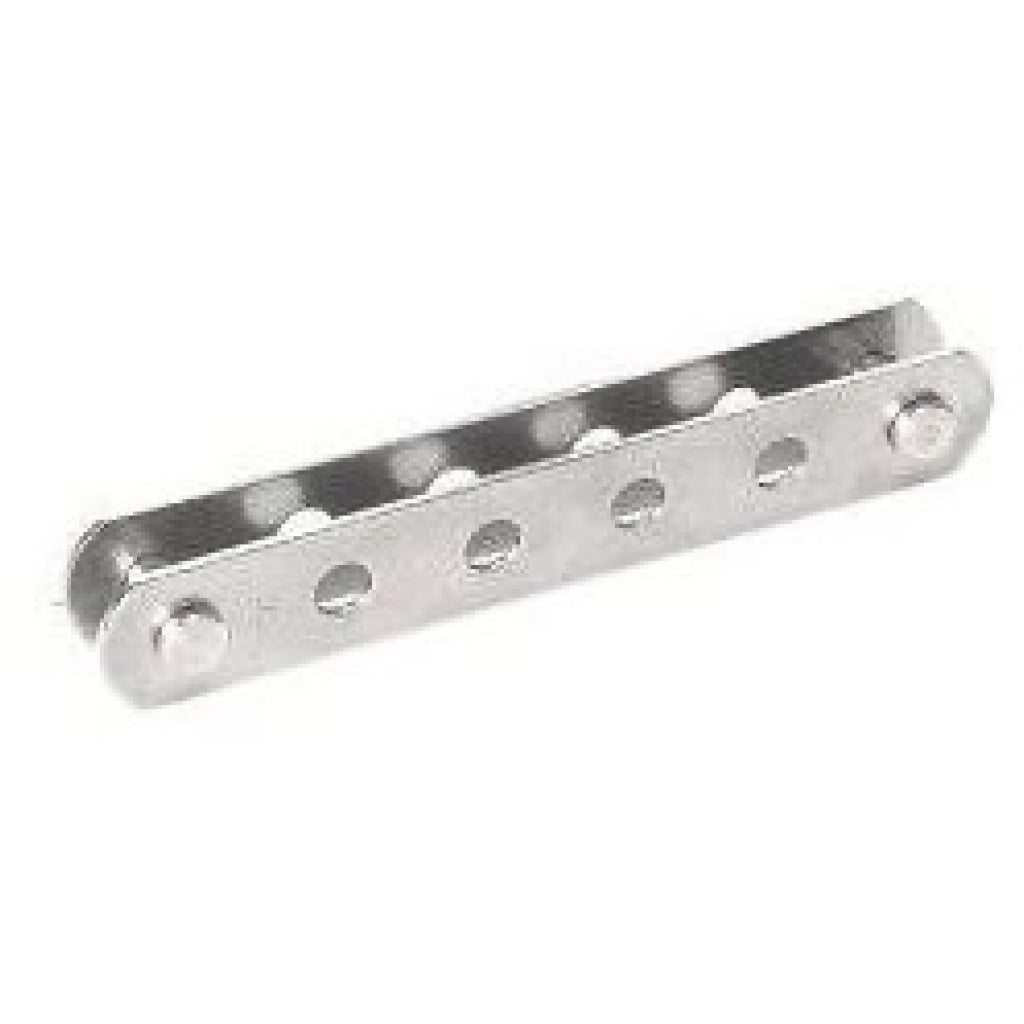

- Stay Extenders/Link Plates. These stainless steel plates are designed for extending short stays,or to replace a turnbuckle. All sizes include pins. T-316 Stainless Steel.
Johnson Part # | Pin Diameter | Max Pin to Pin | Safe Working Load |
---|---|---|---|
16-204 | 1/4" | 3 3/4" | 1000 lbs |
16-205 | 5/16" | 4 3/8"" | 1600 lbs |
16-206 | 3/8" | 5" | 2800 lbs |
16-208 | 1/2" | 5 5/8" | 4200 lbs |
16-210 | 5/8" | 6 7/8" | 5900 lbs |
