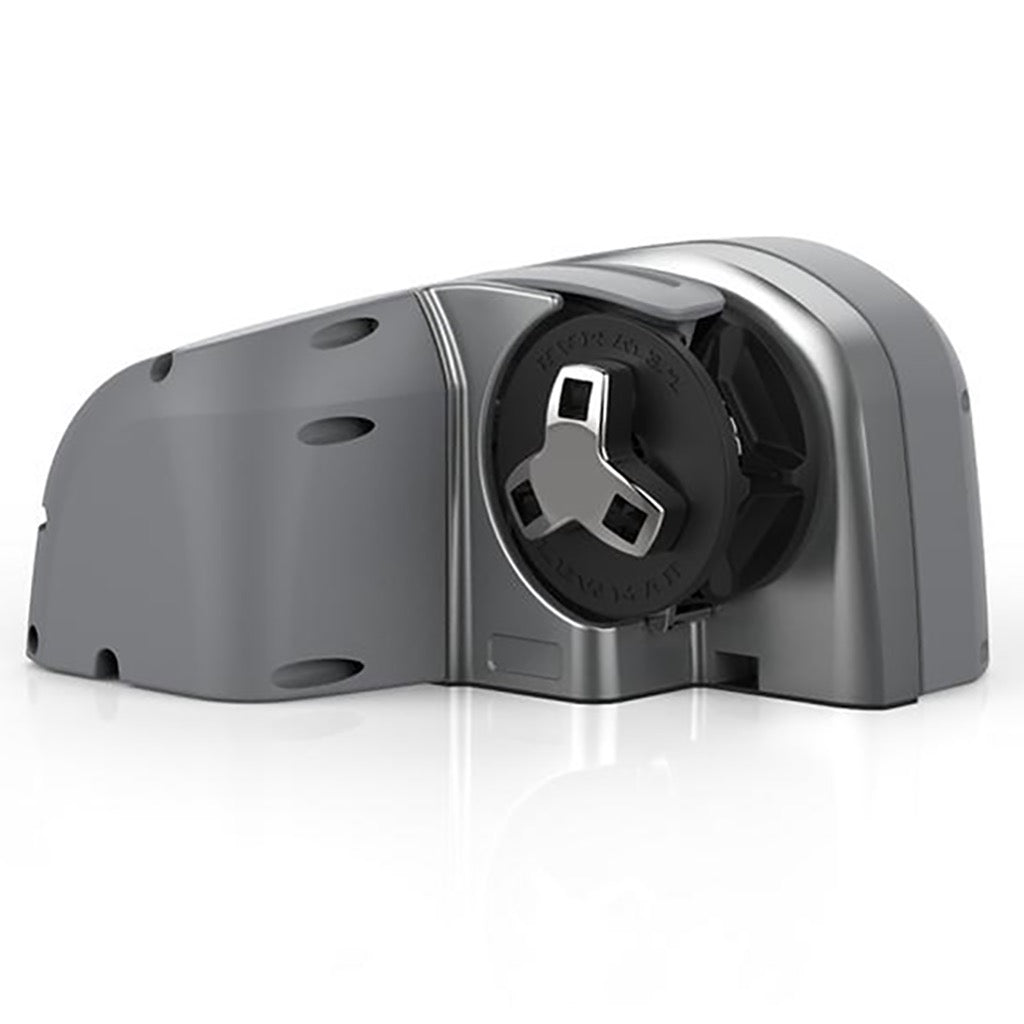

Lewmar HX1 Windlass Kit -5/16" G4 800 Watt

SKU# 69140033
$1,75999
Check Delivery Time

Lewmar HX1 Windlass Kit -5/16" G4 800 Watt may require an additional to 2 days to ship.

Shipping

Rigging Shoppe ships to Canada only. ALL prices listed on this website in Canadian dollars.

Shipping within 24 hours if possible. Delivery usually 2 - 5 business days in Canada.

Shipping charges will be visible before entering credit card information when ordering.

Learn about our complete shipping policy here.

The HX1 range combines fresh external & internal design giving you a brand new strong and reliable horizontal windlass range, using the latest inline motors and epicyclical gearboxes. HX also features a strong and durable anodized aluminium chassis designed to withstand years of use.

  • Motor 800w
  • Voltage 12V
  • Chain : 5/16 G4 - 8mm
  • Line : 1 /2 - 5/8 (3-strand and 8-plait)
  • Circuit Breaker : 90A Working Load: 266kg (586lbs)
  • Max pull: 1065kg (2347lbs)
  • Max Line Speed : 21 m/min (105pi/min)
  • Boats : up to 48 ft HX1
