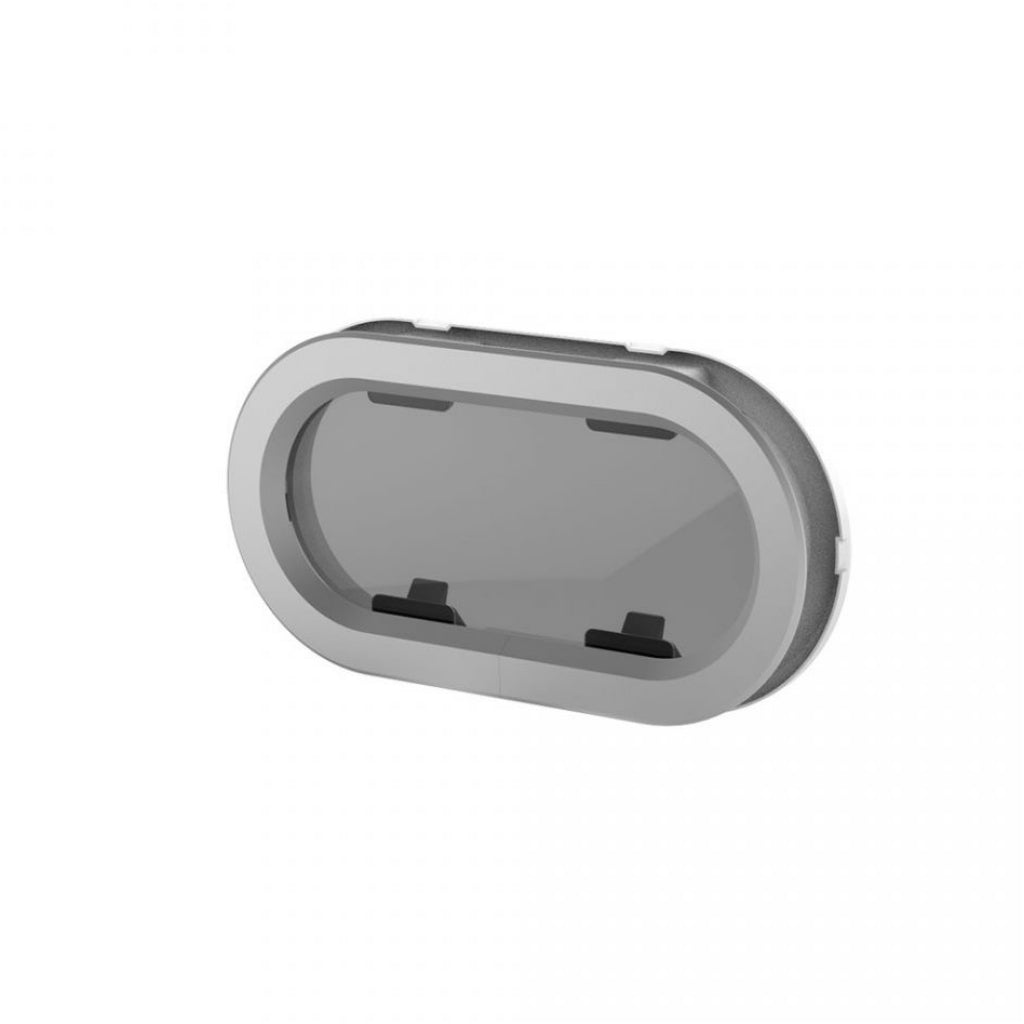

Lewmar Newsz 1re Round Portlight

SKU: 393180500
$50099

The Lewmar Newsz 1re Round Portlight offers unmatched style and value, seamlessly fitting with Lewmar's hatch range. It's designed for ease of use and installation, making it a favorite among sailboats globally. Trusted for its reliability and competitive pricing, this portlight enhances any marine vessel's aesthetics and functionality.

  • Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame.
  • Can be installed with sealant or closed cell PVC tape.
  • Supplied complete with flyscreen (except sizes 4L and 4R).
  • Full range of spare parts available.
  • All portlights are supplied with 12 off M5 x 25 screws for hull thickness 17-25 mm.
  • Opening angle at 21mm hull thickness is 165°.
Description Imperial Metric
Width (X) 7 1/2 in. 191.00mm
Length (Y) 14 7/16 in. 367.00mm
Height (Z) 5/32 in. 4.00mm
Radii (R) 2 7/16 in. 62.00mm
Width (X1) 6 3/4 in. 171.00mm
Length (Y1) 13 5/8 in. 347.00mm
Radii (R1) 2 1/16 in. 52.00mm
Weight 2.86 lb. 1.30kg.
Acrylic Window Thickness 1/4 in. 6.00mm
