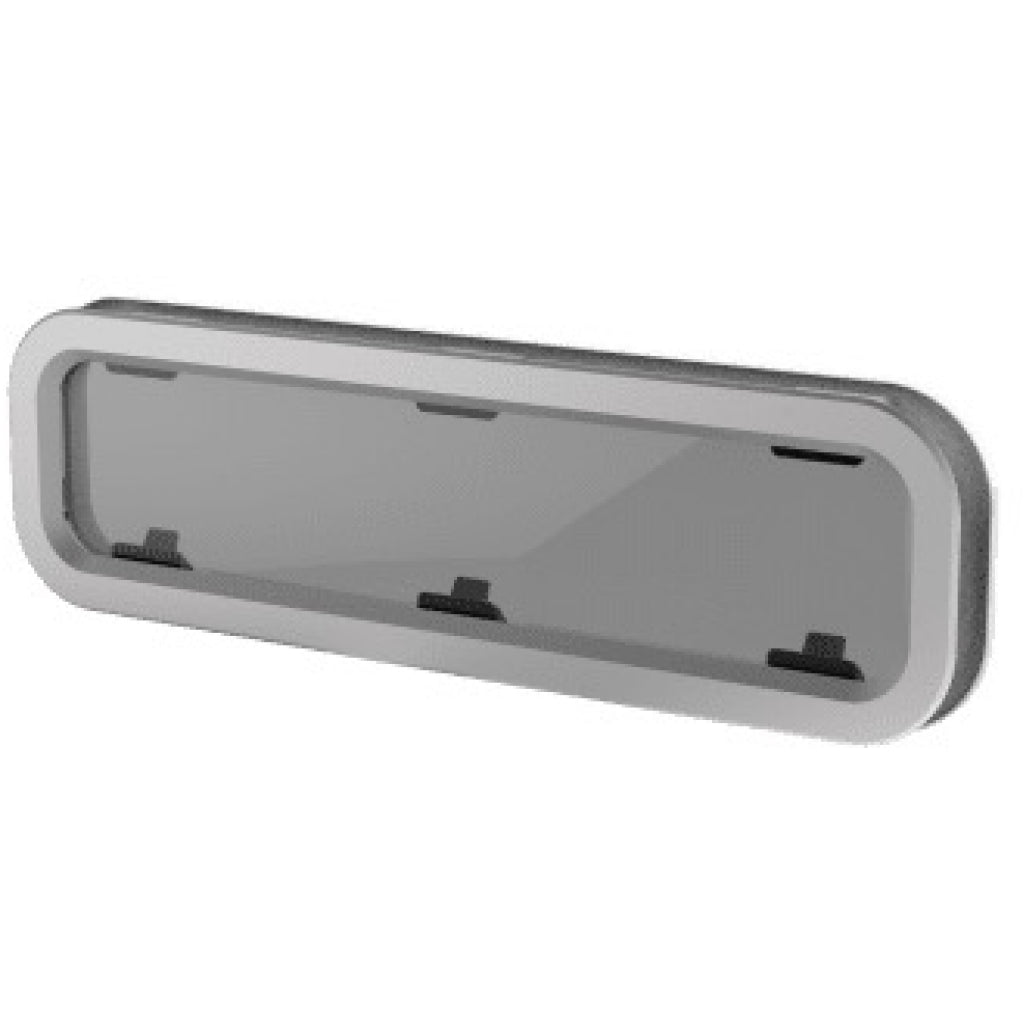

Lewmar Newsz4 Open Smoke/White Portlight *FA*

The Lewmar Newsz4 Open Smoke/White Portlight seamlessly fits with any Lewmar hatch, offering a stylish design at a competitive price. It's user-friendly and straightforward to install, enhancing your vessel with both elegance and practicality.

• Easily fitted by clamping the cabin sides between inner and outer frame with screws provided that are fastened into the outer frame
• Can be installed with sealant or closed cell PVC tape
• White ABS Plastic Trim
• Supplied complete with flyscreen (except sizes 4L and 4R)
• Full range of spare parts available

• Overall Width X(mm): 191
• Overall Length Y (mm): 646
• Overall Height Z (mm): 4
• Overall Radii R(mm): 62
• Cut-Out Width X1 (mm): 171
• Cut-Out Length Y1 (mm): 627
• Cut-Out Radii R1 (mm): 52
