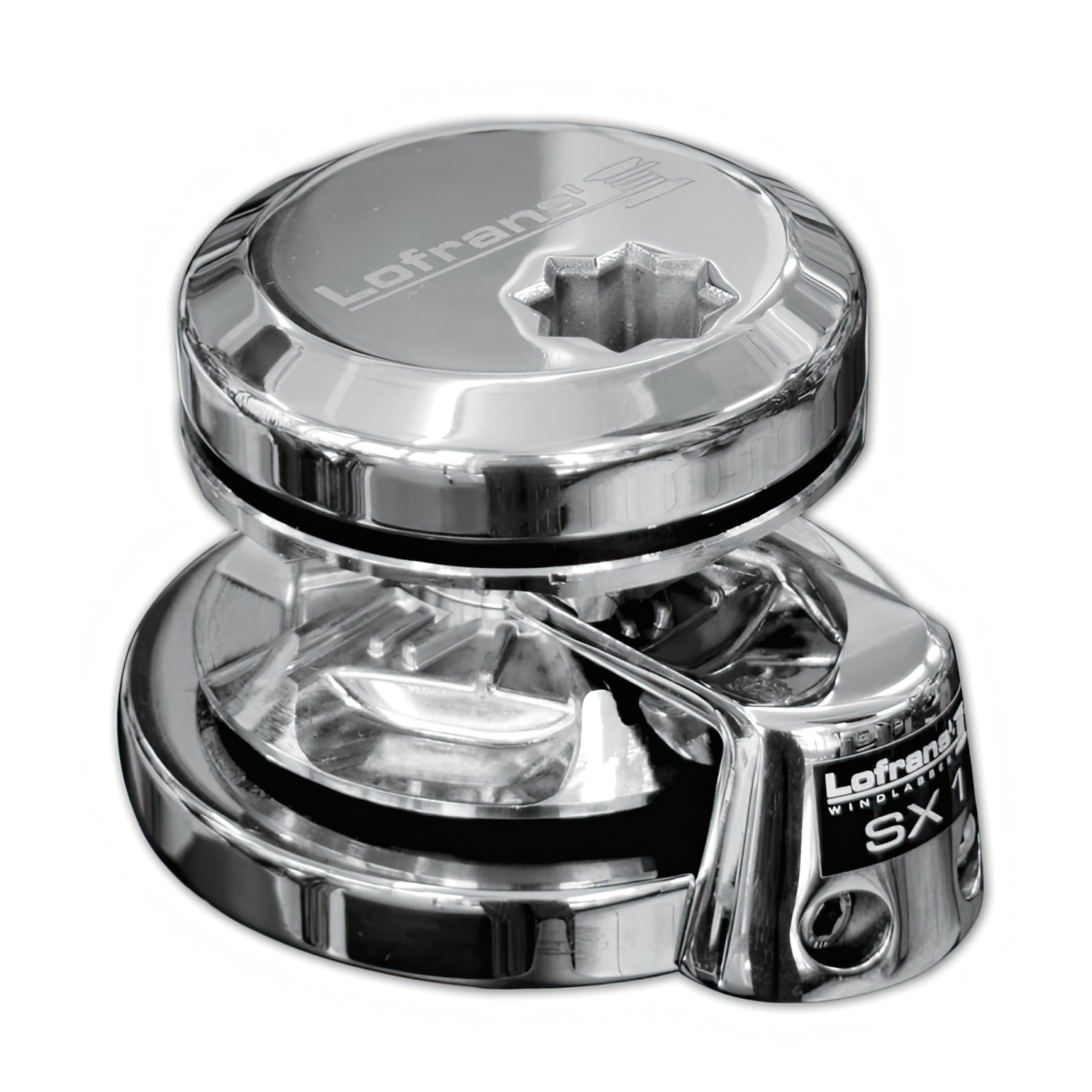

Lofrans Project SX-1 Windlass Lo-Pro, 500W, 1/4"HT
The Lofrans Project SX-1 Windlass Lo-Pro, 500W, 1/4”HT is designed for sail and motorboats ranging from 6m to 27m in length, offering reliable performance tailored to vessel size. This Lofrans windlass boasts innovative features, including a watertight stainless steel ball bearing base for improved functionality and zero maintenance. Its clutch system uses conical discs and a parallel shaft design, eliminating the need for keys while evenly distributing weight.
The electric motor and gearbox are connected by a specialized coupling for easier maintenance. A built-in sensor in the base and magnet in the gypsy enable seamless connection to a chain counter. With a compact, round base crafted from Marine AISI 316L stainless steel, this windlass combines durability, functionality, and premium design for marine applications.
| Motor Size | 500W |
| Maximum Pull | 630 |
| Amps at Working Load (A) | 95 |
| Line Speed at W.L. | 23 |
| Max Line Speed | 26 |
| Net Weight with Low Profile (kg) | 11 |
| Circuit Breaker | 636087 |
| Amps Work Load (A) | 75 |
| Power Supply | 12 |
| Type | Low Profile |
| Gypsy For Chain | 6 mm ISO 4565/ DIN 766 |
