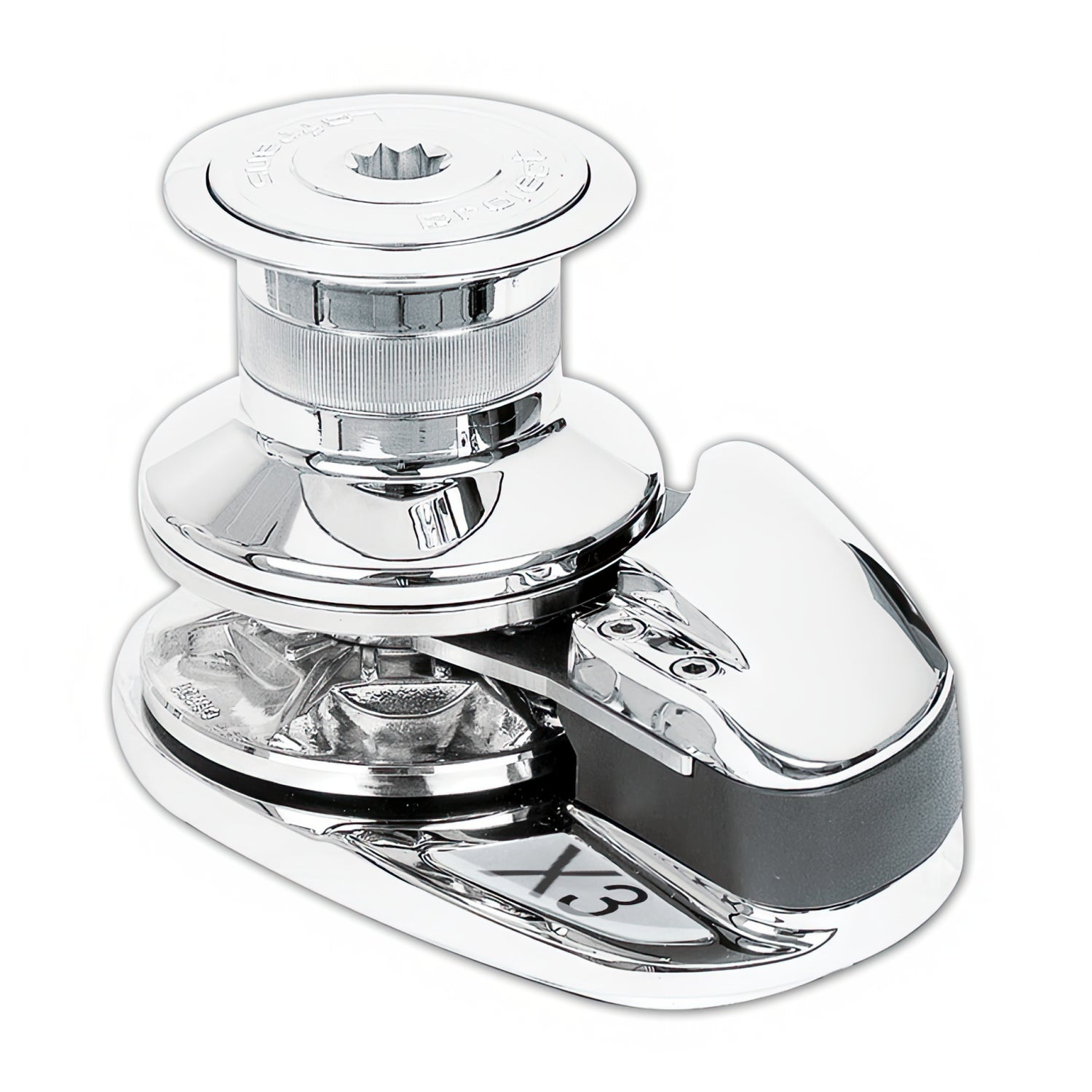

Lofrans Project X3 Windlass, Low Pro, 1700W 3/8"HT
The Lofrans Project X3 windlass, Low Pro, 1700W, 3/8”HT is a powerful and durable lofrans anchor windlass designed for sail and motorboats. Built with AISI 316L stainless steel, it offers superior corrosion resistance and reliability. Standard features include a watertight stainless steel ball bearing base for zero maintenance and enhanced functionality.
Its innovative clutch system uses conical discs and a parallel shaft to eliminate keys and ensure proper weight distribution. The electric motor and gearbox are connected by a specialized coupling for easy maintenance. A built-in sensor and magnet in the gypsy enable integration with a chain counter. Additionally, the manual override ensures the chain or rope can be recovered manually in case of electrical failure.
| Construction | Chromed Bronze |
| Motor Size | 1700 W |
| Chain size | 3/8" HT |
| Low profile or Drum | lo-pro |
| Power Supply (V) | 12V |
| Maximum Pull (kg) | 1600 |
| Working Load (kg) | 200 |
| Amps at Working Load (A) | 180 |
| Line Speed at Working Load (m/min) | 14 |
| Max Line Speed (m/min) | 32 |
| Net Weight Low Profile (kg) | 35 |
| Net weight with Drum (kg) |
