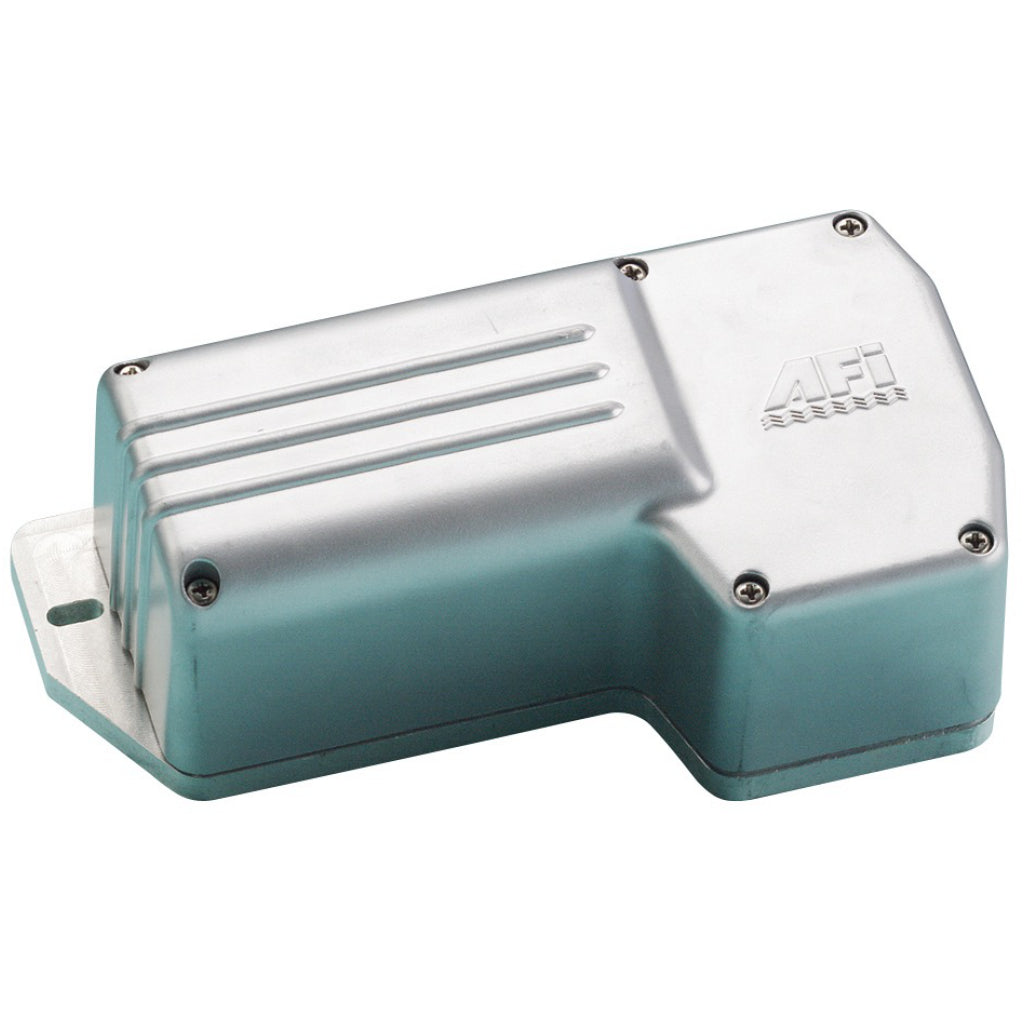

Marinco 1.5 Series Wiper Motor

2.5" shaft.

It features factory pre-set sweep angles of 80 or 110 degrees, with easy adjustment to 45 or 60 degrees.

Features

• Two speed motor
• Sealed 6" wire leads, 16 AWG
• Adjustable right or left self parking
• 0.625" diameter shaft (16 mm)
• Available in 12V and 24V models
• RF shielded circuitry

Specifications

• Length: 7.75''
• Width: 4''
• Depth: 2.75''
• Stall torque: 109 in-lbs (125 kgf/cm 12.3 Nm)
• Stall current: 11.5-13.0 amps
• No load current: 0.5-1.2 amps
