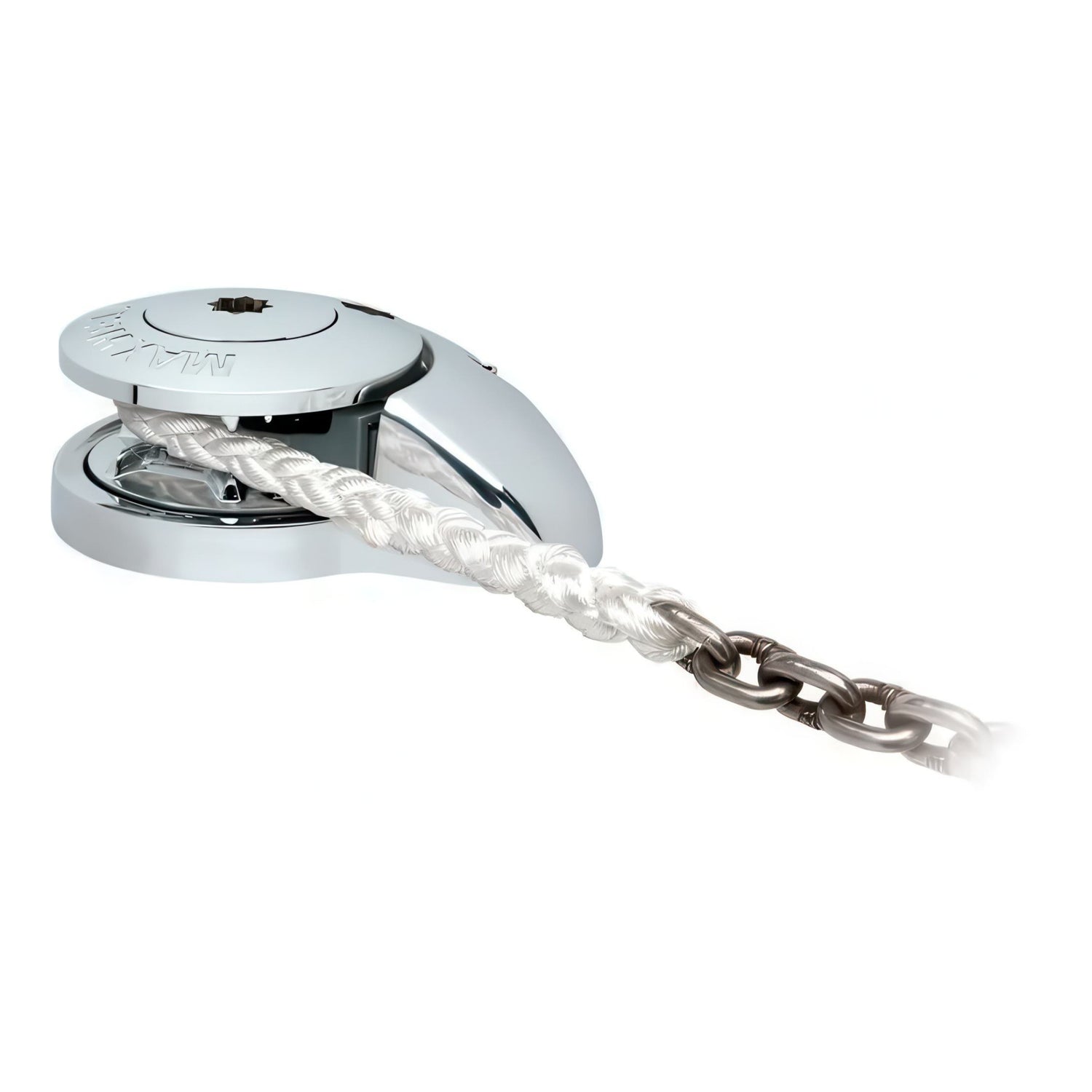

Maxwell Vertical Windlass- 1000W 5/16"HT 5/8" Rope
Freight Alert (*FA*): Oversized or overweight items have extra shipping charges. You will be informed of additional charges prior to shipping.

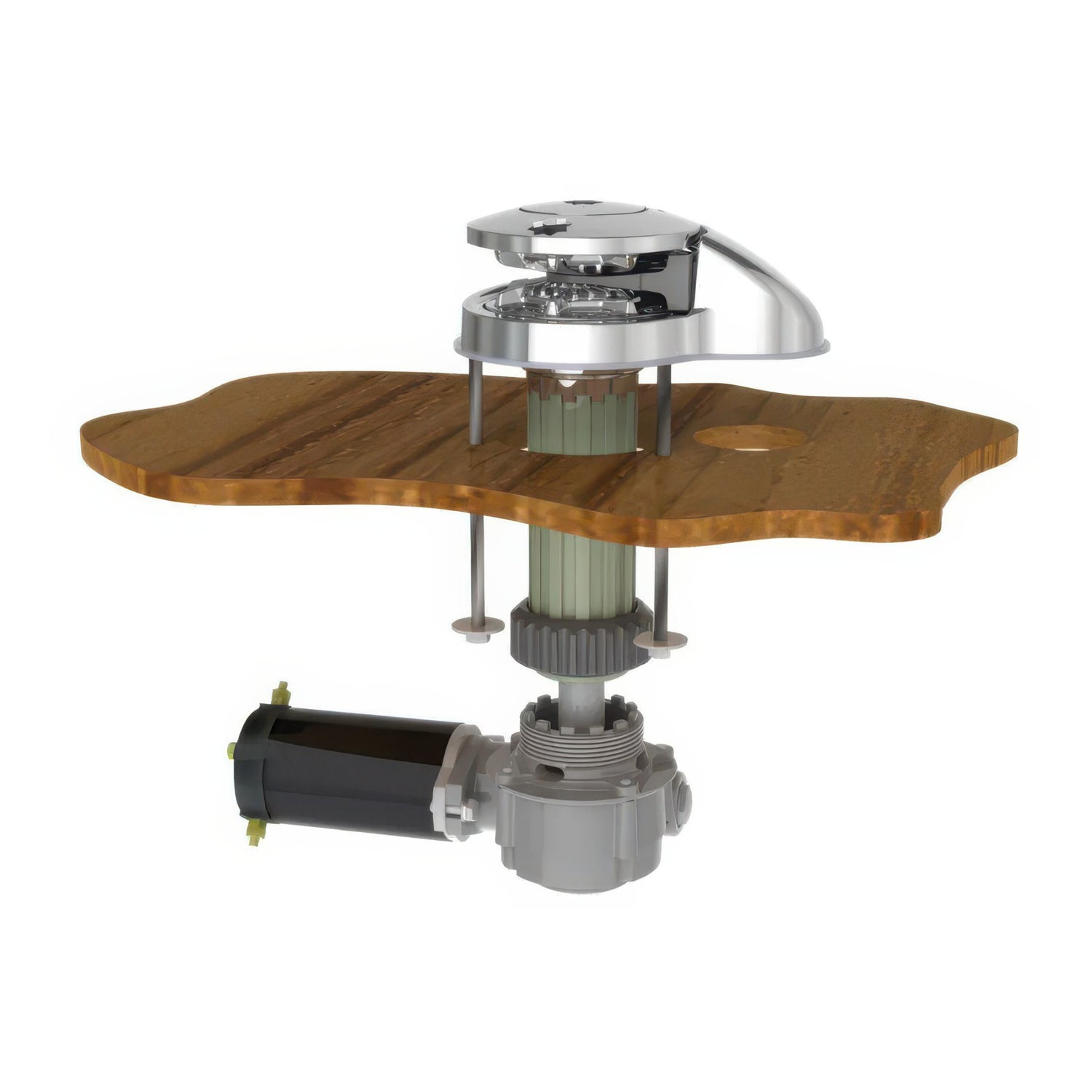

A high performance vertical windlass built on decades of engineering refinement, designed for use with chain and 8 plait nylon rope or all chain rode. The patented wave design gypsy accommodates a wide range of chain pitches for smooth, reliable operation. Engineered for durability and easy maintenance, it features tool free gearbox removal, manual override with free fall capability, and flexible installation across a range of deck thicknesses.
- Power: 1000W
- Type: Vertical rope and chain windlass
- Compatibility: Chain and 8 plait nylon rope or all chain rode
- Design: Patented wave design gypsy
- Maintenance: Tool free gearbox removal
- Features: Manual override and free fall capability
- Construction: Marine grade hard anodised alloy gearbox with sealed oil bath
- Includes: Top works, motor gearbox, and dual direction solenoid
| Model | RC8 (8mm – 5/16"") |
| Maximum Pull | 600kg / 1320lbs |
| Static Hold | 1200kg / 2640lbs |
| Chain size | 8mm – 5/16"" |
| Rope Size (Nylon) | 14mm – 9/16"", 16mm – 5/8"" |
| Chain Speed (Anchor Retrieval) | 32m/min – 105ft/min |
| Rope Speed (Anchor Retrieval) | 28m/min – 92ft/min |
| Power Supply (DC) | 12, 24 or 48VDC |
| Motor (Watt) | 1000W |
| Net Weight (DC) | 16.5kg / 36.3lbs |
