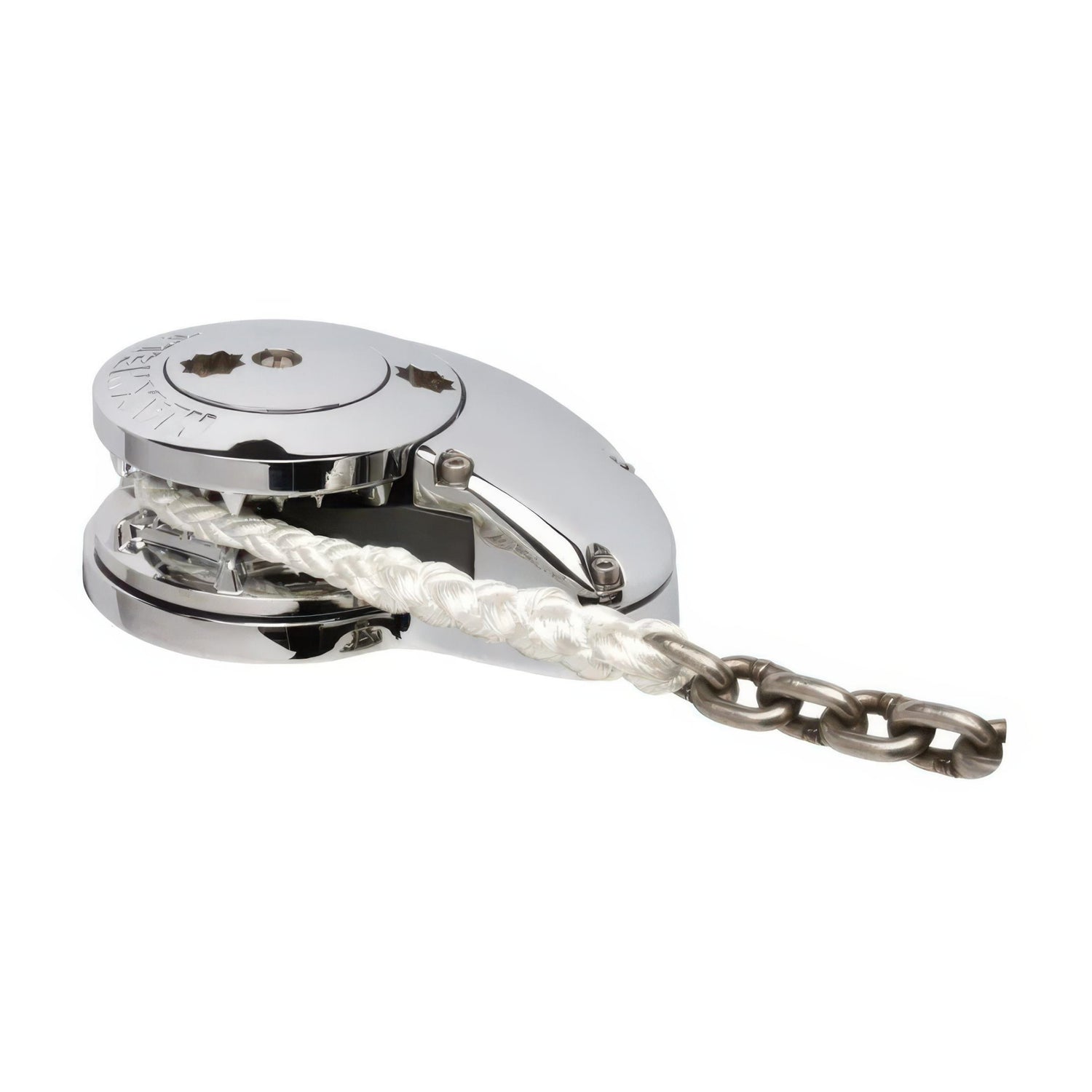

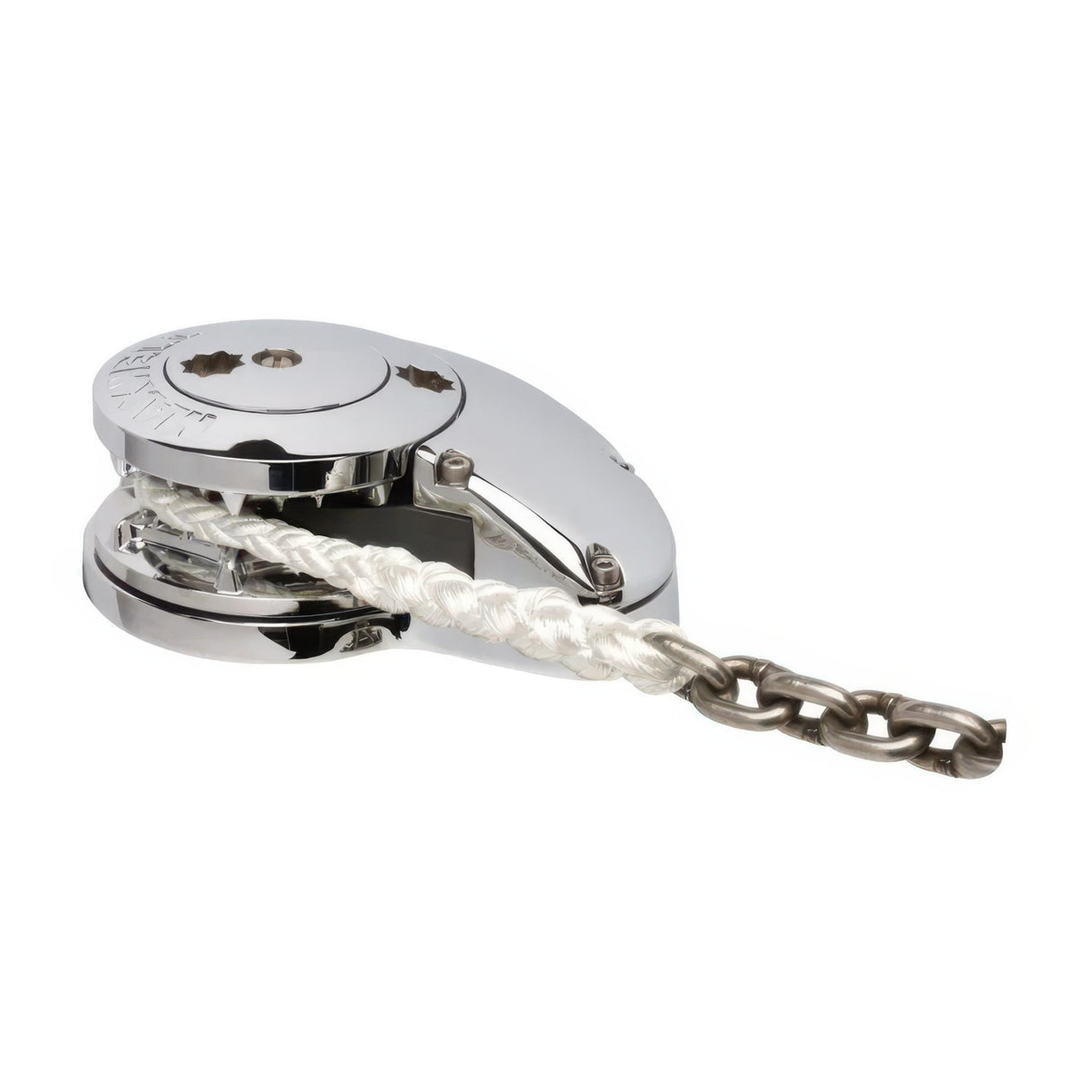

Maxwell Windlas RC10- 5/16" chain 5/8" rope 12volt
Freight Alert (*FA*): Oversized or overweight items have extra shipping charges. You will be informed of additional charges prior to shipping.
A durable stainless steel vertical windlass designed for boats from 30 to 48 feet, suited to chain and 8 plait nylon rope or all chain rode. Built for reliability and long service life, it features a simple, proven design with a patented wave design gypsy for smooth operation across a range of chain sizes. Engineered for performance and easy maintenance, it delivers dependable anchoring for cruising and light commercial use.
- Voltage: 12V
- Type: Vertical rope and chain windlass
- Boat size: 30 to 48 inches
- Chain compatibility: 8mm to 10mm (5/16"" to 3/8"")
- Rope compatibility: 14mm to 16mm (9/16"" to 5/8"") 8 plait rope
- Material: AISI 316 stainless steel
- Design: Patented wave design gypsy
- Maintenance: Tool free gearbox removal
- Features: Manual override and free fall capability

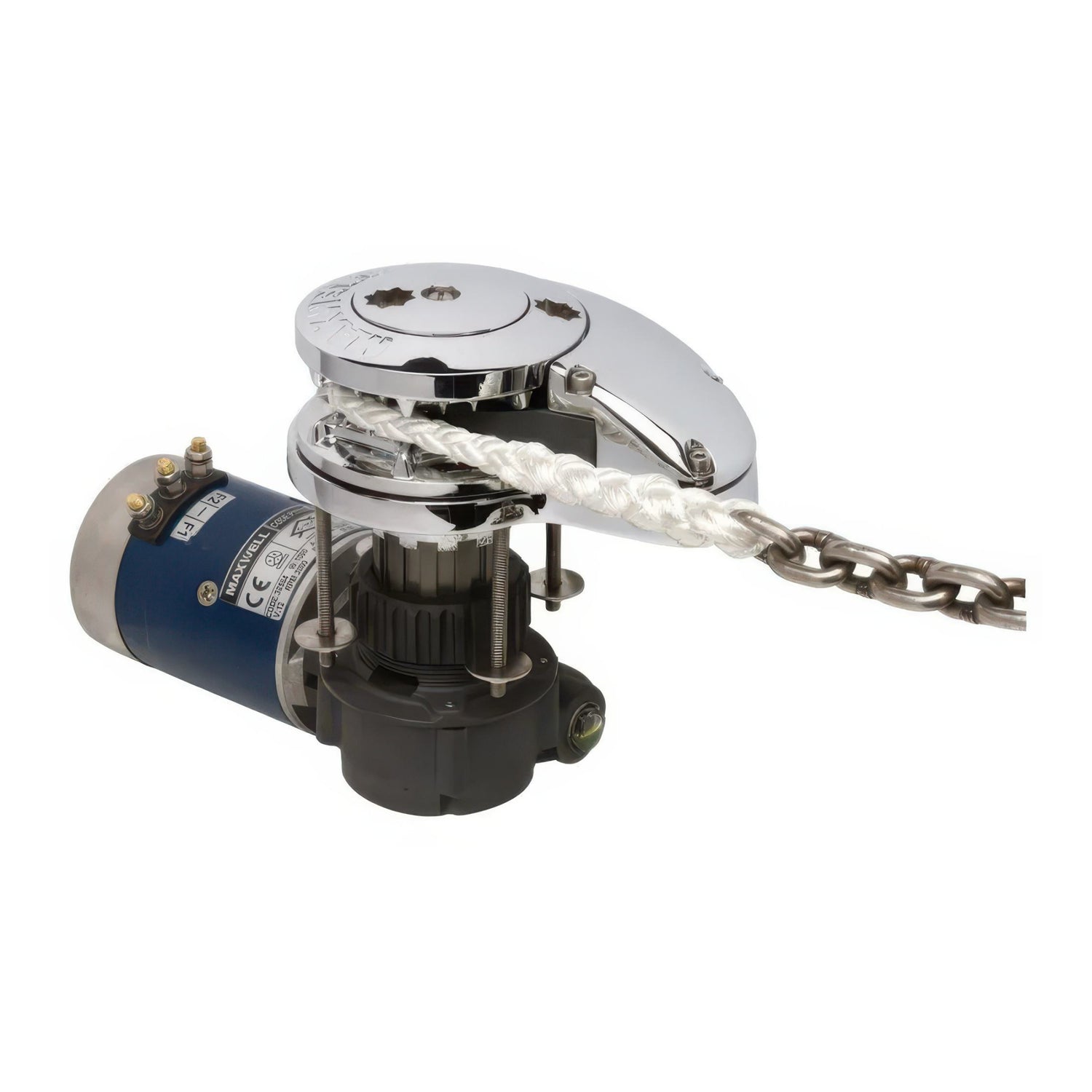

- Includes: Top works, motor gearbox, and dual direction solenoid
| Model | RC10 (8mm–5/16"") |
| Maximum Pull | 700kg / 1540lbs |
| Static Hold | 1500kg / 3300lbs |
| Chain size | 8mm / 5/16"" |
| Rope Size (Nylon) | 14mm – 16mm / 9/16"" – 5/8"" |
| Chain Speed (Anchor Retrieval) | 24m/min / 79ft/min |
| Rope Speed (Anchor Retrieval) | 20m/min / 65ft/min |
| Power Supply (DC) | 12, 24 or 48VDC |
| Motor (Watt) | 1000W |
| Net Weight | 19kg / 42lbs |
| Hydraulic Pressure | 138Bar / 2000PSI |
| Hydraulic Flow | 20l/min / 5.3USgal/min |
| Net Weight - Hydraulic | 14kg / 42lbs, 26kg / 57lbs |
