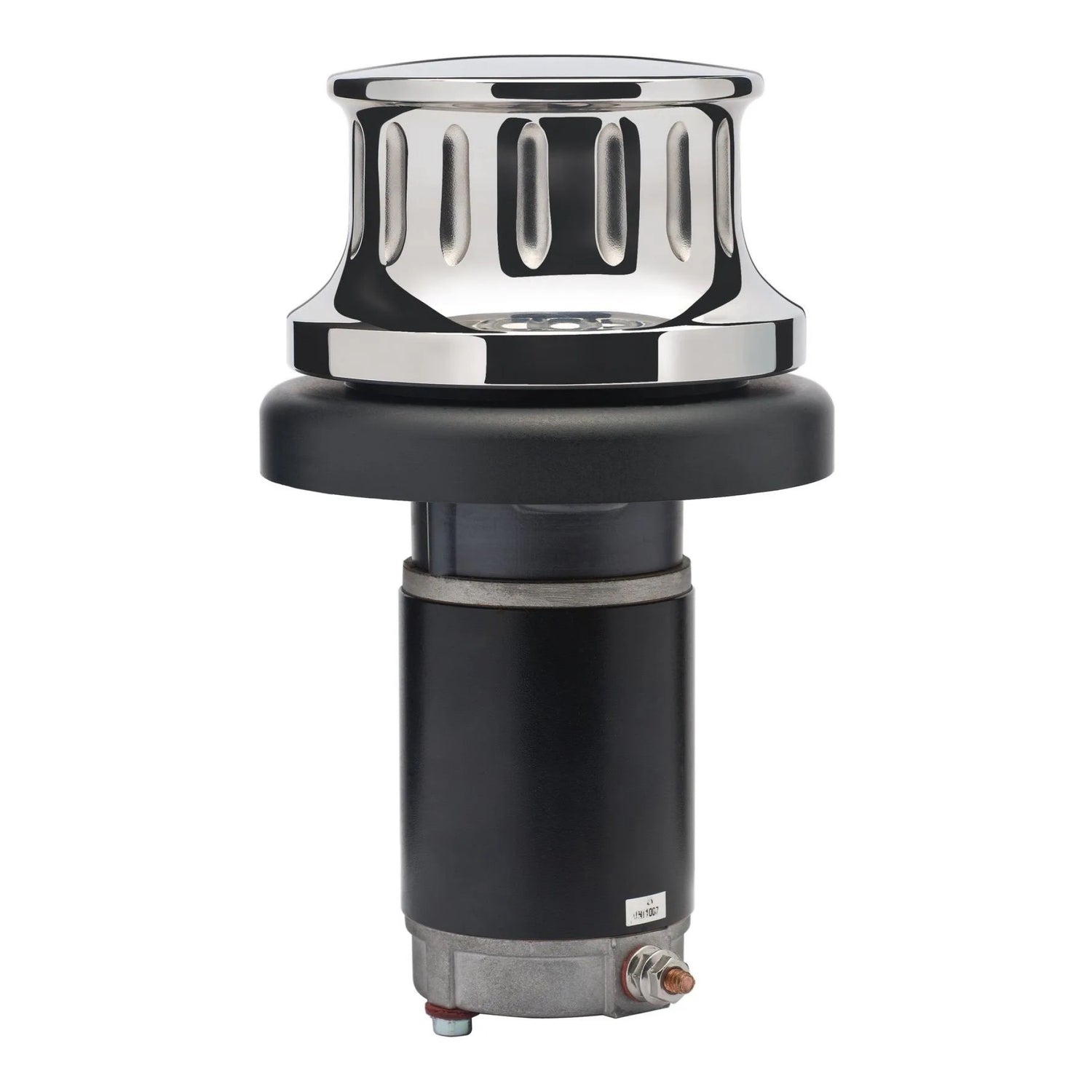

Maxwell Windlass (P9510005) - Capstan, 500 W, 12V
Freight Alert (*FA*): Oversized or overweight items have extra shipping charges. You will be informed of additional charges prior to shipping.
A compact vertical capstan and general purpose electric winch designed for use as an anchor winch, pot hauler, or davit winch. Its high power-to-weight design pairs a fully sealed gearbox with a vertically mounted permanent magnet motor to minimize below-deck intrusion, making it a smart choice for boats with limited space. The marine-grade alloy gear housing and AISI 316 stainless steel drum are built for marine use, and installation is straightforward since the unit does not need to be dismantled for fitting. Supplied as a single-direction clockwise unit, it comes with a deck foot switch, fastenings, template, and fitting instructions. Not recommended for hauling halyards.
- Power: 500W
- Voltage: 12V
- Configuration: Vertical capstan
- Use: Anchor winch, pot hauler, or davit winch
- Motor: Vertically mounted permanent magnet motor
- Gearbox: Fully sealed
- Drum: AISI 316 stainless steel
- Housing: Marine-grade alloy
- Direction: Single direction, clockwise
- Includes: Deck foot switch, fastenings, template, and fitting instructions
| Model | ANCHORMAX |
| Maximum Pull/Lift | 330 kg (740 lbs) |
| Speed at normal working load - 80 amps with 75 kg (165 lb) load | 21 m/min (69 ft/min) |
| Power Supply (DC) | 12V, 24V |
| Motor Power (Watt) | 500 |
| Net Weight | 8.5 kg (18.7 lbs) |
| Maximum Boat LOA | 10 m (33 ft) |
| Maximum Boat Weight | 4 tonnes |
