Description | Imperial | Metric |
Model | With spool | With spool |
Working load | 3306.93lb | 1.50ton |
Type of sails | For light sails (gennaker, code zero) and heavy sails (solent, staysail) | For light sails (gennaker, code zero) and heavy sails (solent, staysail) |
Lower terminal | Clevis snap shackle | Clevis snap shackle |
Upper terminal | HR D shackle | HR D shackle |
Anti twist torque rope Ø | Max. 3/8in | Max. 10.00mm |
Continuous line Ø | 3/8in | 10.00mm |
Weight / spool | 0.64lb | 0.29kg |
Weight / swivel | 0.28lb | 0.13kg |
Height / drum mechanism | 2 57/64in | 73.60mm |
Drum diameter | 4 23/32in | 120.00mm |
Height / swivel | 2 5/16in | 58.80mm |
Width / swivel | 1 7/32in | 31.00mm |

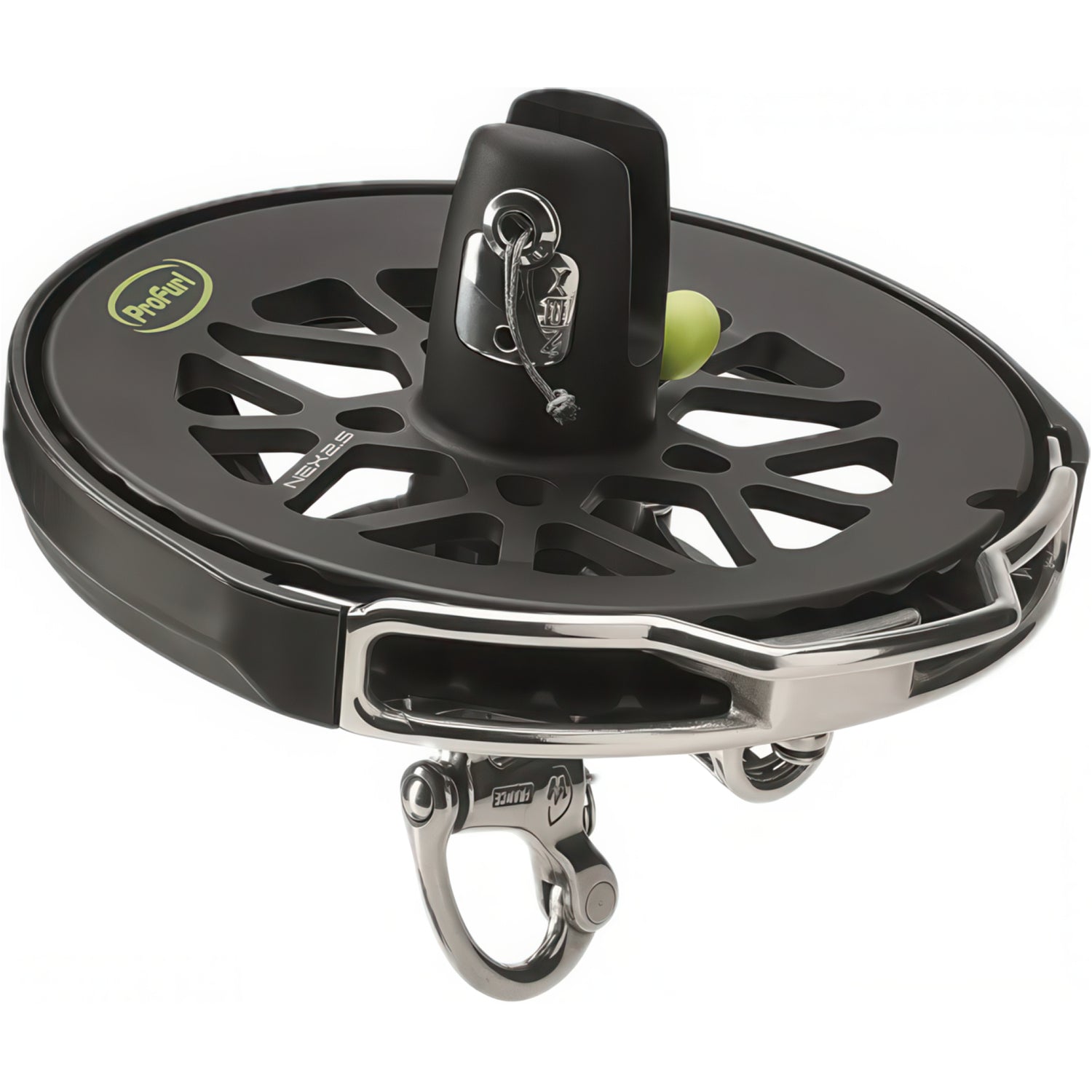

Item NEX 1.5
