The Nova Kool RT6 Freezer Box version includes an efficient Danfoss BD35 Compressor with 405 sqare inches of cold plate surface are.
Most often mounted horizontally, under the top of the ice box, it can also be mounted vertically if required. The Freezer Box is 14" wide x 6.75" high x 12.0" deep, 0.65 cubic feet of volume. Comes with an ice cube tray.
Applications include marine, ambulance, veterinarian, farm, food vending and Mobile RV.
The RT6 unit has a small foot print for easy mounting, with a 1 plate Freezer Box for maximum flexibility, and is thermostat controlled for a wide range of settings.
Construction is a powder coated galvanized base which is corrosion resistant and easy to clean. Fan cooled condenser increases efficiency while the DC compressor is quiet, vibration free, safe and dependable.
The pure DC unit minimizes RF noise and electrolysis and is designed to operate at a constant angle of 30 degrees.

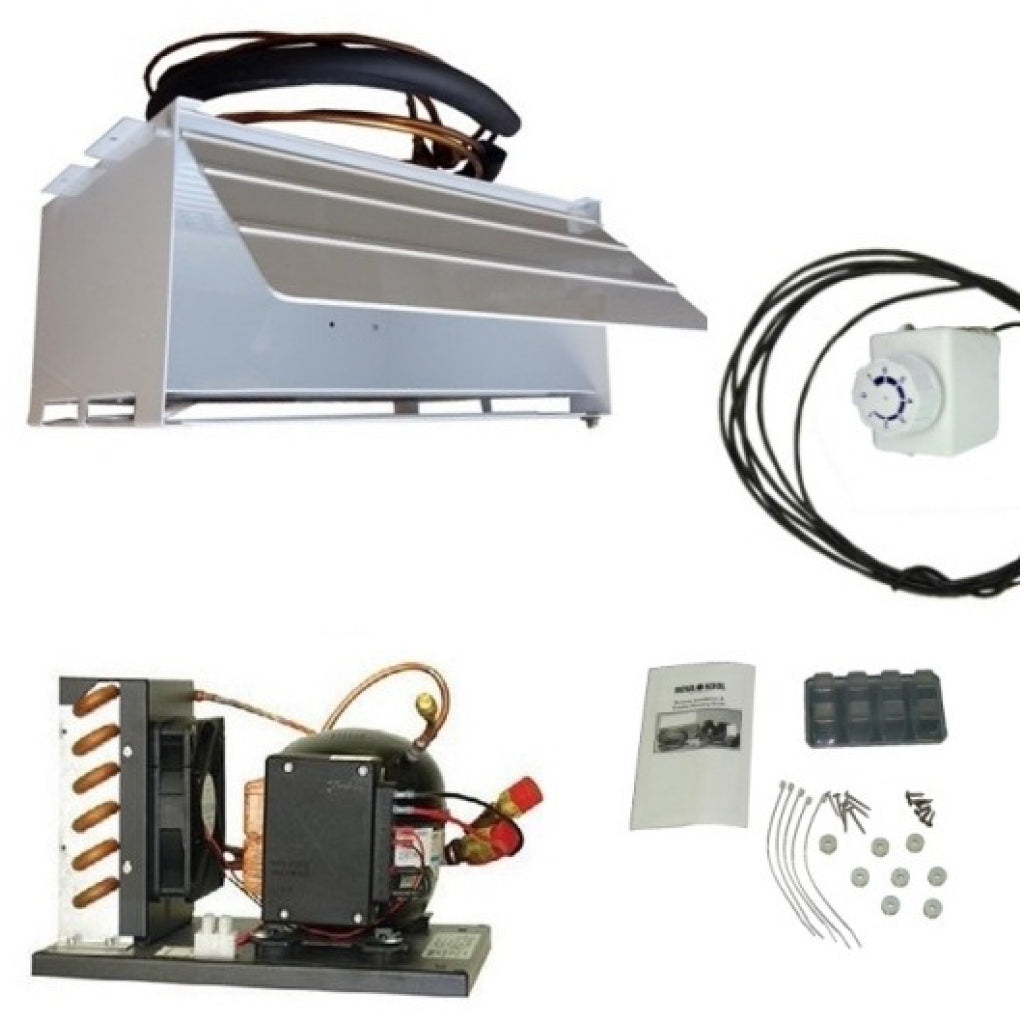

The unit is shipped with everything you need to complete the installation
Features
:- Self sealing couplings. (unit is precharged with refrigerant)
- Evaporator supplied with 12 ft line set
- Efficient air cooled condenser, will provide years of simple reliable service in the tropics.
- Condenser is sized specifically to ensure capacity in the hottest of climates. Variable speed compressor. (adjusted by changing the resistance in control circuit)
- 18 GA powder coated steel with a compact foot print.
- Backed with Nova Kool's Easy 2 Year Warranty Program on all components.
- Environmentally sound 134a refrigerant.
- Simple, efficient and reliable rollbond plate evaporators. Can in many cases be bent to conform to your requirements.
- Compressor designed to run continuously on a 30 degree heal.
- Low battery protection to help prevent full discharge of batteries.
- Low amperage fan.
- Voltage: 12V & 24V DC standard.
- Compressor Draw: 12 VDC - 4.2A / 24 VDC - 2.1A
