Designed for boaters seeking a compact and efficient freshwater solution, the Rainman 12V DC Portable Watermaker delivers up to 34 litres per hour using minimal power. Ideal for sailboats, powerboats, and remote marine applications, this low-draw system runs on 12-volt DC power and is well-suited for occasional use or as a backup desalinator.

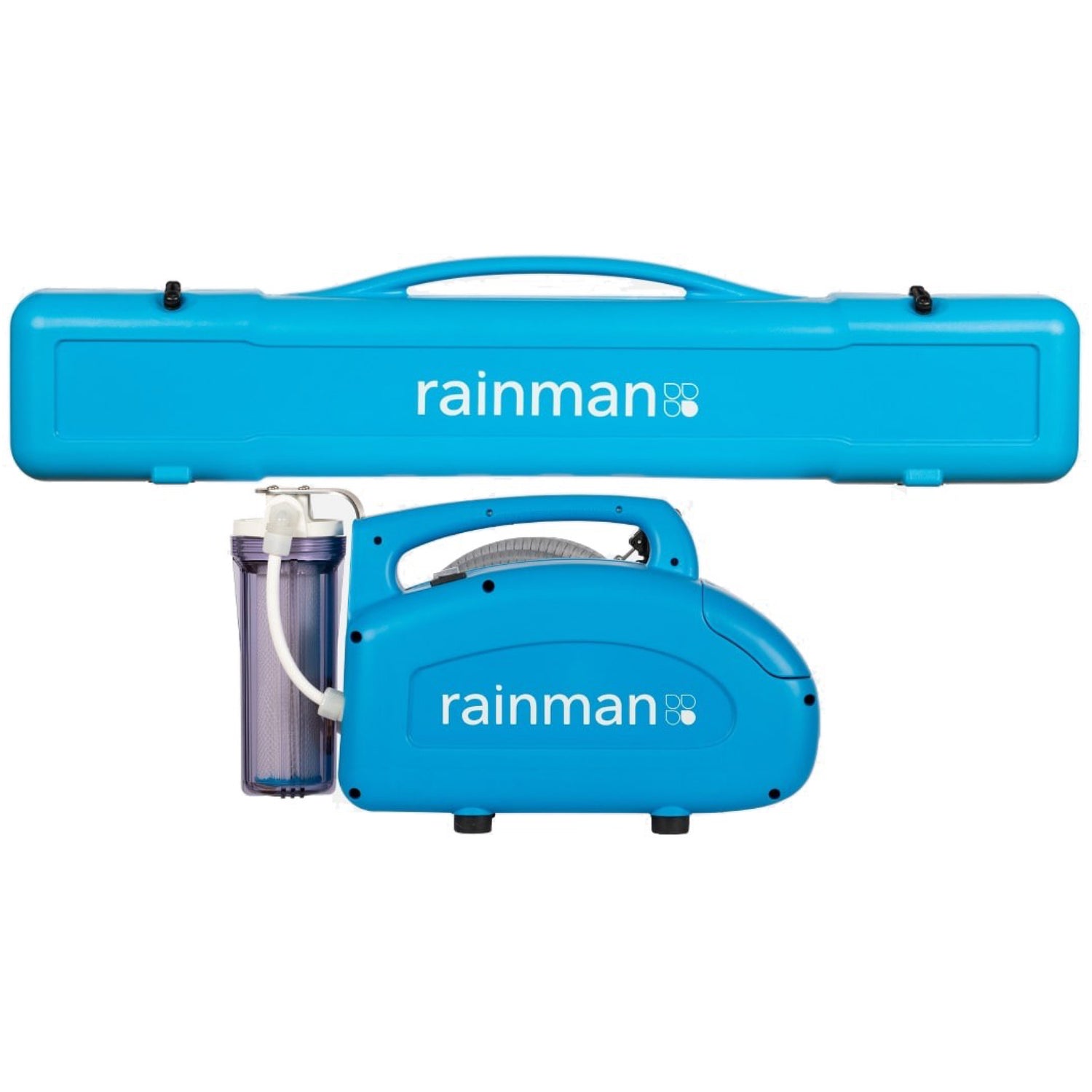

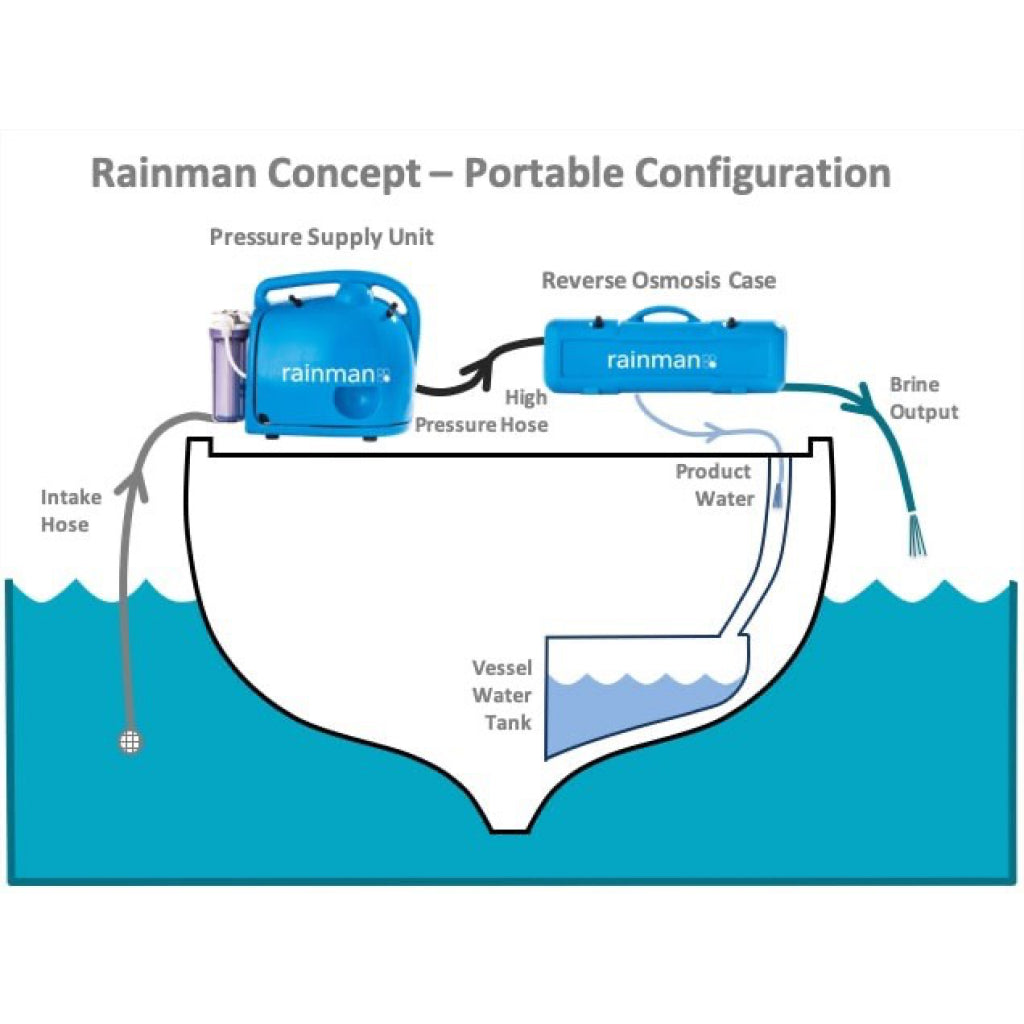

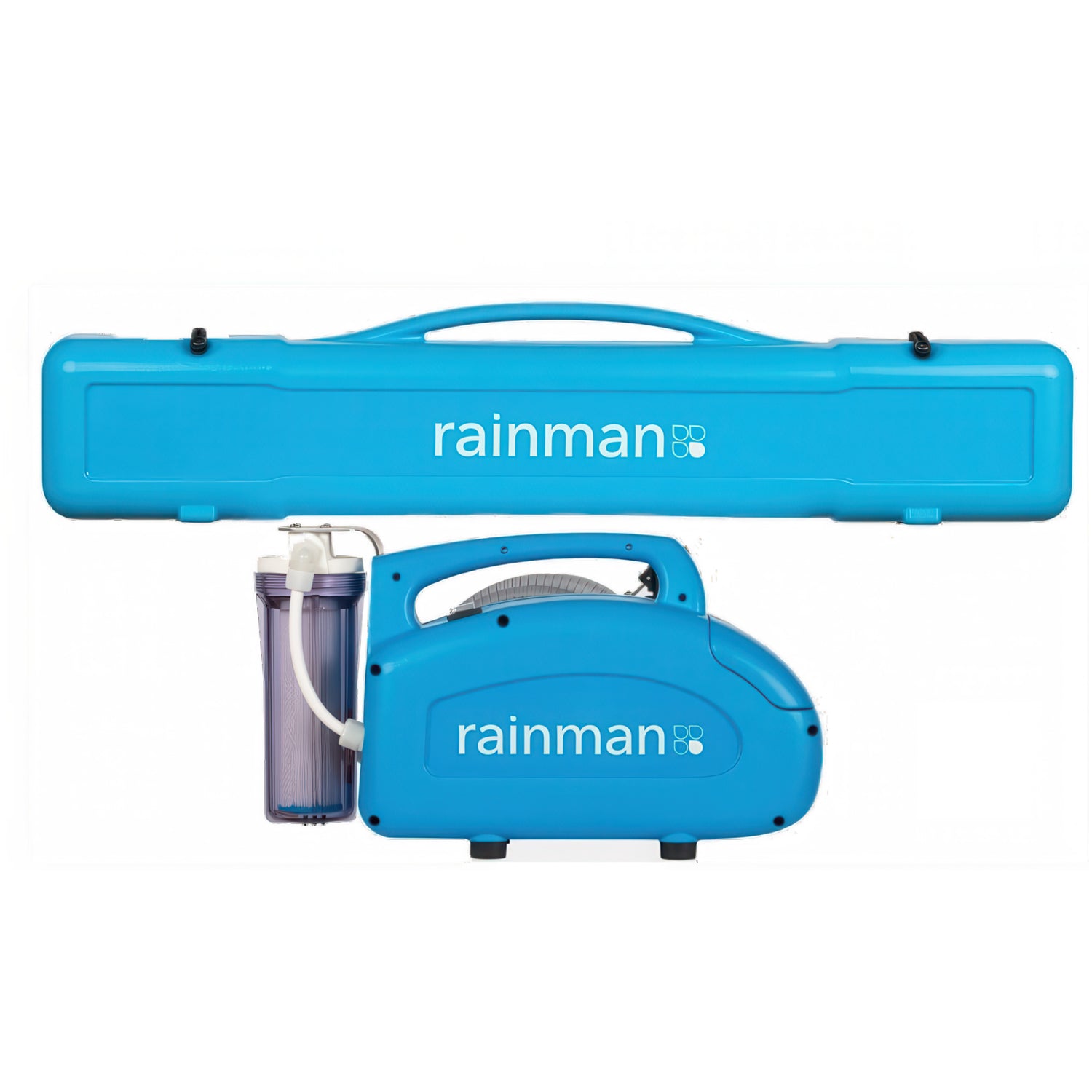

The system consists of two key components:
- Pressure Supply Unit (PSU): Draws seawater, filters sediment, and pressurizes the system
- Reverse Osmosis Unit (RO): Converts pressurized seawater into fresh potable water
Built around a durable triplex plunger pump, this watermaker is designed for simplicity, low maintenance, and reliability. While portable in design, many boaters choose to install this model due to its lower power needs and shorter cable requirements.
| Output Expectations | 26 - 34 lph / 7 - 9 gph |
| Enclosure | Two part system, pressure supply unit (PSU) and reverse osmosis unit (RO) |
| Pressure Supply Unit (PSU) | Case of sturdy injection moulded polypropylene |
| RO Membranes | One 2.5" x 40" seawater membrane |
| Reverse Osmosis Unit (RO) | Case of injection moulded polyethylene, strengthened with fibreglass reinforced nylon |
| High Pressure Pump | General Pump / Rainman WMR triplex plunger pump |
| Operating Pressure | 55 bar (800 psi) in seawater |
| Pressure Relief Valve | Integrated General Pump 316SS |
| Prefilter | 5 micron |
| Lift Pump | Integrated Rainman bronze flexible impeller |
| Vertical Water Lift | 2 metres (6 ft) |
| Control Panel | N/A - Can convert to installed unit |
| Autoflush | N/A - Can convert to installed unit |
| Power Source | 12VDC |
| Power Use | 400 Watts |
| Current Draw | 30 Amps 12VDC |
| Motor Type | Permanent magnet TEFC DC |
| Plug Type | Anderson Style |
| Power Cord Length | 1.4 metres (4.5 ft) including battery connectors, AWG 8 |
| Subjective Sound Level | Soft hum |
| Measured Sound Level (6 metres in open lot) | 58dB |
| HP Hose | 5 metre (16 ft) |
| Product Water Hose | 3 metre (10 ft) 10 metre (33 ft) extension (8mm OD) |
| Brine Waste Hose | 3 metre (10 ft) brine waste discharge (10mm OD) |
| Intake Hose | 5 metre (16 ft) fitted with one way valve to remain primed (1/2" ID), with detachable strainer |
| Impeller | Included in pump (replacement Rainman MI813 or Jabsco Profile D 22405-0001-P) |
| 5 Micron Prefilter | 1 in housing 4 spares, 10" x 2.5" pleated poly |
| 20 Micron Prefilter | N/A |
| Activated Carbon Filter | N/A |
| Pickle Solution | 1 kg (2.2 lb) sodium metabisulfate powder |
| Valve / Gauge Control | Integrated in RO unit |
| Low Pressure Gauge | N/A |
| Salinity Sensor | Optional hand held HM Digital COM-80 |
| Product Water Flow Meter | Pop-up acrylic plastic analogue flow metre - 40lph/10gph |
| Plumbing Installation Kit | Optional |
| RO Unit Dimensions | 1,180 x 250 x 130mm (23.6 x 9.8 x 5.1") |
| Pressure Supply Unit Dimensions | 600 x 375 x 270mm (23.6 x 14.8 x 10.6") |
