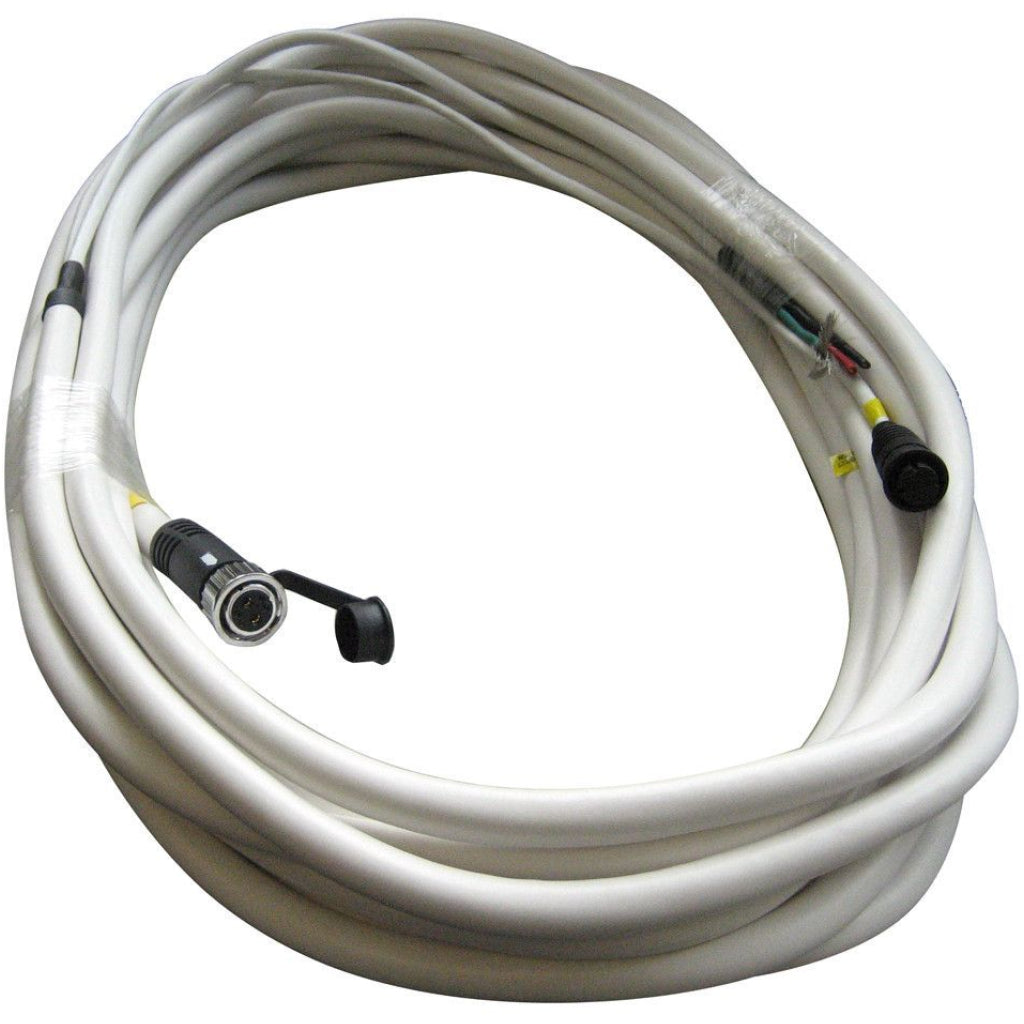

Raymarine 5m Digital Cable - with Raynet

• Raymarine Digital Radar Cable
• Includes Raynet Connector
• Length: 5 meters

Note : Digital Radar Cables can be used with Digital Pedestals and Digital Radomes

Inter-Unit Cable Information:

• The inter-unit cable is fitted with an 8-way plug and power cores (covered with a clear protective sleeve) for connecting to the scanner
• The length of the cable supplied should be sufficient to complete the cable run on most small boats
• For longer runs, additional or replacement cables are available
• These cables have four power cores to minimize voltage drops over the longer cable run
• The maximum inter-unit cable length is limited by the minimum supply voltage, the scanner type (18" or 24" Radome), and the cable type (2 or 4 power cores)
• Boats with 24 V DC power systems can use any combination of inter-unit cables
• Optional cable lengths available are:
• Part No. M92668 - 15 m Heavy extension cable
• Part No. M92669 - 25 m Heavy replacement cable
