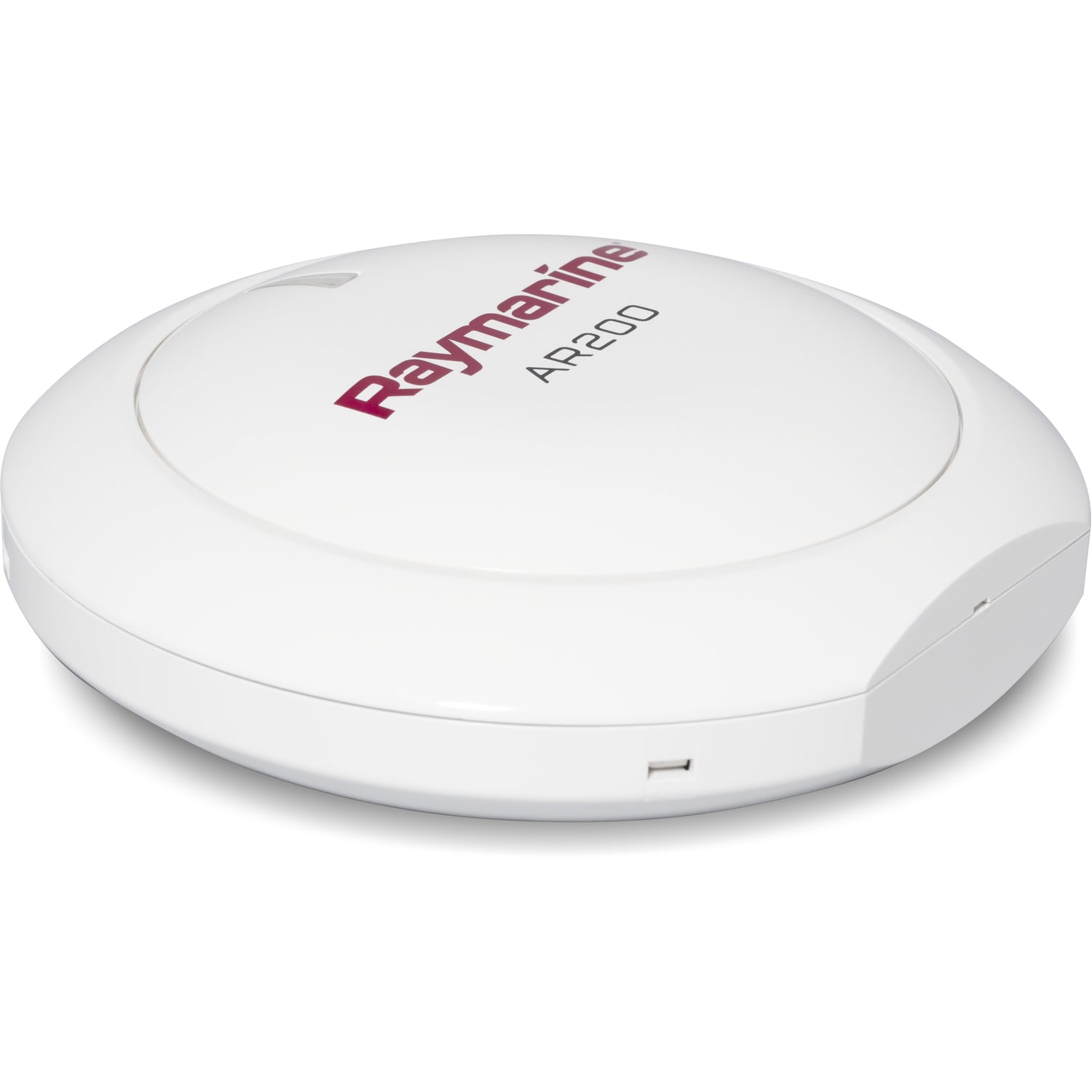

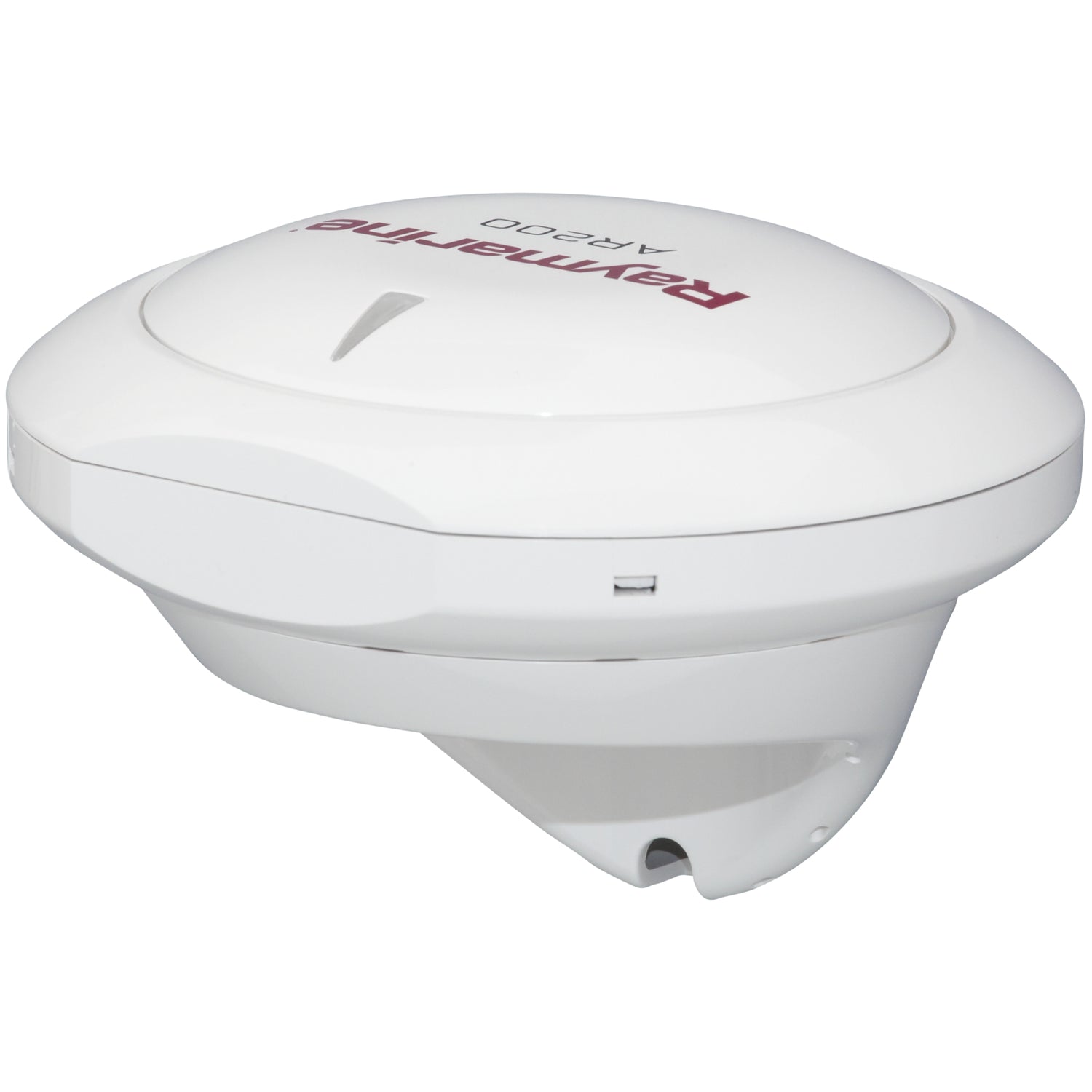

Improve navigation with Raymarine AR200 Augmented Reality Stabilization. This advanced module pairs GPS, AHRS, and video stabilization to supercharge Axiom chartplotters with ClearCruise AR features. Get precise location, heading, and vessel attitude data in real-time.

Enhanced Situational Awareness

View key navigational elements as rich graphics on HD video. Identify AIS-equipped marine traffic and charted aids for safe cruising.

Quick Identification of Marine Traffic

Receive color-coded AIS labels for instant vessel identification and risk assessment, ensuring you can recognize other ships effectively.

Navigate Complex Scenarios

Quickly understand chart objects with ClearCruise AR, showing the exact location of your saved waypoints and marks.

See Real-World Waypoints

• Easily visualize channel markers and other navigation aids, especially beneficial on days with low visibility.

• Geodetic Datum: WGS-84
• Satellite Differential Type (SBAS): WAAS (United States), EGNOS (Europe), MSAS (Japan), GAGAN (India), QZSS ready (Japan)
• Channels: Simultaneously track up to 28 satellites
• Antenna: Internal
• GNSS (GPS) satellite system compatibility: GPS, GLONASS, Galileo ready, Beidou ready
• Sensitivity: Cold start -147 dBm, Re-acquisition -160 dBm, Tracking -164 dBm
• Signal acquisition: Automatic
• Differential acquisition: Automatic
• Operating frequency: 1574 MHz to 1605 MHz
• Update rate: 10 Hz
• Position accuracy with SBAS (95%): < 5 m
• Time to first fix from hot start: < 45 seconds
• Time to first fix from cold start: < 2 minutes (< 60 seconds typical)
• Position accuracy without SBAS (95%): < 15 m
• Speed accuracy (95%): < 0.3 kt
• Operating voltage range: 9 V dc to 16 V dc (protected up to 32 V dc)
• Power consumption: 30 mA Max
• Nominal supply voltage: 12 V dc (Supplied by the SeaTalkng network)
• LEN (NMEA 2000 Load Equivalency Number): 1
