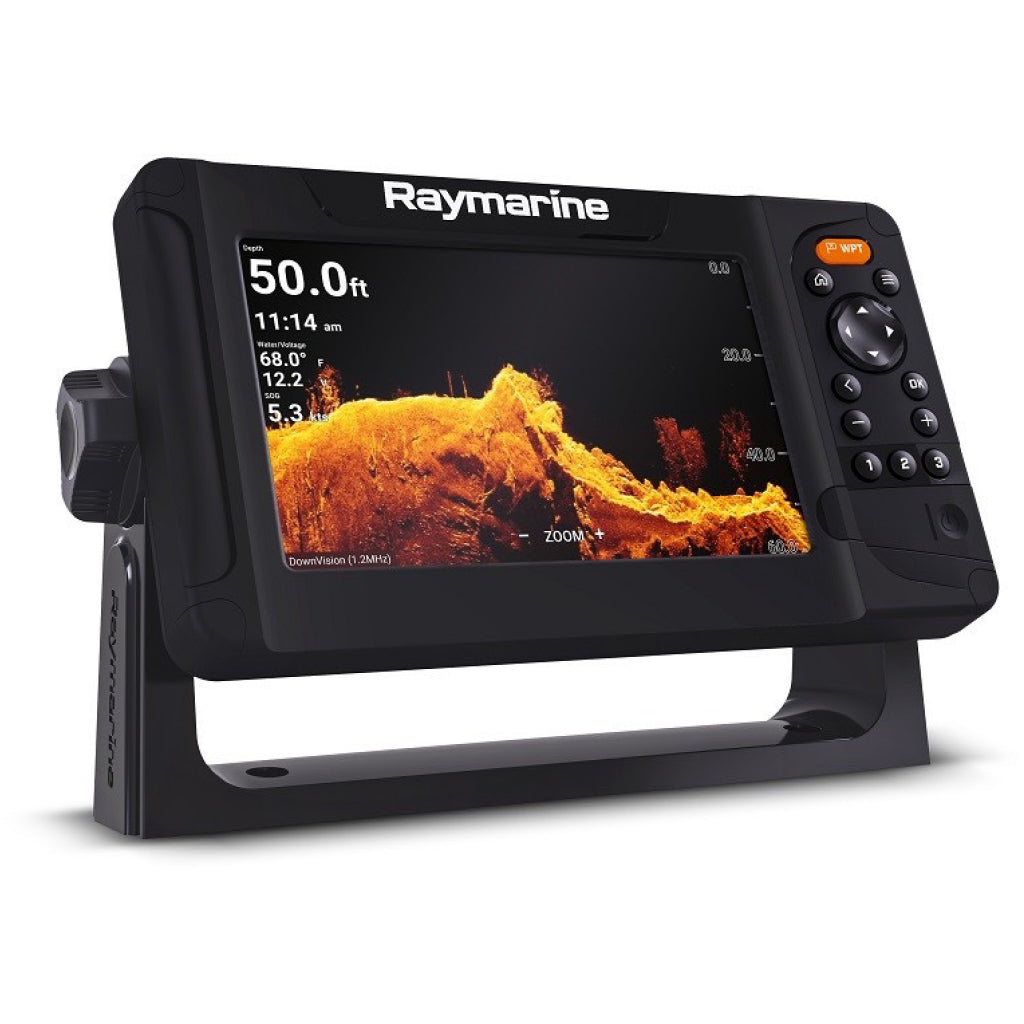

Maximize your fishing potential with the Raymarine Element 7HV No Ducer, complete with Lighthouse Charts. Ideal for anglers seeking an edge, this device offers HyperVision 1.2 MHz high-res sonar for unparalleled underwater imaging. Experience crisp views of marine structures, flora, and fish using cutting-edge DownVision, SideVision, and RealVision 3D sonar technologies. The Raymarine Element 7's robust quad-core processor ensures rapid chart updates and smooth 3D imaging, letting you focus on reeling in the catch rather than navigating menus. Intuitive keypad controls and a streamlined user interface make operation effortless.
Mark your favorite fishing spots easily with a dedicated waypoint key, and generate custom depth maps with RealBathy. Stay ahead and fish smarter with the Raymarine Element 7.
- High-visibility sunlight viewable 7" display
- Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
- Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
- Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
- 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’
- Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
- Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
- Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live support
- User-programmable keys allow quick access to most-used configurations
- Comes with Raymarine LightHouse NC2 with Fishing Hot Spots Chart.
- Supports Navionics, C-MAP and other regional charting options
- NMEA2000 networking for VHF, engine, tanks, and heading sensor integration
Specifications
- Display Size: 7.0" Optically Bonded LCD
- Display Resolution: 800 x 480 WVGA
- Display Type: Non-Touch
- Brightness: 1,500 nits
- Viewing Angle: Top 50° / Bottom 60° / Left 70° / Right 70°
- Overall Dimensions: 240 x 135 62mm
- W x H x D: (9.5 x 5.3 x 2.4 inches)
- Product Weight (lbs): 3.0
- Water Ingress Protection: IPx6 and IPx7
- Operating Temperature Range: -25°C to 55°C (-13°F to 131°F)
- Storage temperature range: -30°C to 70°C (-22°F to 158°F)
- Voltage: 12V DC (8V to 16V DC)
- Power Consumption (max 12V DC): 15 Watts
- GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS- 10Hz
- Sonar Type (Built-in): Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision 3D (Standard and Hyper)
- Sonar Connection: 15 pin HyperVision type connector
- Ethernet: N/A
- NMEA0183: N/A
- NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
- SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400mm
- USB: N/A
- Wi-Fi: WiFi - 802.11 b / g / n
- BlueTooth: Bluetooth 4.0 Low Energy Power Class 1.5
- Cartography: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX, and compatible with all charts listed on Raymarine Chart Store.
- Tides & Currents: Requires LightHouse LNC2, Navionics or C-MAP
- Waypoint / Routes / Tracks: 0,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
- Internal Memory: 8GB Solid State
- External Memory: 1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
