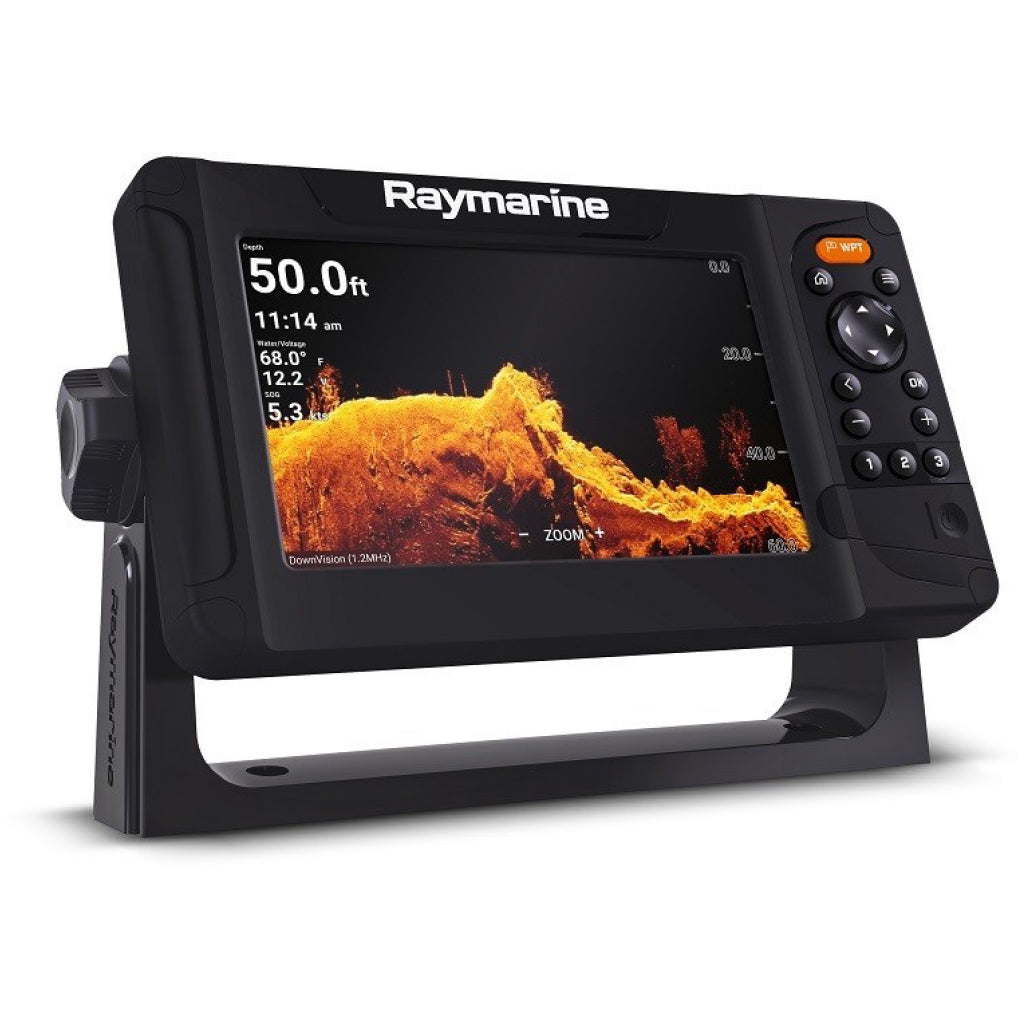

Boost your fishing game with the Raymarine Element 7HV T/M Ducer & Lighthouse Chart. Featuring HyperVision 1.2 MHz high-res sonar, this device provides unparalleled underwater clarity. With DownVision, SideVision, and RealVision 3D, it ensures precision imaging and fish spotting. A quick quad-core processor ensures speedy chart updates and smooth 3D visuals. Easy keypad controls and an angler-focused interface mean less time navigating menus and more time catching fish. Mark top spots effortlessly with a dedicated waypoint key, and create custom depth maps on the fly with RealBathy.

• High-visibility sunlight viewable 7" display
• Superior HyperVision CHIRP sonar technology achieves 3x the clarity of conventional side and down imaging sonars
• Built-in RealVision 3D sonar gives you the power to accurately identify the location of ledges, channel beds, and other contour changes
• Fast quad-core processor allows instantaneous chart re-draw and continuous 3D rending while running a simple, easy-to-learn user interface.
• 1.2 megahertz HyperVision sonar provides outstanding resolution up to 100’ while 350kHz Down and SideVision delivers photo-like imaging up to 600’
• Take 3D sonar to the next level with HyperVision mode for unprecedented resolution and positional awareness
• Dedicated keypad controls for simple operation, plus an oversized waypoint key for marking favorite spots
• Raymarine RealBathy personal sonar mapping and Navionics SonarCharts Live support
• User-programmable keys allow quick access to most-used configurations
• Comes with Raymarine LightHouse NC2 with Fishing Hot Spots Chart.
• Supports Navionics, C-MAP and other regional charting options
• NMEA2000 networking for VHF, engine, tanks, and heading sensor integration

Specifications

• Display Size: 7.0" Optically Bonded LCD
• Display Resolution: 1280 x 800 WXGA
• Display Type: Non-Touch
• Brightness: 1,500 nits
• Viewing Angle: Top 50° / Bottom 60° / Left 70° / Right 70°
• Overall Dimensions: 240 x 135 62mm
• W x H x D: (9.5 x 5.3 x 2.4 inches)
• Product Weight (lbs): 3.0
• Water Ingress Protection: IPx6 and IPx7
• Operating Temperature Range: -25°C to 55°C (-13°F to 131°F)
• Storage temperature range: -30°C to 70°C (-22°F to 158°F)
• Voltage: 12V DC (8V to 16V DC)
• Power Consumption (max 12V DC): 15 Watts
• GNSS / GPS: Built-in GNSS Receiver: GPS/GLONASS- 10Hz
• Sonar Type (Built-in): Built-in CHIRP Sonar, DownVision (Standard and Hyper), SideVision (Standard and Hyper), RealVision 3D (Standard and Hyper)
• Sonar Connection: 15 pin HyperVision type connector
• Ethernet: N/A
• NMEA0183: N/A
• NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
• SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400mm
• USB: N/A
• Wi-Fi: WiFi - 802.11 b / g / n
• BlueTooth: Bluetooth 4.0 Low Energy Power Class 1.5
• Cartography: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX, and compatible with all charts listed on Raymarine Chart Store.
• Tides & Currents: Requires LightHouse LNC2, Navionics or C-MAP
• Waypoint / Routes / Tracks: 10,000 wpts / 200 wpt groups / 150 rts - 250 wpt max / 16 tracks - 10,000 max trk pts
• Internal Memory: 8GB Solid State
• External Memory: 1 x microSD slots (rear) - microSDHC max 32GB NTFS or FAT32 format / microSDXC max 2TB NTFS or FAT32 format (microSD native format of exFAT must be reformatted to NTFS or FAT32)
