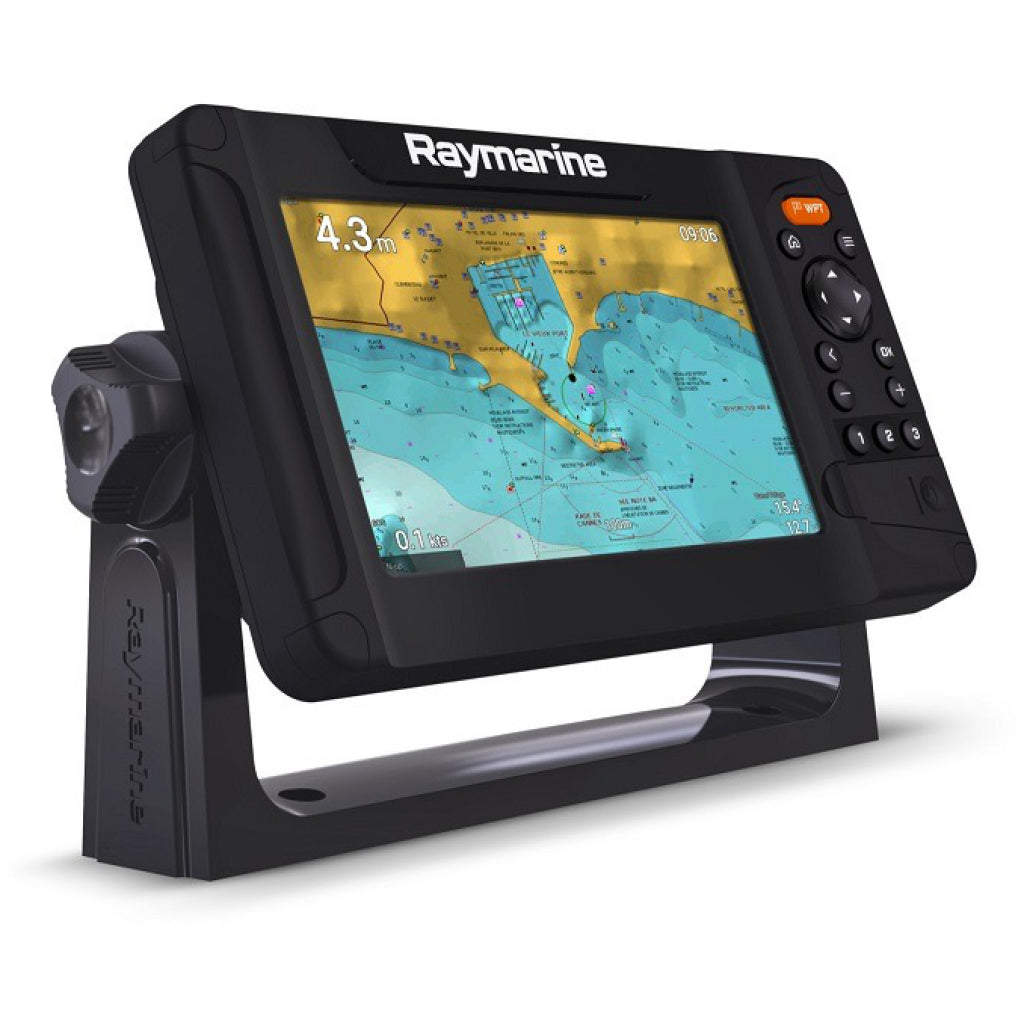

Navigate the open seas effortlessly with the Raymarine Element 7S equipped with Lighthouse Charts. Powered by a quick quad-core processor and an ultra-reliable 10Hz GPS/GNSS, this device is your go-to for precise and straightforward marine guidance. Enjoy vibrant, sunlight-readable displays and a user-friendly LightHouse Sport OS. With add-ons like AIS target overlays and autopilot integration, the Element 7S ensures you're always on the right course.
- Support for Raymarine LightHouse charts, Navionics, and C-MAP
- Safely navigate busy waterways with an optional Quantum wireless radar and AIS receiver
- Built-in High CHIRP sonar for depth and bottom contour imaging
- Map uncharted areas with Raymarine RealBathy personal sonar mapping
- Connect with NMEA2000 compatible AIS, autopilot, sailing instruments, engines, tanks, and VHF
- From sailing to power cruising to fi shing, the LightHouse Sport OS is easy to customize to your type of boating
- An oversized waypoint key for quick and easy marking of your favorite locations
- Three user-programmable quick keys to access your favorite pages with one button push
- Live menus let you customize charts while seeing the navigation display change in real time
- Category-leading quad-core processor delivers fast chart redraw and responsive performance
- Fast and accurate 10hz GPS/GNSS sensor
- Rugged design and backed by Raymarine’s three-year warranty (product registration required)
Specifications
- Display Size: 7.0"" Optically Bonded LCD
- Display Resolution: 800 x 480 WVGA
- W x H x D (mm): (9.5 x 5.3 x 2.4 inches)
- Product Weight (lbs): 3.0
- Voltage: 12V DC (8V to 16V DC)
- Power Consumption (max 12V DC): 15 Watts
- GNSS / GPS: Built-in GPS/GLONASS
- Sonar Type (Built-in): Single channel High CHIRP Sonar with 9 pin connector. Supports CPT-S transom and thru-hull transducers
- Sonar Depth: CHIRP Sonar 274m (900 feet)
- Radar: Quantum wireless CHIRP compatible Wi-Fi only connection
- Doppler Radar: N/A
- MARPA: N/A
- NMEA2000: 1 x NMEA2000 port (DeviceNet microC)
- Supported NMEA2000 Networking: INPUT: NMEA2000 Compatible Engines (Max 2) - NMEA2000 Compatible Tank Sensors (Max 4) - Heading Sensor (for Chart Stabilization)
- SeaTalkng: Requires A06045 DeviceNet female (F) adapter cable - 400mm
- Wi-Fi: WiFi - 802.11 b / g / n
- Cartography: Raymarine LightHouse NC2, Navionics, C-MAP Essentials, C-MAP 4D MAX, and compatible with all charts listed on Raymarine Chart Store.
- Tides & Currents: Requires LightHouse LNC2, Navionics or C-MAP
- Sonar Mapping: Raymarine RealBathy and Navionics SonarChart Lice
- Waypoint / Routes / Tracks: 5,000 wpts / 200 wpt groups / 50 rts - 250 wpt max / 15 tracks - 10,000 max trk pts
- External Memory: 1 x microSD slots
- Dimensions: 240 x 135 62mm
