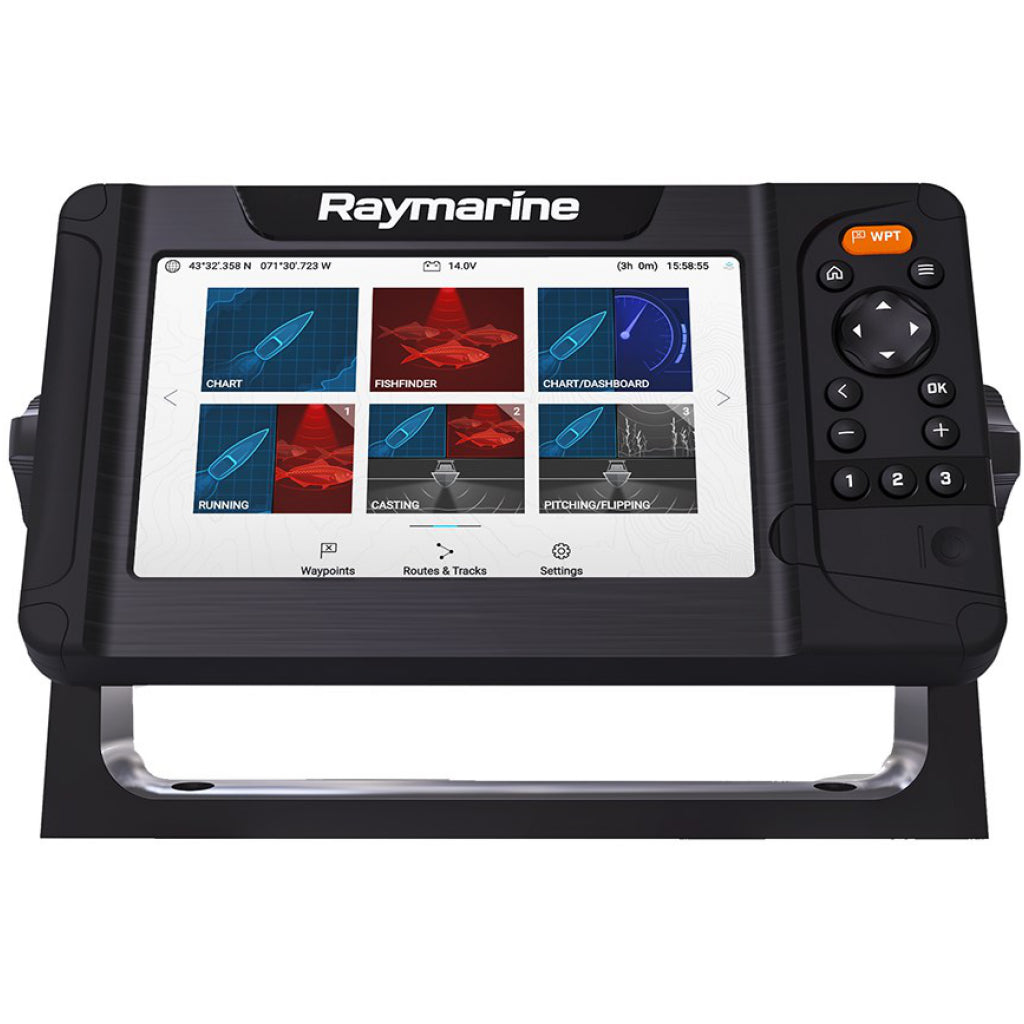

Raymarine Element CHIRP Sonar/GPS

$1,234.99
SKU: E70534-00-NAG

With Navionics Gold

Knowledge is power—and the Element™ CHIRP Sonar / GPS series from Raymarine gives you the upper hand when hunting for fish and their habitat.

Delivering the sharpest view of the underwater world, Element’s HyperVision™ 1.2 megahertz sonar technology, turns up the resolution of DownVision, SideVision, and RealVision 3D to a new level of precision imaging and fish identification, letting you see structures, vegetation, and fish with amazing life-like clarity.

Bright and Rugged

Sunlight viewable displays with integrated GPS/GNSS receiver.

Superior HyperVision

1.2 megahertz CHIRP sonar technology delivers much higher resolution imaging compared to conventional side and down scanning sonars.

RealVision™ 3D Built-In

Accurately identify the location of ledges, channel beds, and other contour changes.

Fast Quad-Core Processor

For instantaneous chart re-draw and sharp 3D imaging.

All-in-one Transducer

Combines HyperVision, DownVision, SideVision, RealVision, and conventional CHIRP sonar channels into one simple installation.

  • Display Size: 9.0" Optically Bonded LCD
  • Display Resolution: 800 x 480 WVGA
  • Display Type: Non Touch
  • Brightness: 1,500 nits
  • Viewing Angle: Top 50° / Bottom 60° / Left 70° / Right 70°
  • Overall Dimensions W x H x D: 287 x 161 x 62mm (11.3 x 6.3 x 2.4 inches)
  • Product Weight (lbs): 5.0
  • Water Ingress Protection: IPx6 and IPx7
  • Operating Temperature Range: -25°C to + 55°C (-13°F to 131°F)
  • Storage temperature range: -30°C to +70°C (-22°F to 158°F)
