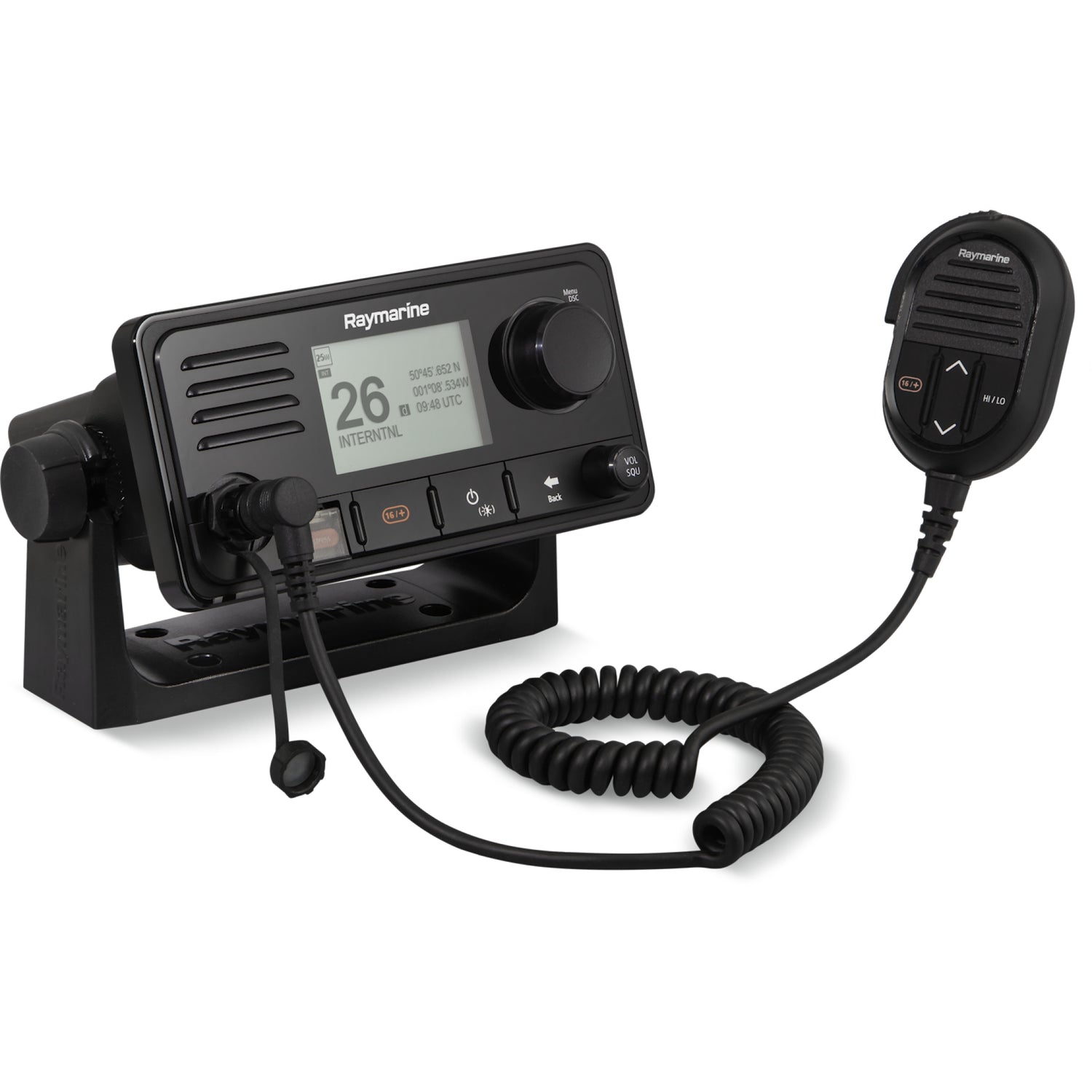

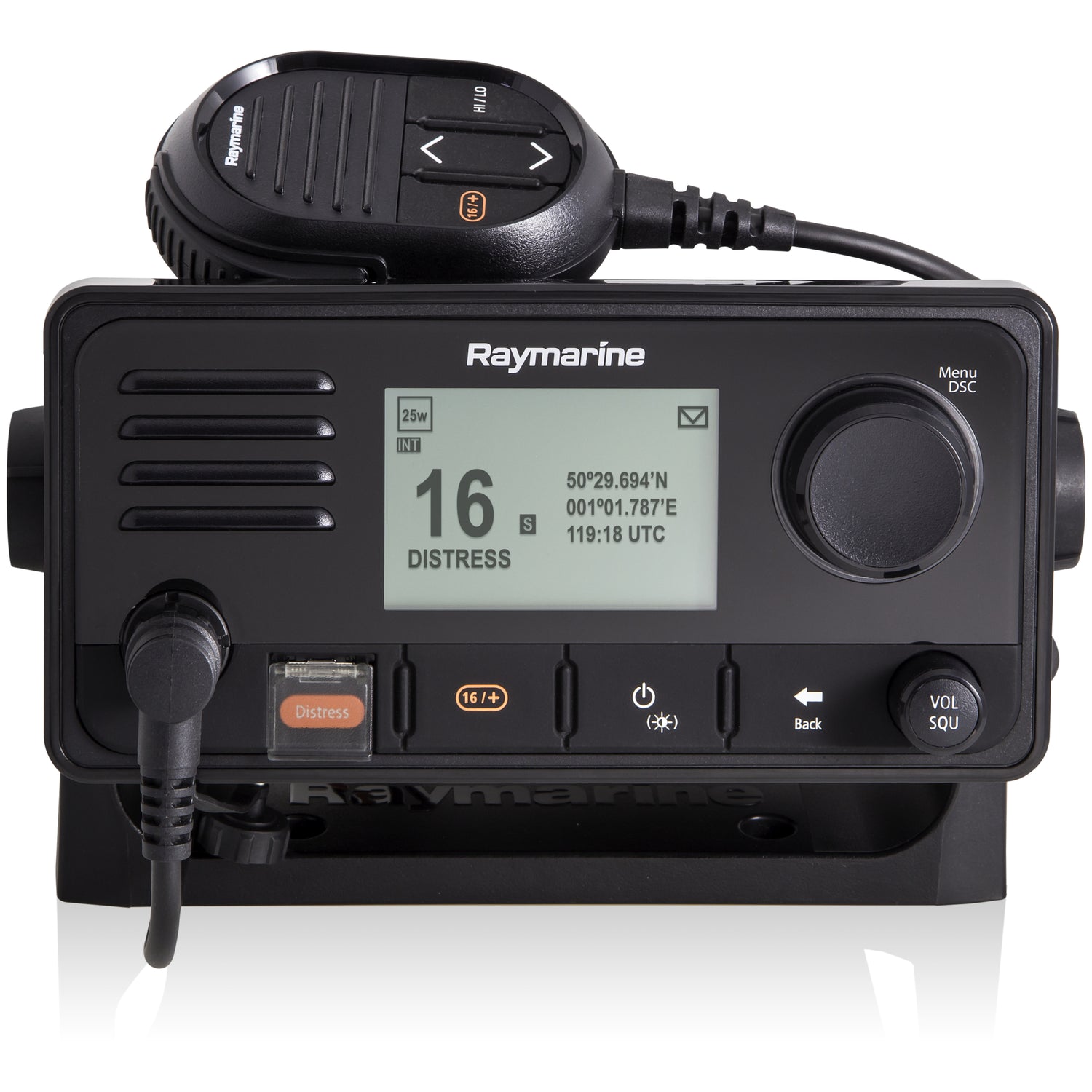

Raymarine Ray63 VHF Radio

SKU: E70516
$84699

Step up your marine communications with the Raymarine Ray63 VHF Radio. Offering both intercom features and support for multiple stations through wired and wireless RayMic controllers, it's a dual-station VHF integrated with GPS. The Ray63 sports a user-friendly interface with large controls and screen, ideal for fuss-free operation at sea. Equipped with Class D Digital Selective Calling (DSC) and an in-built GPS receiver, it accommodates either one wired or two wireless RayMic controllers for versatile multi-station use and intercom functions.

  • Marine VHF with Digital Selective Calling
  • Wired or wireless expansion with optional RayMic handset stations
  • Built-in GPS/GNSS receiver with connection point for optional external antenna
  • NMEA2000 and NMEA0183 networking for integration with onboard systems
  • Audio output connection for optional passive remote speaker (A80542)
  • Surface and trunnion mount kits included
  • Styled to compliment the Axiom family of multifunction displays

Specifications

  • Nominal supply voltage: 12V DC (Reverse polarity and over voltage protection)
  • Operating voltage range:9V DC to 16 V DC
  • Current consumption: Less than 6 A at high power (13.6 V)
  • Standby: 600mA
  • Receive: 2A
  • Channels: All available US, International and Canadian VHF marine bands
  • Frequency Range: 156.000 MHz to 157.425 MHz / 155.500 MHz to 161.425 MHz (Private channels)
  • Frequency stability: /- 1.5 ppm
  • Channel Spacing: 25 kHz
  • Power Output: Low power setting — 1 W, High power setting — 25 W
  • Spurious emissions: Better than –36 dBm at 25 W (Less than 0.25 W)
  • Maximum deviation: /- 5 kHz
  • Antenna impedance: 50 Ohms (typical)
  • Receiver type: Double conversion super heterodyne
  • Channels: All available US, International and Canadian VHF marine bands
  • Frequency range: 156.050 MHz to 163.275 MHz / 155.500 MHz to 161.425 MHz (Private channels)
  • Sensitivity: Better than 1 microvolt EMF 20dB SINAD
  • Squelch sensitivity: Less than —2 dB EMF
  • Hum and noise: Better than –40 dB
  • Audio distortion: Less than 10%
  • Receiver sensitivity: Distance — 119dBm (0.25uV) 12dB SINAD (typical), Local — 110dBm (0.7uV) 12dB SINAD (typical)
  • Adjacent channel selectivity: More than 70 dBSpurious response rejection:
  • More than 70 dBInter modulation rejection:
  • More than 68 dB
