Item Number: 03-30

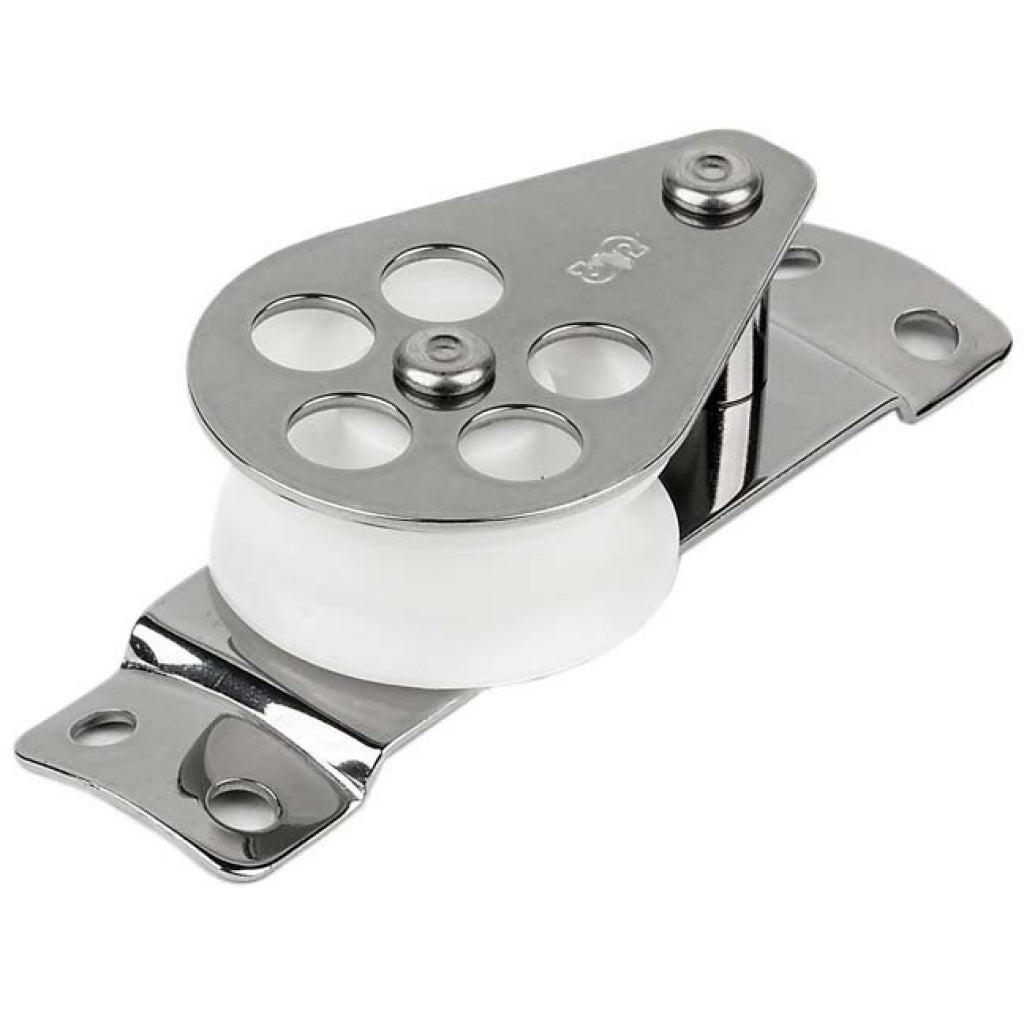

Schaefer Curved Cheek Block usually available 2-5 business days upon ordering.

Features:

  • Stainless Steel cheek block with a curved base.
  • Fits spar diameters up to 2".
  • Delrin˜ plain bearing sheave ensures a high safe working load and is good for static loads.

Specifications:

  • Sheave Diameter: 1-7/16" (37 mm)
  • Maximum Line: 7/16" (11 m)
  • Length: 3-11/16" (949 mm)
  • Weight: 1" (25 mm)
  • Height: 3/4" (19 mm)
  • Fasteners: (4) 10 RH (5 mm)
  • Center to Center: 3-3/16" (94 mm)
  • Safe Working Load: 1,000 lbs. (450 kg)
  • Weight: 2.2 oz. (62 g)
